 Pilot Supplies - Flashlights

XeVISION PERSONAL
LED FLASHLIGHS

The compact LED flashlights are so small that they fit in the palm of a hand comfortably. They are so bright, even die-hard HID Xenon lighting technology purists can not resist.
Super-bright white light from one small
but powerful LED

Our LED flashlights feature the latest commercial Cree LED 7090 XR-E, which delivers unprecedented levels of bright white light. The legendary 7090 XR-E is tested to the highest standards in the LED industry. The white light generated is as cool as HID with around 4000şK to 5000şK. The current draw is quite small while the LED is very efficient with a luminous flux of up to 100 lm min. @ 350 mA, and a luminous efficacy up to 75 lumens/watt.
click to enlarge
XeVision personal LED flashlight models
The compact LED flashlights are so small that they fit in the palm of a hand comfortably. They are so bright, even die-hard HID Xenon lighting technology purists can not resist.
click to enlarge
Features common to all models:
• Cree 7090 XR-E LED with a life of 50,000 hours
•
Two modes (6 types) of output, selected by turning the bezel:
•
Reliable twist switch (general / turbo mode)
•
Push-button tail cap switch
•
General Mode: Three levels & SOS (see model specific output levels)
•
Turbo Mode: Turbo level & Strobe, (see specific output under model)
•
Digitally regulated for constant brightness
•
Machined aircraft grade aluminum 6061-T6
•
Durable Type III hard anodized finish
• Water and dust resistant, rated to IP67
• Toughened ultra clear glass lens with AR (anti reflective) coating
• Capable of standing up securely on a flat surface (candle position)
• Includes holster, lanyard; two spare O-rings, one switch rubber boot
• Includes one set suitable quality batteries
• Colors available: Black or signature series iridium finish
Model and Color
Description

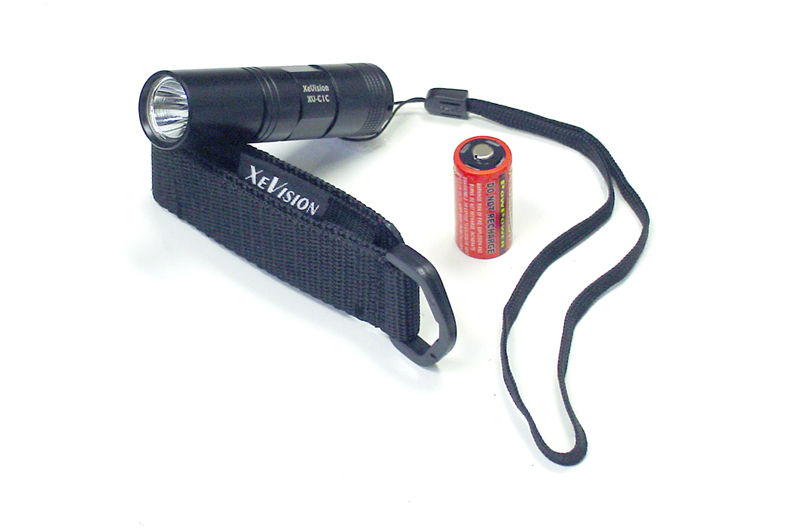

XV-C1C
Color: blackXV-C1C High Performance Cree LED flashlight

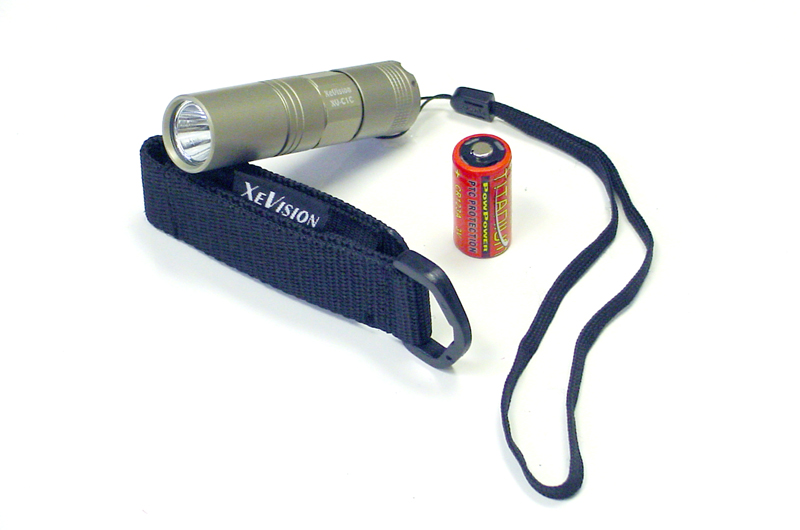

XV-C1C
Color: Iridium
XV-C1C High Performance Cree LED flashlight

The XV-C1C is their most compact LED flashlight using one long-lasting 3 VDC Lithium CR123A battery. The XV-C1C features six settings, 4 of them being output levels. This flexibility not only allows the user to select the best compromise between brightness and runtime for any given task but also has the ability to aid in an emergency. The XV-C1C offers a remarkably compact size and is extremely solid and reliable with its digitally regulated brightness. One 3 VDC CR123A Lithium battery

Dimensions:
General Mode: see brightness levels
9 lumens (30 hrs) -> 40 lumens (5.5 hrs) ->
80 lumens (2 hrs) -> SOS
Turbo Mode: 135 lumens (1.0 hr) -> Strobe
Switching between modes:
Rotate head of flashlihgt a small
amount from the stop, click here to see
Dimensions:
3.16 in. (8 cm) length x .83 in.
(2.1 cm) diameter
Weight: including batteries: 2 oz. (57 gr)

MODEL XV-C1C (Black)
PN 13-05144 $84.95
MODEL XV-C1C (Iridium)
PN 13-05147 $86.75


Model and Color
Description
XV-C2C
Color: black
XV-C2C High Performance Cree LED flashlight

XV-C2C
Color: Iridium
XV-C2C High Performance Cree LED flashlight

The XV-C2C features six settings, 4 of them being output levels. This flexibility not only allows the user to select the best compromise between brightness and runtime for any given task but also has the ability to aid in an emergency. The XV-C2C offers a remarkably compact size and is extremely solid and reliable with its digitally regulated brightness. Two 3 VDC CR123A batteries (Lithium), not rechargeable.

Dimensions:
General Mode:see brightness levels
9 -> 40 lumens (13 hrs) ->
90 lumens (4.8 hrs) -> SOS
Turbo Mode:
160 lumens (1.8 hrs) -> Strobe
Switching between modes:
Rotate head of flashlihgt a small
amount from the stop, click here to see
Low battery indication
Dimensions:
4.49 in. (11.4 cm) length x .83 in.
(2.1 cm) diameter
Weight: including batteries: 3 oz. (85 gr)

MODEL XV-C2C (Black)
PN 13-05145 $87.95
MODEL XV-C2C (Iridium)
PN 13-05148 $89.95


Model and Color
Description
XV-C2A
Color: blackXV-C2A High Performance Cree LED flashlightrformance Cree LED flashlight

XV-C2A
Color: IridiumXV-C2A, High Performance Cree LED flashlight

The XV-C2A features six settings, 4 of them being output levels. This flexibility not only allows the user to select the best compromise between brightness and runtime for any given task but also has the ability to aid in an emergency. The XV-C2A offers a compact size and is extremely solid and reliable with its digitally regulated brightness. Two 1.5 VDC AA (Alkaline, Lithium) or 1.2 V NiMH batteries

Dimensions:
General Mode:see brightness levels
9 lumens (55 hrs) -> 40 lumens (10.5 hrs) ->
80 lumens (4 hrs) -> SOS
Turbo Mode:
135 lumens (2.4 hrs) -> Strobe
Switching between modes:
Rotate head of flashlihgt a small
amount from the stop, click here to see
Dimensions:
5.8 in. (14.7 cm) length x .83 in. (2.1 cm) diameter
Weight:
including batteries: 3 oz. (85 gr) with Lithium 1 use batteries, 4 oz. (113 gr) with rechargeable NiM

MODEL XV-C2A (Black)
PN 13-05146 $87.95
MODEL XV-C2A (Iridium)
PN 13-05149 $89.95


Accessory
Description
WF-138C
Charger for XeVision XV-C2C flashlight only

Charger for a single or pair of over-discharge protected R-CR123A rechargeable Li-Ion cells.

Comes with a pair of high capacity R-CR123A cells (750 mAh).

WF-138C Charger & Battery
PN 13-05141 $47.95

WF-138
Charger only

This is a replacement unit – just the charger - for the WF-123 combo package

WF-138 Charger only
PN 13-05140 $21.95

ICR123
Rechargeable Lithium Batteries
XV-C2A High Performance Cree LED flashlightrformance Cree LED flashlight

These ICR123 rechargeable 3 V 750 mA batteries are primarily used for the XV-C2V LED flashlight as a replacement for the dual pack Titanium battery CR123AX2.

Note that the standard CR123A batteries must not be recharged!

ICR123 Rechargeable Lithium Batteries
PN 13-05139 $25.95

CR123A
Single Cell Lithium Technology
XV-C2A High Performance Cree LED flashlightrformance Cree LED flashlight

One Titanium 3 V CR123A battery. Used for the XV-C1C LED flashlight.

Every Titanium CR123A battery incorporates PTC protection and the PTC threshold is set at 5 A. The protected Titanium CR123A batteries prevent excessive discharge that can damage lithium cells and may lead to catastrophic incidents.

CR123A Single Cell Lithium Battery
PN 13-05142 $1.95

CR123AX2
Twin Cell Lithium Batteries
XV-C2A High Performance Cree LED flashlightrformance Cree LED flashlight

Two Titanium CR123A batteries are carefully matched and form one single sealed unit, 3 V but double capacity). Used for the XV-C2C LED flashlight.

Every Titanium CR123A battery incorporates PTC protection and the PTC threshold is set at 5 A. The protected Titanium CR123A batteries prevent excessive discharge that can damage lithium cells and may lead to catastrophic incidents.

CR123AX2 Twin Cell Lithium Batteries
PN 13-05143 $3.95
