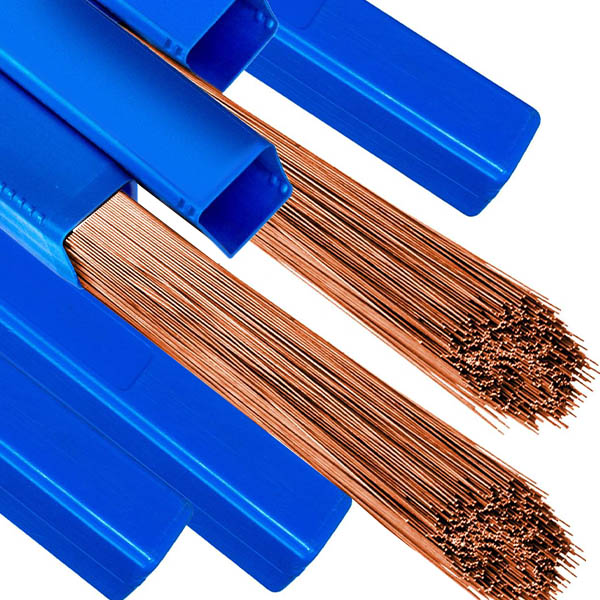

MILD STEEL ALLOY ER70S-2
1/16 TIG FILLER MATERIAL


(Click image for a larger view)

ER70S-2 is multiple de-oxidized Plain Carbon Steel that has additions of Zirconium, Titanium, and Aluminum in addition to the high levels of Manganese and Silicon common to plain Carbon Steels of this group. The ability of this wire to perform well over oily, dirty, or rusty surfaces is one of its key features.
ER70S-2 has a quick freezing weld pool with a somewhat tight molten range, which makes it an ideal choice for welding tubing, piping, and out-of-positon applications. The deposits have high ductility, excellent impact values and tensile strength.
ER70S-2 is often used on AISI 4130 tubing where lower tensile strengths are acceptable or where reinforcing gussets are used in the design.This wire is often used with TIG and Plasma for critical applications.

36" Cut lengths are packaged in 1lb.


  • 1/16" x 36"
  • Tensile strength: 83,000 psi (specs call for 70,0000 minimum).
  • Elongation is 25%.
  • This wire is often used with TIG and Plasma for critical applications.
Description Part No. Price Buy
TIG FILLER ER70S-2 .06212-00479$10.90
Similar Items Part No. Price Buy
TIG FILLER ER70S-2 .03512-00477$13.60
TIG FILLER ER70S-2 .04512-00478$12.85
TIG FILLER ER80S-D2 .03512-00473$13.40
TIG FILLER ER80S-D2 .04512-00474$11.80
TIG FILLER ER80S-D2 .06212-00475$9.90
TIG FILLER ER308L .03512-00487$28.65
TIG FILLER ER308L .04512-00488$25.50
TIG FILLER ER312 .03512-00484$36.40
TIG FILLER ER312 .04512-00485$31.40
TIG FILLER ER312 .06212-00486$22.75
TIG FILLER ER4043 .04512-00480$24.20
TIG FILLER ER4043 .06212-00481$15.50
TIG FILLER ER5356 .04512-00482$26.40
TIG FILLER ER5356 .06212-00483$13.50
TIG FILLER NICKEL 625 .03512-00490$118.75
TIG FILLER NICKEL 625 .04512-00491$138.95
