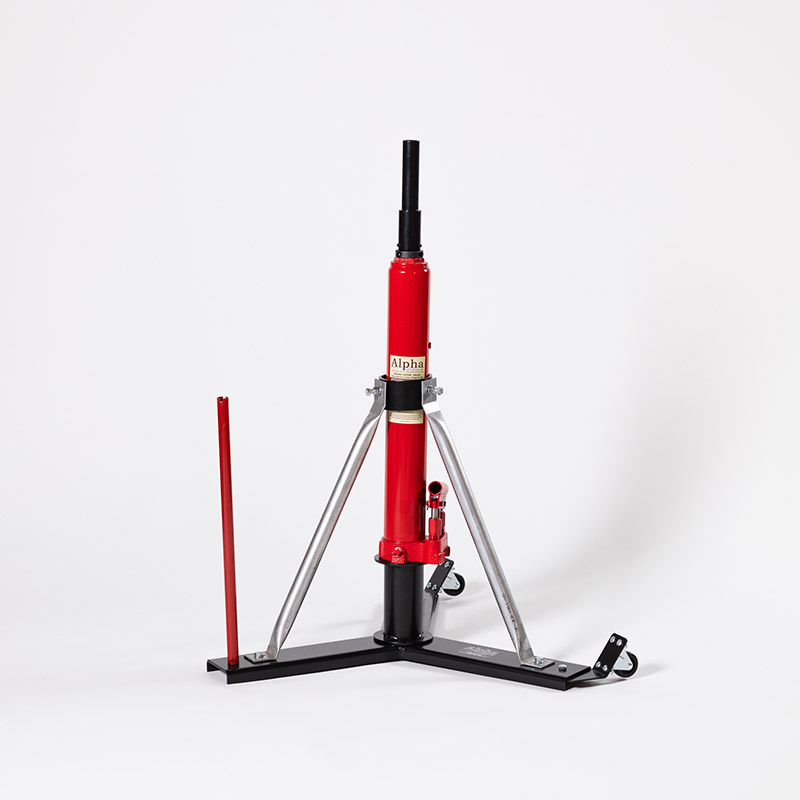

(Click image for a larger view) | MODEL #838W When the need is for a versatile aircraft jack that can accommodate the needs of a busy FBO, the Model #838W is the choice.
Model #838W provides all the strength and versatility needed to accommodate larger aircraft. This unique design allows
the Model #838W to easily convert from a 26" low wing aircraft jack to a 32" or 38" aircraft jack, avoiding the high cost
of having to purchase model specific jacks. Now with "Tilt & Go" wheels and convenient handle storage for greater value.
Application Chart
NOT RECOMMENDED FOR:
Beech Model 99, Beech 1900, Citation Series,
Cheyenne I/II/III/IV, Conquest, King Air, Navajo,
Pilatus, Queenaire, T28.
Effective Ranges:
26"-43", 32"-49", & 38"-55"
Ram Capacity 16,000 lbs
•Highly Versatile - shipped with adapters for 26", 32" & 38" heights
•Jack Point Centering Cap to Assure the Aircraft Stays on the Jack
•Double Action 3 Ton (6,000 lb) Hydraulic Cylinder
•Locking Safety Collar Secures the Load
•Rugged Heavy Gauge Steel Construction
•Stable Three Leg Design Clears the Gear Doors
•"Tilt & Go" Wheels for Greater Mobility
|
