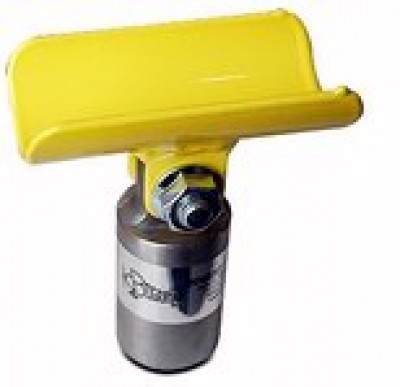

Jack Pads P/N 12-00679
$62.75
|
 Jack
pads provide a cradle for the main landing gear legs. The cradle design
securely holds the landing gear providing a safe jack point. The adjustable
jack pad fits flat spring gear. The round gear jack pad fits the models
listed below. |
- Simplify the worrisome, and at
times, dangerous chore of jacking up an aircraft
- Save time when servicing tires,
wheel bearings and brakes.
- Designed by an A&P for other professionals
& do-it-yourselfers.
- Lift only the wheel instead of
the whole aircraft.
- Eliminate the unsafe practice of
stacking wood blocks under a bottle jack.
- All parts pack away neatly into
a sturdy weather resistant toolbox.
- Made in USA
|
|
 Model ADJ-R
Half round design cradles
the gear. Pivots on a machined bottle jack extension. Use with Cessna
C-172RG, 177RG, 182RG, 210, T210, P210, and similar landing gear
|
|
JACK ENTENSIONS
Jack Extension 1.5" $19.30
Jack Extension 3" $19.25
Jack Extension 8" $21.90
Much safer than stacking
wood blocks under a bottle jack. |
| |
•
Bottle Jack Extensions will fit
any 1-1/4" O.D. ram.
•
Typical 6 ton jack has a 1-1/4" O.D. ram.
• Extensions are machined & slide together for easy stacking. |
Jack
is not included. |
| •
Use on aircraft with a jack point pin. |
| •
Not the same extensions as found in the Aero Jack Kit below. |
| •
No special jack pad needed on |
| |
tubular
C-152, 172, 182 etc. |
|
 |
| Shown
above accepting the jack point in the machined top. |
|
Aero Jack"Grab and Go" Professional Series |
| The extensions in the Aero Jack Series are machined from
cold rolled steel for durability, and work with the special hydraulic jack
designed for these extensions. Extensions are available in lengths of 1
1/4", 2", and 4", giving a total of 7 1/4" extension. They are not the same
as the JE-series. The hydraulic jack will stand up to repeated shop use.
Jack pads are the same in both series. The carry toolbox makes it easy to
service a plane on the ramp. *Toolbox may change due to availability. Quality
will not be compromised. |
|
|
| Aero
Jack Flat Gear Kit |
Model
30-AJF P/N 12-00681
$184.95
|
• ADJ-F
Flat Jack Pad for spring gear adjustable from 3" to 6-1/2" • Stackable
Machined Jack Extensions
• Fixed jack point jack pad.
•
6 ton Hydraulic Jack
• Toolbox holds everything secure.
|
| Use
with Cessna C-120, 140, 150, 170, 172, 175, 180, 188, 182, 190, 195, 205,
206, 336, 337, flat gear 177RG, Piper Tomahawk, Beech Skipper, Champion,
Bellanca, and similar landing gear. |
|
| Aero
Jack Round Gear Kit |
Model
30-AJR P/N 12-00682
$182.95
|
- ADJ-R Round Jack Pad for round
or tubular gear listed. Stackable
Machined Jack Extensions. Fixed
jack point jack pad. 6 ton
Hydraulic Jack.
- Toolbox holds everything secure.
|
| Use
with Cessna C-172RG, 177RG, 182RG, 210, T210, P210, and similar landing
gear. |
