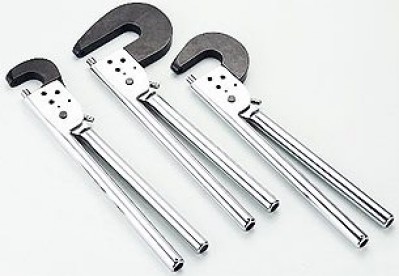

HAND RIVET SQUEEZER

Designed to squeeze 1/16" - 5/32" rivets and dimple 1/16" - 3/16" in material up to .040" thickness. Takes standard 3/16" shank rivet squeezer sets. With adjustable ram and 2-piece C-yoke of heat treated 4130 steel. Throat depth: 1.25". Gap: 1-1/4". Overall length: 14". Best quality squeezer on the market. P/N 12-00300 $131.95 YOKES FOR RIVET SQUEEZER Reach Part No. Price Buy 1-1/4" X 1" 12-00308 $51.75 1-1/4" X 1-1/2" 12-00309 $51.75 1-1/4" X 2" 12-00310 $63.75 2" X 2" 12-00315 $77.65 1-1/4" X 2-1/2" 12-00318 $69.90 1-1/4" X 3" 12-00320 $77.65 1-1/4" X 3-1/2" 12-00321 $93.75 1-1/4" X 4" 12-00322 $106.95 1-1/4" X 5" 12-00323 $142.95 1-1/4" X 6" 12-00324 $166.95 SWIVEL HAND RIVET SQUEEZER Model AT502AH-D P/N 12-00400 $230.95 This tool incorporates a 3/8" stroke and 5/8" ram adjustment. The full 360° yoke can be locked in any position in relation to the handles. Uses standard squeezer sets with 3/16" shank diameter. Yoke depth: 1-1/2". INSTRUCTIONS FOR SELECTING RIVET SETS To develop maximum power, the riveter must drive the rivet near the end of the riveter's stroke. For maximum power the combined length of the two rivet sets must be of the correct length. Determine the correct length as follows: WHEN TWO CUPPED RIVET SETS ARE USED The sum of the two rivet sets "L" dimension should equal the closed height dimension of the yoke minus the total thickness of the material being used. WHEN TWO FLUSH SETS ARE USED The sum of the two rivet sets "L" dimension should equal the closed height dimension of the yoke minus the overall length of the rivet after it is driven. WHEN ONE CUPPED SET & ONE FLUSH SET ARE USED The sum of the two rivet sets "L" dimension should equal the closed height dimension of the yoke minus the total thickness of the material being riveted and the height of the finished rivet head driven by the flush set. If necessary, select rivet sets a little short and shim to proper length with hardened shims listed in the table. The closed height dimension of the yoke referred to above is the opening available when jaws of plunger are in extreme closed or forward position with both rivet sets in place.
