MDE-2000 MARKSMAN™ ULTRASONIC DIAGNOSTIC TOOL


Features advanced heterodyne circuitry and “sound signature technology” to convert and amplify inaudible ultrasonic sounds into audible “natural” sounds. Provides quick diagnosis and detection of problems before they become major breakdowns!

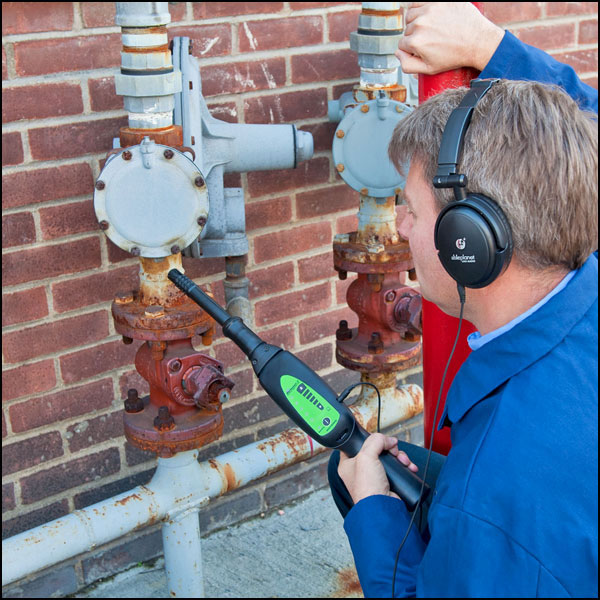

  • Detects compressed air, natural gas, propane tank, vacuum, steam, refrigerant and other pressurized leaks quickly and effortlessly
  • 5-LED signal intensity indicator and audible alarm easily pinpoint the exact problem source
  • Finds gear and bearing wear in internal components and electric motors
  • Internal Noise Control (INC) ensures tool is unaffected by ambient noise. Ideal for use in extremely noisy environments.
  • Self-adjusting Automatic Gain Control (AGC) circuitry enhances sensitivity and simplifies operation
  • Unique emitter helps locate faulty seals, gaskets and weather stripping in doors, windows, ductwork and other non-pressurized enclosures
  • Precision-engineered air/extension probe optimizes versatility
  • Adjustable touch-control sensitivity pad and power switch
  • Model: MDE-2000
  • Sensitivity: Detects leak from a orifice as small as 0.004 in (0.1 mm) at 5.0 psi (34kPa), from a distance of 12 in (30 cm)
  • Weight (w/batteries): 1.5 lb (680 g)
  • Housing: Chemical-resistant ABS
  • Battery life: 165 hours (approx.)
  • Power requirements: Two "D" cell alkaline batteries
  • Frequency response: 36,000 - 44,000 Hz
  • Circuitry: Solid State
  • Headphones: Full size, noise attenuating / Full size, heavy-duty, noise-canceling
Description Part No. Price Buy

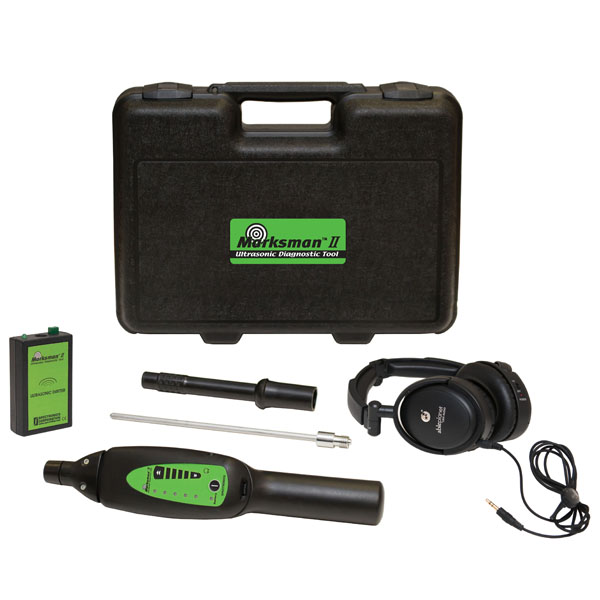

MARSKMAN II ULTRASONIC DIAGNOSTIC TOOL KIT13-11730$590.00
