 MBX Surface Treatment Systems |
Patented Technology: MBX Systems are different from conventional surface treatment systems in that MBX Systems are based on several physical principles. Flexible brush-belts are inserted loosely into a cage-like adaptor system and secured with safety arms. The centrifugal force created by rotation causes the brush-belt to tighten and work as if suspended on a cushion of air. Advantages:Vibration-free operation: The vibration of the wire bristles that occurs when the bristles strike the target surface is absorbed by the air-cushion. The bristles re-strike the target surface at rest (without vibration). This achieves the maximum kinetic energy.
MBX brush-belt technology: MBX Belts consist of individual, U-shaped crimped wire bundles anchored in a polyamide fabric. Made of spring steel, the wires have hardened tips that strike the target surface individually during rotation.
Advantages: High safety level: The U-shaped anchor points of the individual crimped bundles prevent wire bristles from being thrown clear. No heat development: Avoid toxic fumes and no smearing during the removal of sticky materials. No grinding: No removal of healthy material, no deformations. Flexibility: High degree of adaptability when working on contoured areas or areas with sharp edges.Optimal performance: Because of their design, each wire tip strikes the target surface twice per rotation.Long service life: Specially hardened wire tips with a hardness up to 68 HRC (Rockwell hardness) provide for a level of hardness never before achieved with conventional brush technology.
MBX Pneumatic drive unit: Easy handling, lightweight - 1.1 kilograms, high torque, safe to use!Specially developed for the MBX brush-belt and MBX Vinyl Zapper systems. The high output rpm of the compressed-air turbine (21,000 rpm) is reduced to 3,500 rpm by means of a planetary gear and toothed belt; torque increases. This gives our MBX pneumatic drive units an optimised power profile. MBX brush-belts and MBX eraser wheels work as a direct extension to the drive shaft, i.e., there is no lateral centre of gravity and MBX drive units operate in-line. Work in hard-to-reach areas or in the removal of tough, thick, sticky materials (e.g. compounding materials, underbody corrosion) with optimal ventilation.
|
| |
| MBX Pneumatic Power Tool |
|
|
| MBX Electric Power Tool |
|
|
| MBX Accessories |
|
|
Adapter System |
Storage Station |
|
|
| MBX Pneumatic Starter Sets |
For the removal of seam sealant, corrosion, paint,
vinyl decals, glue on aluminum and alloy. |
| |

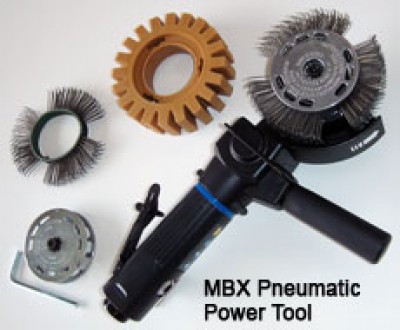

SET 1 P/N 12-01394
MP-3500 - MBX Pneumatic Power Tool S (3500 rpm)
with adapter system for 23mm belts/31mm rubber eraser.
AA-0011 - Adapter for 11mm wire belts
BS-M11X - V2A Wire Belt, Med., 11mm angled tips
BS-F11 - V2A Brush Belt, Fine, 11mm
RE-0023 - Rubber Eraser, 31mm |
| |
SET 2 P/N 12-01395
MP-350C - MBX Pneumatic Power Tool C (3500 rpm)
with noise reduction, air cooling, dust intake, adapter systems for 11mm & 23mm belts/31mm rubber eraser
BS-M11X, BS-F11, RE-0023 |
| |
| MBX Electric Starter Set |
For the removal of seam sealant, corrosion, paint,
vinyl decals, glue on aluminum and alloy. |
| |

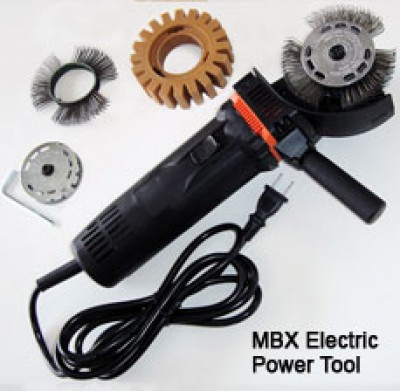

SET P/N 12-01396
ME-3200 - MBX Electric Power Tool A (3200 rpm)
with adapter system for 23mm belts/31mm rubber eraser
AA-0011 - Adapter for 11mm wire belts
BS-M11X - V2A Wire Belt, Med., 11mm angled tips
BS-F11 - V2A Brush Belt, Fine, 11mm
RE-0023 - Rubber Eraser, 31mm |
| |
| MBX Accessories |
| |

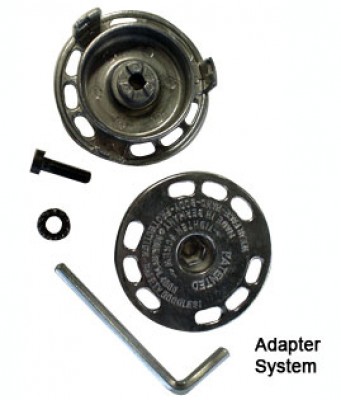

Adapter System P/N 12-01397
Made of high quality die cast aluminium, with safety elements for 11mm Wire Brush Belts. |
| |
Adapter System P/N 12-01398
Made of high quality die cast aluminium, with safety elements for 23mm Brush Belts/31mm Rubber Eraser. |
| |

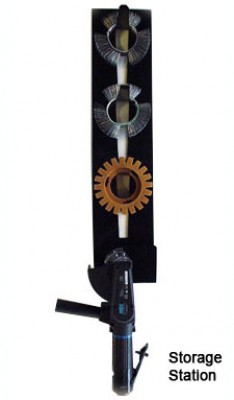

Storage Station P/N 12-01399
For storage of up to 15 wire belts or 9 rubber erasers and one MBX Power Tool (machine, belts, erasers not included). |
| |
Dust Intake P/N 12-01401
For MBX Pneumatic Power Tool (power tool not included). |
|
