Mini Power Panel

$645.00/Each
Quantity
Add to Wishlist
Part# 11-11680

Overview

The Composite Design Mini Power Panel was revised March 2011. This is the first change to this product in 17 years. Changes were made to compliment modern avionics and instrumentation.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

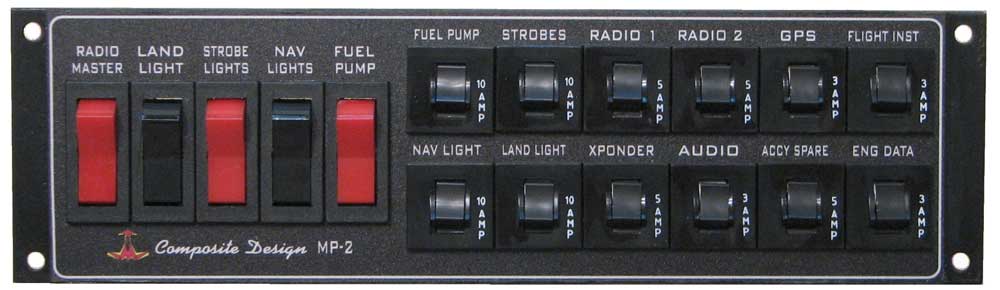

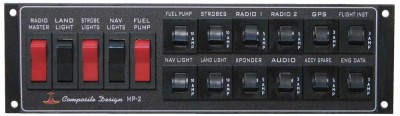

  • Main Panel - 2.375”H x 8.375”W x 6.50”D
  • Side Panel - 2.375”H x 2.50”W
  • Weight: approx. 2.25 pounds
  • Panel Specifications:
    Capacity:17.5V maximum
    Main Buss: 55A continuous
    Radio Buss: 15A continuous
  • Switches:
    Master

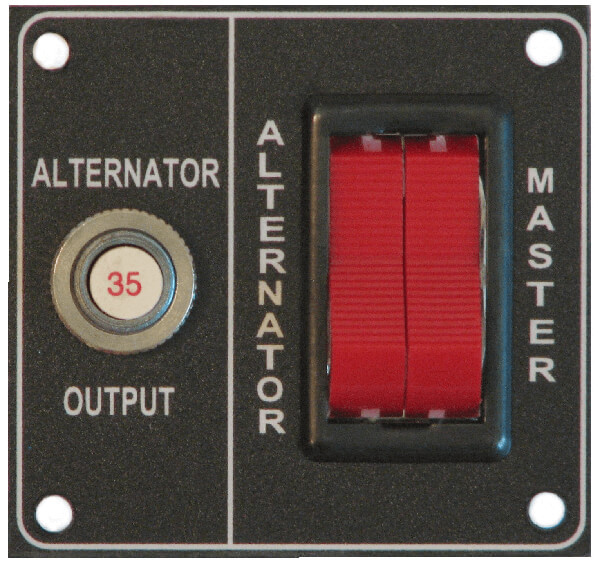

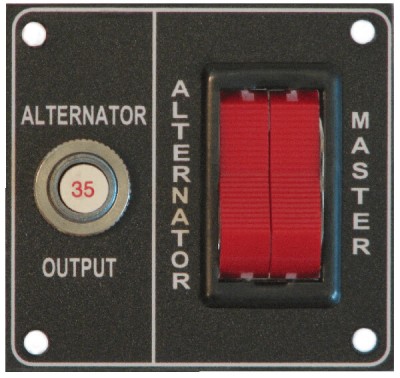

    Alternator Field (on Side Panel)
    Landing Light
    Strobe Lights
    Nav Lights
    Fuel Pump
    Radio Master buss control
  • Circuit Breakers – Main Buss:
    Landing Light
    Strobes
    Nav Lights
    Fuel Pump
    Accy Spare
    Flight Inst
    Engine Data
  • Circuit Breakers – Radio Buss:
    Radio 1
    Radio 2
    Transponder
    GPS
    Audio
  • Circuit Breaker – Side Panel: 30A Alternator Output

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I have a 45 amp alternator in my plane. If change the 35 amp breaker in the panel for a 60 amp breaker. Will this work with the Mini power panel?

Proper sizing of the alternator breaker should be at or less than the rating of the alternator's maximum output. In your case the 35 might suffice if your maximum power draw is 35A or less. Remember that the alternator circuit breaker is there to protect the alternator from the airplane loads - you don't want to over rate this case...

Suggest that you look at a Tyco W23X1A1G40 - Aircraft Spruce catalog# 11-04121. This is a 40A breaker that will do fine for you if the 35A is not enough. Personally, I would use the 35A part. It is probable that it will take care of things for you with out issue.

Q: Is a master solenoid needed with the mini power panel?

Yes, a master solenoid is needed with the mini power panel.

Q: Can the side panel of the mini power panel product be mounted in a stackable configuration?

No, this unit is 8.375"W. The normal panel mount width size is 6.25"W.

Q: Can this be used in certified aircraft?

No, it is intended for use in experimental aircraft only.
