HERBIE CLIP HOSE CLAMPS

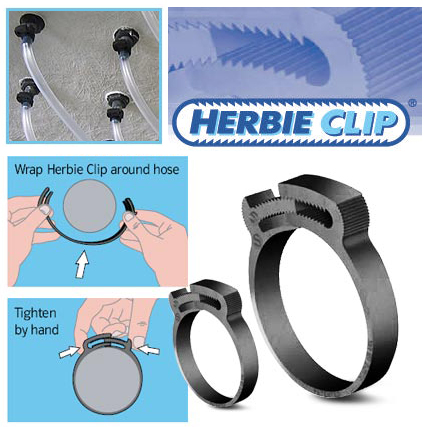

(Click image for a larger view)
See Reference Chart below before ordering.
Select Clip Size:

Part Number:
Price:
Quantity:
The Herbie Clip hose clamp
The Herbie Clip hose clamp is the original double toothed (double row of teeth) ratchet clamp. This makes the Herbie clip twice as strong (up to 200psi depending on hose work and spigot) as similar hose clamps with a single row of teeth.

The Herbie Clip hose clamp combines its high strength with other key features such as: non-corrosive and resistant to many chemicals, simple to install can be fitted before or after the hose is in place, minimum leak path, lightweight, easy to use (no sharp edges to cut the operators), fully compliant with ROHS, UL listed (nylon 6.6.)

Features:
  • Unique double row of interlocking teeth
  • No moving parts - will not seize
  • No rust or corrosion - resistant to many chemicals
  • Increased productivity - quick to install
  • Choice of installation - pre-fit onto hose or wrap around once hose is in place
  • Non-conductive and non-magnetic
  • Nylon 6.6
  • Lightweight and easy to use
  • No sharp edges to cut the operator
  • Strong UV resistance
  • ROHS compliant
  •
    • Reference Chart:
      Clip Size
      Min. dia (in.)
      Max. dia (in.)
      PN
      A
      .22
      .26
      05-02698
      AA
      .26
      .31
      05-02699
      B
      .31
      .36
      05-02701
      BB
      .36
      .41
      05-00940
      C
      .40
      .47
      05-02702
      CC
      .44
      .51
      05-02695
      D
      .47
      .54
      05-02703
      E
      .52
      .59
      05-02704
      F
      .59
      .67
      05-02705
      G
      .67
      .75
      05-02706
      H
      .71
      .81
      05-02696
      J
      .80
      .91
      05-02707
      K
      .87
      .98
      05-02708
      L
      .97
      1.09
      05-00941
    Instruction Video:
    This text will be replaced
    Accessories Part Number Price Buy
    Installation Tool05-02709$169.50
    Removal Tool05-02710$13.75
