| SCOTT MODEL 3200 TAILWHEEL PARTS |
|
| |

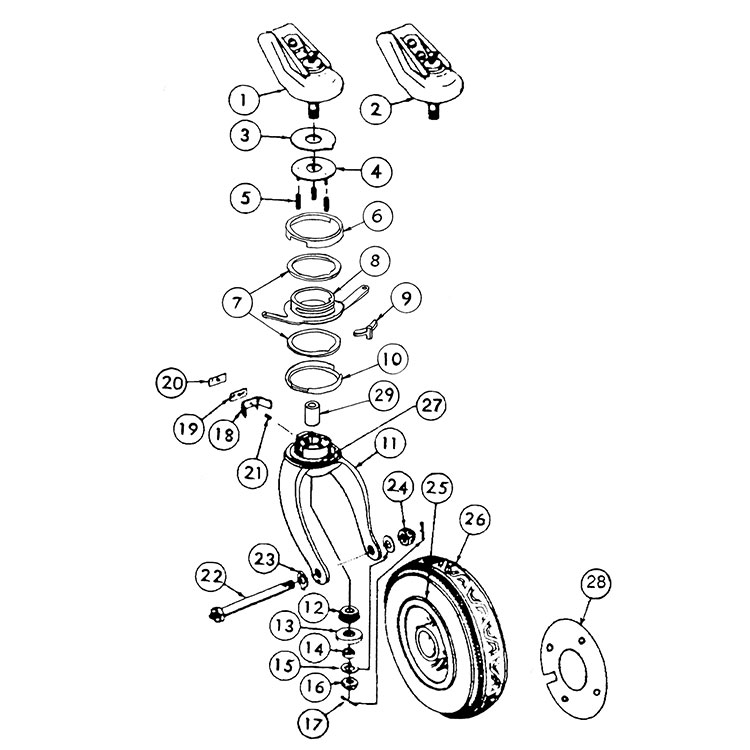

(Click image for a larger view) | The Scott Model 3200 tailwheel, with 8" pneumatic tire, is designed to give years of trouble-free service. The swivel mechanism is sealed to keep out water, sand and mud. Grease fittings are provided for lubrication. Bracket fits 1-3/4" wide tailwheel leaf spring. Wt. 7-1/2 lbs. Attaching hardware not furnished.
*Two-Hole Bracket for AG Aircraft |
|
| |
|
|
|
Spacer - Converts 1-3/4" 3216 (1 3/4")
bracket to 1-1/2" width
P/N 3241-1S Spacer - Converts 1-3/4" 3216 (1 3/4")
bracket to 1-1/4" width
P/N 3243-2 |
|
| Item No. | Description | No Req’d | Part No. | Price | Buy | | 2 | Bracket Assembly | 1 | 06-01291 | $296.50 |
| | 3 | Washer, Thrust | 1 | 3207 | $4.70 |
| | 4 | Thrust Plate Ass’y | 1 | 3234 | $41.85 |
| | 5 | Spring, Compression | 5 | 3233 | $3.45 |
| | 6 | Dust Cap | 1 | 3235-2 | $24.50 |
| | 7 | Washer, Thrust | 2 | 3206 | $12.25 |
| | 8 | Arm Assembly | 1 | 3214 | $229.00 |
| | 9 | Pawl | 1 | 3219 | $28.50 |
| | 10 | Dust Cap | 1 | 3235-1 | $25.90 |
| | 12 | Cone Bearing | 1 | 13286 | $27.75 |
| | 13 | Retainer, Grease | 1 | 1863 | $7.95 |
| | 14 | Spacer | 1 | 2504-1 | $13.75 |
| | 15 | Washer, AN960-816 | 2 | AN960-816 | $0.06 |
| | 16 | Nut, Shear AN320-8 | 1 | AN320-8 | $1.26 |
| | 17 | Pin, Cotter | 2 | 18482 | $0.02 |
| | 18 | Spring | 1 | 3222 | $8.90 |
| | 19 | Spacer | 1 | 3258 | $2.30 |
| | 20 | Spacer | 1 | 3258-1 | $2.50 |
| | 21 | Pin | 1 | 3257 | $6.75 |
| | 22 | Axle Ass’y | 1 | 3236 | $34.65 |
| | 23 | Washer, Lock | 1 | 3225 | $5.25 |
| | 24 | Nut, Castle, AN310-8 | 1 | AN310-8 | $1.63 |
|
|
|
