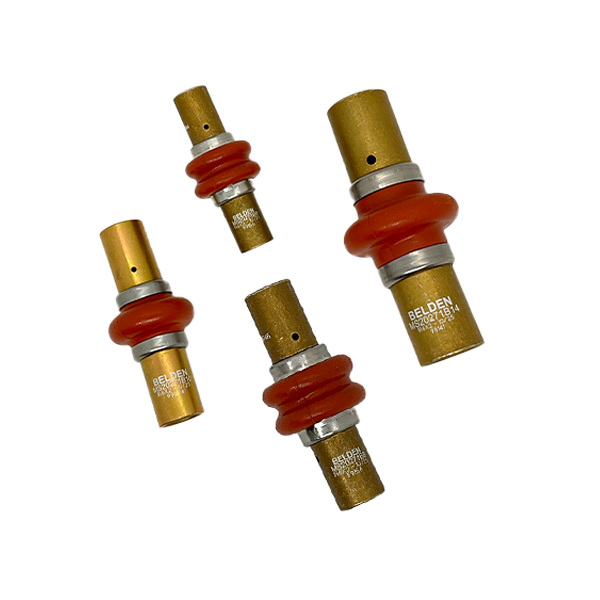

MS20271 UNIVERSAL JOINTS
You Might Also Be
Interested In:
Interested In:
 |
 |
| Part No. | I.D. | Price | Buy | Sub-Total |
| MS20271-B6 | 1/4" | $169.75 | ||

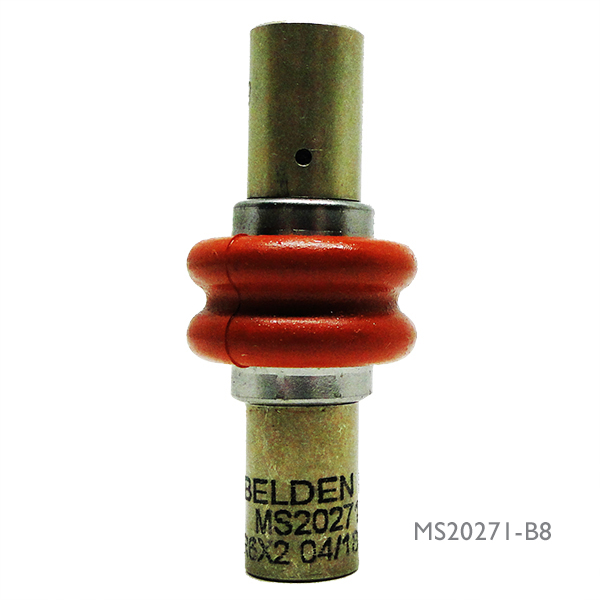

| MS20271-B8 | 3/8" | $109.85 | ||
| MS20271-B10 | 1/2" | $109.85 | ||
| MS20271-B12 | 5/8" | $109.85 | ||

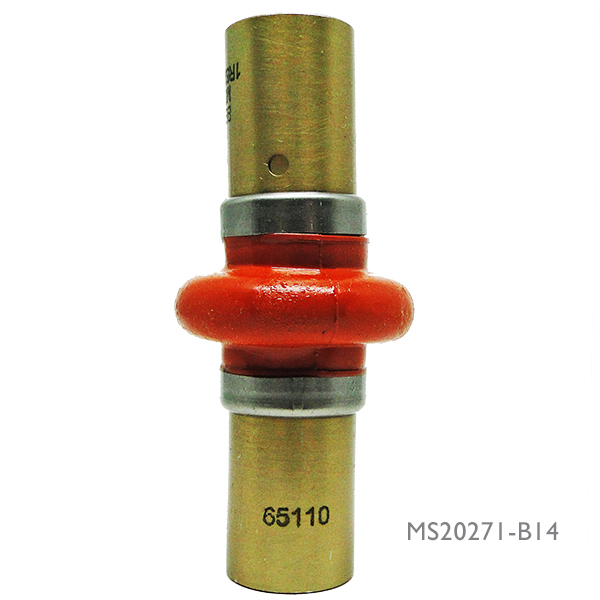

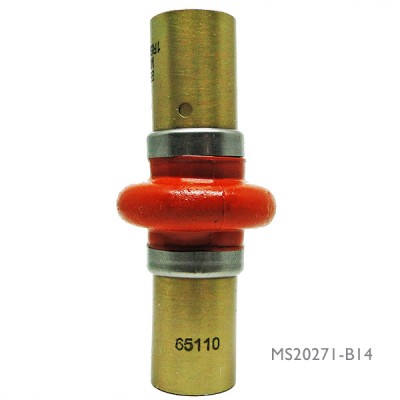

| MS20271-B14 | 3/4" | $124.75 | ||
|
Current Total
|
||||
Enter the quantity desired of each item in the Buy column.
Click Add to Cart to add them to your shopping cart
or Add to Wishlist to store them for ordering later.
Click Add to Cart to add them to your shopping cart
or Add to Wishlist to store them for ordering later.
|
Built to conform with and exceed all requirements stipulated in Spec. MIL-J-6193A. High axial and torsional strengths, high strength-weight ratio, no replacement during anticipated service life of aircraft on most installations, permanent lubrication.
Temporary torsional overloads as great as 80% of rated ultimate have been handled by these universal joints without harmful binding. Temporary axial overloads ranging up to 150% in excess of rated ultimates have been imposed without binding. These characteristics insure high safety factors under the most difficult operating conditions. |

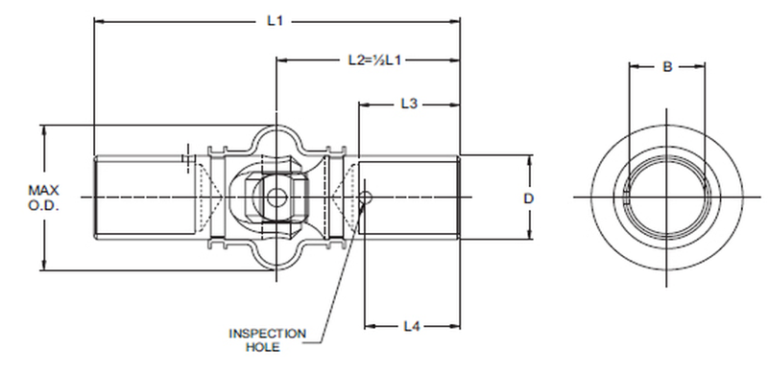

Part No. | I.D. | ØD +0.000 - 0.002 in. | L1 Overall Length in. | L3 +0.031 - 0.000 in. | ØB +0.004 - 0.001 in. | L4 Insp. Hole Location in. | Weight Max. Lbs. |
| MS20271-B6 | 1/4 | 0.372 | 2.000 | 0.500 | 0.250 | 0.437 | 0.070 |
| MS20271-B8 | 3/8 | 0.495 | 2.312 | 0.625 | 0.375 | 0.562 | 0.090 |
| MS20271-B10 | 1/2 | 0.620 | 2.750 | 0.750 | 0.500 | 0.687 | 0.180 |
| MS20271-B12 | 5/8 | 0.745 | 3.187 | 0.875 | 0.625 | 0.812 | 0.240 |
| MS20271-B14 | 3/4 | 0.870 | 3.625 | 1.000 | 0.750 | 0.937 | 0.350 |
