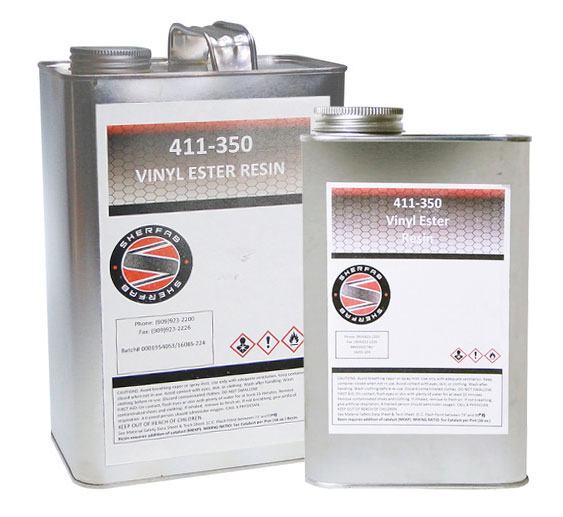

VINYL ESTER RESIN


(Click image for a larger view)
Select Size:

Part Number:
Price:
Quantity:


Derakane Momentum 411-350 epoxy vinyl ester resin is based on bisphenol-A epoxy resin and provides resistance to a wide range of acids, alkalis, bleaches, and organic compounds for use in many chemical processing industry applications. Derakane Momentum resins are a new generation of resins that can be used to improve fabrication efficiency and product quality. Their lighter color makes defects easier to see and correct while the resin is still workable. The resin's improved reactivity properties often permit and increase in the lay-up thickness per session. The longer stability provides additional flexibility to fabricators in storage and handling. Resin: Color may vary by manufacturer.

Warning:
MEKP Catalyst is very dangerous to the eyes. Always wear full goggle protection and have running water at hand when working with MEKP.

Catalyst Large Quantity Chart
Catalyst Concentration
Resin Quantity
Quart
Gallon
5 Gallon
1/2%
1/16 oz.
2/3 oz.
1-1/3 oz.
3/4%
1/4 oz.
1 oz.
5 oz.
1%
1/3 oz.
1-1/3 oz.
6-2/3 oz.
1-1/2%
1/2 oz.
2 oz.
10 oz.
Catalyst Small Quantity Chart
(20 -30 minute pot life at 2% mix ratio)
Catalyst Concentration
Resin Quantity 30 drops = 1 cc
2 oz.
4 oz.
8 oz.
12 oz.
16 oz.
1/2%
9 drops
18 drops
36 drops
1.8 cc
2.5 cc
3/4%
14 drops
27 drops
2 cc
3 cc
4 cc
1%
18 drops
36 drops
2.5 cc
3.75 cc
5 cc
1-1/2%
27 drops
2 cc
4 cc
6 cc
8 cc
2%
36 drops
2.5 cc
5 cc
7.5 cc
10 cc
Property
DERAKANE 411-350 PA
Tensile Strength, psi
11-12,000
Tensile Modulus, units 105 psi
4.9
Elongation, %
(DERAKANE 411-350)
5-6
Flexural Strength, psi
16-18,000
Flexural Modulus, units 105 psi
4.5
Compressive Strength, psi
16-17,000
Compressive Modulus, units 105 psi
3.5
Compressive Deformation at Yield, %
6.5-7.8
Specific Gravity
1.12
Heat Distortion Temp., F
210-220
Barcol Hardness
35

Options Part No. Price Buy
MEKP CLR SYRG CATALYST 1 OZ01-01110$2.45
MEKP CLR SYRG CATALYST 4 OZ01-07325$5.50
Similar Items Part No. Price Buy
VINYL ESTER 411-350PA QT KIT01-01109$34.25
VINYL ESTER 411-350PA 1G KIT01-07355$75.25
