Home / Airframe Parts / McFarlane Aviation Products / Replacement Parts /  /McFarlane Bushing Throttle Spacer - EC65
Main Image

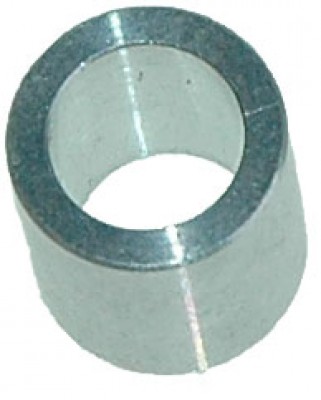

McFarlane Bushing Throttle Spacer - EC65

0 Reviews 0 Answered Questions
$11.50/Each
Quantity
Add to Wishlist
Part# 05-16557
MFR Model# EC65

Overview

The retaining nut threads onto the threaded section of the control on the back side of the instrument panel to secure the control. Replacement spacer bushing p/n EC65 used with the EC62 and EC61 retaining nut and lock washer on some McFarlane throttle controls.
Replacement Parts for McFarlane Push-Pull Controls



We offer a variety of replacement parts to service your McFarlane push-pull controls.
  • Adjustable Friction Lock Service Kits
  • Boots
  • Knobs
  • Retaining Nuts and Lock Washers
  • Threaded Wear Sleeve Nuts and Lock Washers
  • Miscellaneous
  • Dual Throttle Hardware Kit P/N 6408
Adjustable Friction Lock Service Kits:

Part NumberDescriptionUse Eligibility
EC12SKFriction Packing Service KitThrottle controls using a 1/2" friction nut
EC312SKFriction Packing Service KitThrottle controls using a 9/16" friction nut

Boots: Fuel, oil and temperature resistant, keeps trash out of the control and dampens vibration.
Part NumberDescriptionUse Eligibility
2353/16" Pushrod BootControls with a 3/16" pushrod
2721/4" Pushrod BootControls with a 1/4" pushrod
EC04Swivel Boot with Spring LockControls employing a swivel joint
Knobs:
Part NumberDescriptionUse Eligibility*
1536A or 1536BT-Handle: B, C, GN, L, R, W, or YVarious controls
6277Round: R, B, L, or CMCC1XXDLLL and MCUX24-LLL series controls
6277Round, engraved with "CHOKE":
RC, BC, LC, or CC		MCC1XXDLLL series controls
6277Round, engraved with "CABIN AIR":
RA, BA, LA, or CA		MCUX24-LLL series controls**
6277Round, engraved with "DEFROST":
RD, BD, LD, or CD		MCUX24-LLL series controls**
6277Round, engraved with "CABIN HEAT":
RH, BH, LH, or CH		MCUX24-LLL series controls**
6277Round, engraved with "PARK BRAKE":
RP, BP, LP, or CP		MCUX24-LLL series controls**
6307-BK Round, BlackVarious Cessna controls
6307-RD Round, RedVarious Cessna controls
6378Fuel Strainer DrainMCS1517 series controls
6417T-HandleMCTXXXX-LLL and MCTLXXX4DLLL series controls
6418T-Handle, Turn-to-LockMCTXXXX-LLL and MCTLXXX4DLLL series controls
64274 ProngMCTXXXX-LLL and MCTLXXX4DLLL series controls
64284 Prong, Turn-to-LockMCTXXXX-LLL and MCTLXXX4DLLL series controls
6429FlutedMCTXXXX-LLL and MCTLXXX4DLLL series controls
6430Fluted, Turn-to-LockMCTXXXX-LLL and MCTLXXX4DLLL series controls
6432T-Handle, ShortenedMCTXXXX-LLL and MCTLXXX4DLLL series controls
6489Square: R, B, L, or CMCUX24-LLL series controls**
6489Square, engraved with "CARB HEAT":
RB, BB, LB, or CB		MCUX24-LLL series controls**
6495Phenolic, Black: -01B, -02B, -03B, -04R or -04B MCUX24-LLL series controls**
6512Triangle: R, B, L, or CMCUX24-LLL series controls**
6570Red Vernier-Assist KnobVernier-Assist Mixture controls
66201/4-20 Black Vernier-Assist KnobVernier-Assist Throttle controls
6660T-Handle, Turn-to-Lock,
engraved with "Choke Lock"		MCTXXXX-LLL and MCTLXXX4DLLL series controls
6661Fluted, Turn-to-Lock,
engraved with "Cabin Heat Lock"		MCTXXXX-LLL and MCTLXXX4DLLL series controls
6662Fluted, Turn-to-Lock,
engraved with "Airbox Lock"		MCTXXXX-LLL and MCTLXXX4DLLL series controls
6730 Prop, Vernier-AssistMCVA Vernier-Assist controls
EC031/4-20 Black KnobThrottle controls
EC125-1Hemisphere, BlackThrottle controls
EC531/4-20 Black Ball KnobP/N MC12693-04 and MC455-139
MCT1XXDLLL, MCTLXXX4DLLL, MCTLXXXX-LLL and MCC1XXDLLL series controls
**For all knob options for the MCUX24-LLL Universal Light-Weight Controls, go to Light-Weight Control Knob Options.
Retaining Nuts and Lock Washers: The retaining nut threads onto the threaded section of the control on the back side of the instrument panel to secure the control.
Part NumberDescriptionUse Eligibility*
6060-81/2-20 Retaining NutThrottle controls using 1/2-20 threaded fittings
EC1111/2" Lock WasherThrottle controls using 1/2" threaded fittings
EC1193/4-16 Extended Panel NutControls with a 3/4-16 thread
MS35333-401/4" Steel Lock WasherMCT1XXDLLL, MCTLXXX4DLLL, MCTLXXXX-LLL, and MCC1XXDLLL series controls
MS35333-441/2" Lock Washer
6060-123/4-16 Retaining NutThrottle controls using 3/4-16 threaded fittings
EC1123/4" Lock WasherThrottle controls using 3/4" threaded fittings
MS35333-473/4" Lock Washer
61337/16-20 Retaining NutThrottle controls using 7/16-20 threaded fittings
61963/4-24 Stainless Steel Jam NutMCUX24-LLL series controls
61973/8" Lock WasherMCUX24-LLL series controls
62607/16-20 Retaining Nut, ModifiedMC6350 dual push-to-unlock controls
EC387/16" Lock WasherP/N MC565-548 series controls
EC613/8" Lock WasherP/N MC12693-04 or MC455-139
EC623/8-24 Stainless Steel Retaining NutP/N MC12693-04 or MC455-139
EC65Throttle Spacer BushingP/N MC12693-04 or MC455-139
Threaded Wear Sleeve Nuts and Lock Washers: Threaded wear sleeves are used on many McFarlane controls to secure the control to the firewall and/or mounting brackets.
Part NumberDescriptionUse Eligibility
EC331/4-20 Stainless Steel Jam Nut for KnobsThrottle controls using 1/4-20 threaded fittings
(except P/N MC12693-04 and MC455-139)
EC387/16" Lock WasherP/N MC565-548 series controls
EC7012M x 1.25 Jam NutP/N MC565 series controls
EC7212mm Lock WasherP/N MC565 series controls
Miscellaneous:
Part NumberDescriptionUse Eligibility*
61351/8" Ball BearingMC6150 and MC6250 push-to-unlock controls
7391-0.3003/8" Ball Bearing Halves
McFarlane Manufactured Beechcraft Controls
6289Decal, "Carb Heat"Piper carburetor heat controls
64090.05 Allen WrenchMCTL1014D series controls
6290-06-12KPanel Hole ReducerAdapts a 0.375" control to a 0.75" hole
6290-08-12KPanel Hole ReducerAdapts a 0.5" control to a 0.75" hole
6416Pin, Turn-to-LockMCTLXXX4DLLL and MCTLXXXX-LLL series controls
6420Ferrule, Turn-to-Lock, BrassMCTLXXX4DLLL and MCTLXXXX-LLL series controls
6423Ferrule, Turn-to-Lock, NylonMCTLXXX4DLLL and MCTLXXXX-LLL series controls
6424Conduit TerminalMCT1XXDLLL, MCTLXXX4DLLL, and MCC1XXDLLL series controls
6433-1Conduit ClampMCQ1XXDLLL series controls
6515Barrel Stop Assembly
MCTL1014D and MCC101D series controls
EC89Wedge WasherUse on each side of instrument panel to angle a control
EC989/16" Friction Adjust WheelThrottle controls using a 9/16" friction nut
M83248/1-006O-ringMCC1XXDLLL series controls
MS35650-304Jam NutMCC1XXDLLL series controls
Dual Throttle Hardware Kit P/N 6408:
Part NumberDescription
6408Kit contains the following:
62712 each Slip Fit Conduit Terminal Assemblies
62702 each Cable Stop Assemblies
68221 each Spring, Red, Left
72351 each Spring, Blue, Right
Hex Wrench1 each

Use Eligibility*:
Part NumberDescription
XXcable/wire type
LLLpart length
MCUX24-LLLUniversal Light-Weight Control
MCT1XXDLLLDual Throttle
MCTLXXX4DLLLDual Turn-to-Lock
MCTLXXXX-LLLSingle Turn-to-Lock
MCC1XXDLLLDual Control
MCQ1XXDLLLDual Quadrant Control
