Home / Avionics / GPS / Accessories / Garmin / Cables /Garmin Bare Wires Cable For aera 760
Main Image

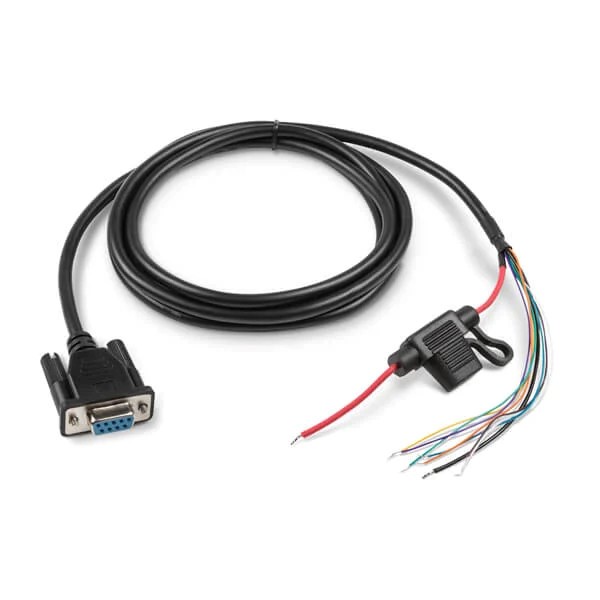

Garmin Bare Wires Cable For aera 760

5 Reviews 10 Answered Questions
$77.75/Each
Quantity
Add to Wishlist
Part# 11-18298
MFR Model# 010-12994-11

Overview

Connect your Aviation Mount (aeraŽ 760) to compatible avionics and power systems using this cable.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Submit a Review

must have for Aera 760.

Irina O Verified Purchase

Garmin aera 760 Bare Wire Aviation Mount Cable
November 20, 2024

Simplified the install considerably. Splice and go.

Lionel L Verified Purchase

Garmin aera 760 Bare Wire Aviation Mount Cable
August 9, 2022

Good product

James G Verified Purchase

Garmin aera 760 Bare Wire Aviation Mount Cable
June 17, 2022

Mike W Verified Purchase

Garmin aera 760 Bare Wire Aviation Mount Cable
September 1, 2021

Geoffrey F Verified Purchase

Garmin aera 760 Bare Wire Aviation Mount Cable
July 13, 2021

Q&A

Submit

Please note, Aircraft Spruce ®'s personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce ® assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this allow flight plan data to be transferred to a GTN 650?

The AERA760 is capable of sending Flightplans. This cable will allow that.

Q: Does this come with an installation manual that details the wire layout? I do not see one listed under manuals for the 760 or this accessory.

The wiring diagrams are in the Pilot Guide for the unit.

Q: is there a adapter to connect a garmin 696 power cord to the 760 power supply?

No, there is currently no adapter available for this.

Q: We need a power and data cable for the 760 cradle that will plug n play with the GDL 50.

PART # 11-18298 would be needed. The GDL50 barewire cable will also be required for this installation (PART # 11-10735)

Q: Can I transfer a flight plan to =GTN 750 with this cable?

Yes, this cable would allow for flight plan transfers.

Q: The picture isnt representative of the actual harness, correct? Could I get some more details on the terminations? Thank you

That is the actual part shown in the photo.

Q: Does the Aera 760 have an old DB style connector for serial comms? The 760 only lists a USB-C connection. Thank you

The aera 760 has USB and SD card connectors. The sub D connector shown in the photo connects to our part number 11-18891, that would come with the Garmin aera 760.

Q: What is the amperage rating of the inline fuse?

3 amp fuse.

Q: Will this cable interface the JPI EDM 900 to the AERA 760?

Part # 11-18298 is only called out in the pilots guide to connect the GDL series products to the 760.

Q: Is this what I need to connect the Aera 760 to a G5?

Yes, this will link the Aera 760 to the G5.
