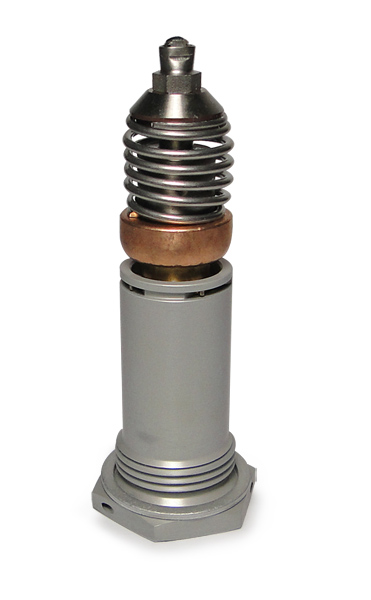

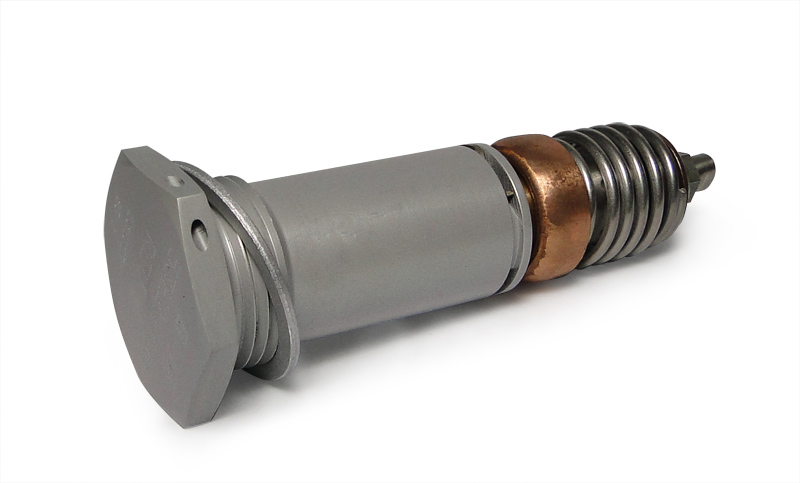

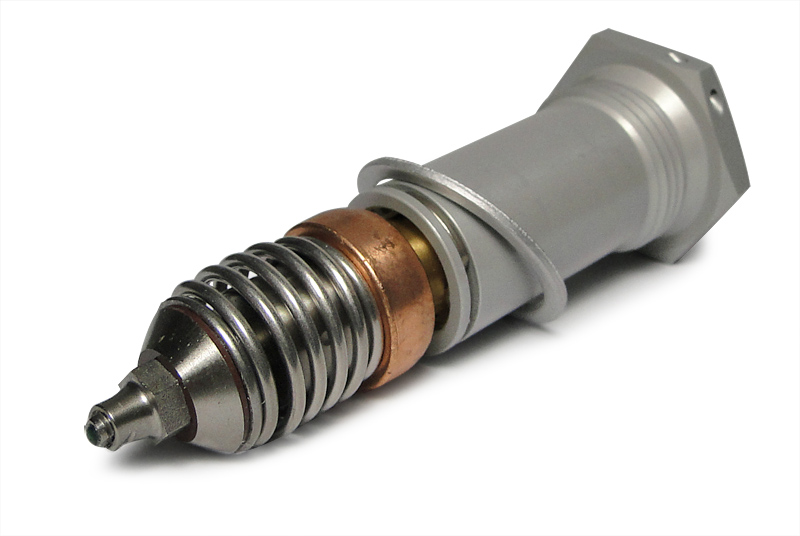

53E22144 Lycoming Temp Control Oil Cool Valve Assembly

$439.00/Each
Part# 08-12154
MFR Model# 53E22144

Overview

Lycoming Oil Cool Valve Assy

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Vernatherm wasnt calibrated correctly. Popped at 230-250F. Requested replacement but instead of sending one out when it arrives I am jumping through warranty hoops for my money back. Told a month before I hear anything. Total BS. In my airplane .01 hours. WTF?

Sam C Verified Purchase

53E22144 LYCOMING TEMP CONT. OIL COOL VALVE ASSY

September 10, 2023

Didnt solve the oil temp problem, but arrived quickly and as described. The old unit had approximately a .250 throw when placed in pan of boiling water.

Paul D Verified Purchase

53E22144 LYCOMING TEMP CONT. OIL COOL VALVE ASSY

July 18, 2023

Allen T Verified Purchase

53E22144 LYCOMING TEMP CONT. OIL COOL VALVE ASSY

May 12, 2022

15hours after major OH the new Superior temp control valve began showing higher than normal oil temps. Ordered the Lycoming 53E22144, installed and issue is solved. Would highly recommend using this PN anytime you have a issue or during OH

Daniel C Verified Purchase

53E22144 LYCOMING TEMP CONT. OIL COOL VALVE ASSY

February 11, 2022

Its kind of a two fold review. The part came to me and was not calibrated correctly. It would not open up until 250°F. It should have popped at 185°F or 85°C. During the return of the item aircraft, Spruce said they did not have a part and I would have to do a warranty claim. If they had the part they would have swapped it out but, because they dont have stock, I have to do the warranty paperwork and jump through all the hoops. I said, I would hear something in a month or so. Then, if they or my coming decided to cover the warranty, they would do so at that time. If not, Im out my purchase. So as of now, I have done all of their paperwork and all of their request and Im waiting to hear an answer. Its pretty ridiculous when youre dealing with basically a thermostat. I also included supporting video showing my Garman data where you can see when the oil temperature dropped. Also, I took a video of it on the stove being heated up in oil and you can see where it also opens up. The purchase was also done and installed and used one time. So I guess well see how aircraft Spruce does with the situation but I cant believe Im going through all this hassle on a simple purchase of a vernatherm. Thank God it wasnt something more complicated or expensive

Sam C Verified Purchase

53E22144 LYCOMING TEMP CONT. OIL COOL VALVE ASSY

September 18, 2023

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this 53E22144 LYCOMING TEMP CONT. OIL COOL VALVE ASSY come with a gasket?

Yes, the gasket is included.

Q: Is this 53e22144 part a replacement part for Lycoming 75944 from service bulletin 1255a?

Yes the 53e22144 is the replacement for 75944.

Q: Does this 53E22144 fit OX 340 titan?

Yes, it should. But you can also use the ael19600 or sl53e19600

Q: What size socket is used to install/remove the vernatherm?

1-1/4

Q: Does the 53E2214 Veratherm valve replace the LW10269?

Yes, 53E2214 replaces LW10269.
