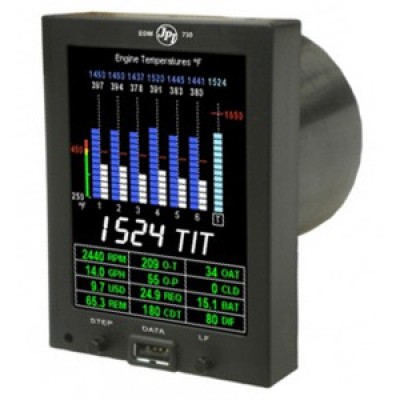

J.P. INSTRUMENTS EDM-730 ENGINE MONITORING SYSTEM

Select Cylinders:
46789
Select Model:
No Fuel FlowWith 201 FF (Fuel Pump)With 231 FF (Gravity Fed)
Select Bayonet / Adapter Probes:
Bayonet & AdapterAll CHT Bayonet
Quantity
Add to Wishlist

Overview

The EDM-730/830 revolutionizes engine monitoring by the integration of brilliant full color graphical LCD display with the extremely popular EDM 700/800 series functionally and yet reduces the package size to the smallest on the market! The EDM-730 packs more features, functionality, and information onto its large full color screen than any other monitor available and features larger characters for easier reading. Oil pressure has also been added to the entire EDM series line. Mounting is a breeze due to its standard 3-4/8" format, and because it can be mounted in either portrait or landscape orientation, thus accommodating virtually any panel configuration. Depth behind the panel is an amazing 2-1/2". The unit is "Plug and Play" compatible with existing EDM-700/800 units.

Download dimension profile here.

Full Color LCD Display:
  • More Graphics
  • Large digits for easy reading.
  • Full color parameter range markings.
  • Annunciation of exceedances.
  • More information without "page swapping"
  • FAA STC/TSO approved.

Package Form Factor:
  • Standard 3-1/8" Mounting from the front.
  • Face is offset from center to better fit in spaces where other equipment is currently located.
  • Can be mounted in four different face orientations to satisfy tough mounting scenarios.
  • Depth is nearly the same as the height of a business card, 2.5".
  • Plug and play compatible with the JPI EDM-700/800 harnesses for easy upgrade.
  • Front mounted USB jack for easy software upgrades and data downloads.

Features

  • User programmable engine parameters.
  • Percent Horsepower.
  • Rich of peak or lean of peak operation at the tough of a button.
  • RPM and manifold pressure with full graphical depiction.
  • Full function fuel flow computer system.
  • Links to GPS for enhanced fuel management.
  • Full EDM scanner functionality.
  • Unit easily set to display in either portrait or landscape mode
  • Monitors: 4/6/7/8/9 cylinder engines, Turbocharged engines, RPM, MP, %HP, IAT, CDT, OAT, CAT, OIL P, OIL T, CHT, EGT, VOLTS, EGT, DIF, CLD, F FLOW, F USED, F REQD, F ENDUR, F REM

Functions

Included Functions
  • EGT 4 or 6 Probes
  • CHT 4 or 6 Probes
  • Volts
  • Shock Cooling
  • Span (highest to lowest EGT)
  • LOP/ROP JPI Exclusive Leaning Mode
  • Power Connector
  • EGT/CHT Harness
  • EZTrends
  • Data recording - 100 hrs Download USB 1 GB Memory Stick
  • Selectable Positions for Linear gauges
  • 3 year warranty
Optional Functions
  • Fuel Flow
  • Oil Temperature
  • Oil Pressure
  • OAT
  • TIT
  • CDT
  • IAT
  • CARB Temperature
  • RPM
  • MAP
  • % HP
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Ron
February 28, 2018

Great instrument. High quality probes and wiring. Immediately observed my #3 cylinder was running high CHT. I would have never known that since my old single point CHT/EGT was on #4. Performance and price point puts this instrument on my Required Equipment List.

Chris K
February 10, 2017

Heres my assessment of this unit after having it installed during overhaul of my engine. 1) Be aware that the engineering advancement effort on this product was clearly focused on the screen compared to the 700/800 series. Improvements are limited to those that could be relatively passive in an upgrade from those earlier models. For example, real estate around the screen is such that a separate toggle switch for All, Fuel and EGT/CHT is really not needed. It should have been baked into the unit. On the 800/700 it was understandable as real estate on the unit was limited. 2) The documentation is rather shameful. It shipped with a 5 year old manual that is multiple versions behind the software onboard. When I asked if I had the current manual, Support replied that it was the current document. This part of the response was a bit amusing: EDM updates occur faster than manual updates. Clearly, by about 5 years. Youll find menu options not in the manual, reworded or out of order from the book that makes it confusing to program. For example, I asked what KFactor2 was as it was not in the manual or the FAQ on the website. I was told it was for pressurized carbs and to ignore it. Great, but I asked if the manual or FAQ could be updated. The response was he did not know when the doc would be updated. So much for trying to save the next pilot a little trouble. During my inquiry I also recd a document with an attempt at outlining the current menu options. The document was scribbled on, had grammar issues and wasnt something I would allow, as a director of support at my own company, to go out the door. 3) Email support was rather poor. A lot of one line answers that were incomplete. For example, I asked how Fuel Flow impacted %HP calc as that was the only thing I had not finalized. The response led me to believe this person doesnt know: Fuel flow does play a part in %hp uncertain as to how much it would be off but should be relatively close. I offered an enhancement request for a future software version and it was glossed over and not responded to. Overall, I will say I do like the unit. The display is very nice and the information will be helpful in my operation of the aircraft. Just expect documentation and email support to be lacking/no frills and for the product itself to be optimized for a better display and upgrading older units.

Jeremy D
November 16, 2015

Q&A

Q: What are the unit's dimensions for the JPI EDM 730/830?

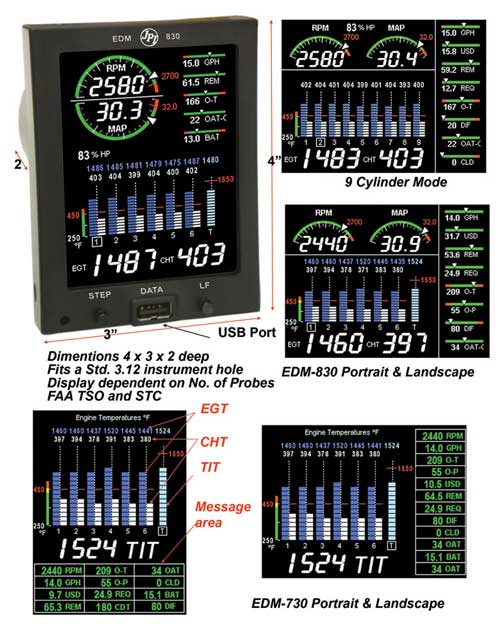

The JPI EDM 730/830 is 3.1"W x 4.2"H x 3.0"D without connectors and wire. Also note that this gauge (3-1/8 mounting hole) can be mounted up, down, right and left. For more information please see our videos tab.

Q: What accessories are required for fuel flow, Garmin 530W integration, RPM and MAP.

The JPI EDM 830 comes with this in the box or you can order the options for fuel flow, RPM and MAP found on the accessories tab.

Q: Are there any differences between 730 and 830 cores? Can I initially buy the 730 and afterward add other sensors to get ability of 830?

You can purchase a JPI 730 first and later add any/all the engine features of the JPI 830.

Q: I am from Brazil, is the JPI Instrument EDM 730 certified from the FAA to be installed at PA28A?

Yes, the JPI EDM 730 and 830 are FAA certified (TSO'd) engine monitors. Please note they are secondary monitors (meaning you will have to keep your existing engine gauges and probes).

Q: Are all CHT and EGT probes, fuel flow and complete wiring harnesses included in the EDM-730 box?

Yes, based on which version you select (4 or 6 cylinders) you will get that many probes for EGT and CHT. You will also get fuel flow if you select the option.

Q: Can I add %HP to the EDM730?

Percent horsepower is one of the options included with the EDM730.

Q: Plan to install in a Cessna 172I with O-360-A1A with single probe EGT/CHT instruments installed. How do the single primary instrument probes and the 4 EGT/CHT 730 probes mount so that they all maintain their function.

JPI recommends using CHT sender part number 10-03689 to be used in conjunction with your existing senders. You can mount EGT probes next to existing probes with no problems.

Q: What is the format of the USB Memory Stick? and what is the File Format -CSV or exl or PDF once it is loaded onto the computer? Reference:- Data recording - 100 hrs Download USB 1 GB Memory Stick

The file is saved as a FAT 32 4GB memory stick. It can be saved as a CSV file after loading to the computer.

Q: I had a JPI 700 installed in my Socata TB200. I has been installed right from the beginning 1995. Now it does not work any more (blank). Can I replace it with a new EDM 700 or 730 or do I need new cables/connectors?

Per JPI. We can replace your display if it is bad. Yes, you can upgrade to an EDM-730 without needing to re-do wires and connectors. The upgrade is plug and play.

Q: I have a FS450 fuel flow installed. Can I simply connect the transducer to a 730 or do I have to buy that option?

The fs450 transducer will work with the 730. If placing an order for a 730, select the fuel flow option without transducer.

View in Catalog
