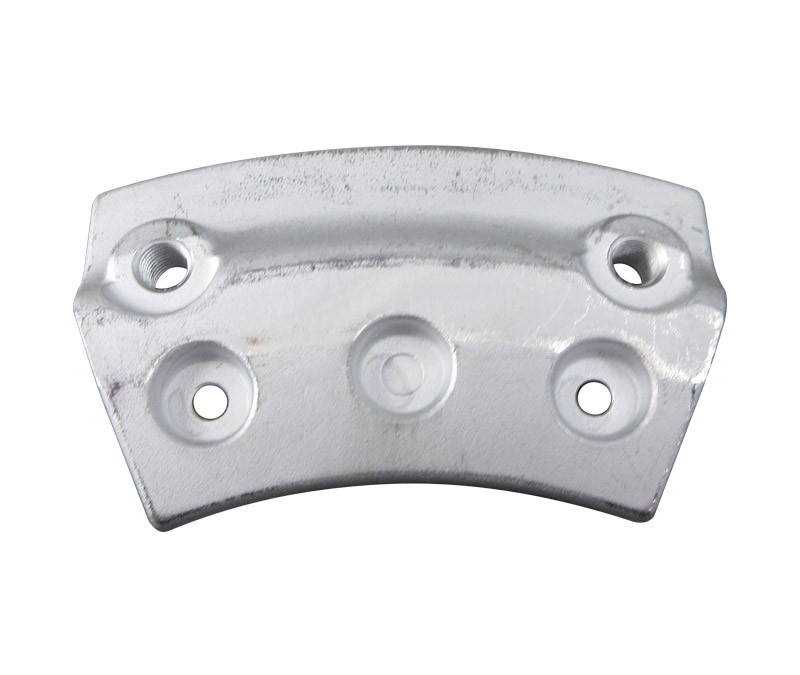

Cleveland Back Plate 064-01500

$199.85/Each
Part# 064-01500
MFR Model# 064-01500
FIGSpruce PNCleveland
PN
Descripiton
7064-01500064-01500Plate Back

Overview

Model No.30-63A used with wheel 40-97A.
P/N 30-63A

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reference Chart

  Assembly No. & qty. per assembly
FIG Part No. Cleveland No. Description 30-56 30-56A 30-63 30-63A 30-63D
  091-02200 091-02200 Cylinder Assy. -- -- 1 1 1
1 061-01900 061-01900 Cylinder 1 1 1 1 1
2 062-01600 062-01600 Piston 1 1 1 1 1
3 101-05200 101-05200 "O" Ring 1 1 1 1 1
  073-01100 073-01100 Press. Plate Assy. 1 1 1 1 1
4 063-01200 063-01200 Plate-Press. 1 1 1 1 1
5 66-105 66-155 Lining 1 1 1 1 1
6 105-00200 105-00200 Rivet - Cleveland 9/32" Long 2 2 2 2 2
  074-01000 074-01000 Back Plate Assy. 1 1 1 1 1
7 064-01500 064-01500 Plate-Back 1 1 1 1 1
8 069-00400 069-00400 Bolt-Anchor 2 2 2 2 2
9 AN365-428A 094-10300 Nut 2 2 2 2 2
10 AN960-416L 095-10200 Washer 4 4 4 4 4
11 081-00100 081-00100 Seat-Bleeder 1 1 1 1 1
12 079-00300 079-00300 Screw Bleeder 1 1 1 1 1
13 183-00100 183-00100 Cap-Bleeder 1 1 1 1 1
14 AN823-4D 104-00500 Fitting Tube 1 1 -- -- --
15 LP4-17AM 103-11600 Bolt-Lock 2 2 2 2 2
16 075-03700 075-03700 Torque Plate Assy. -- 1 1 1 1
17 145-01000 145-01000 Bushing 2 -- 2 2 2
