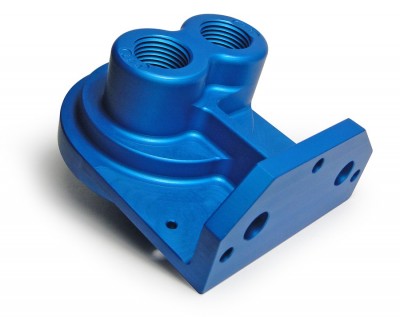

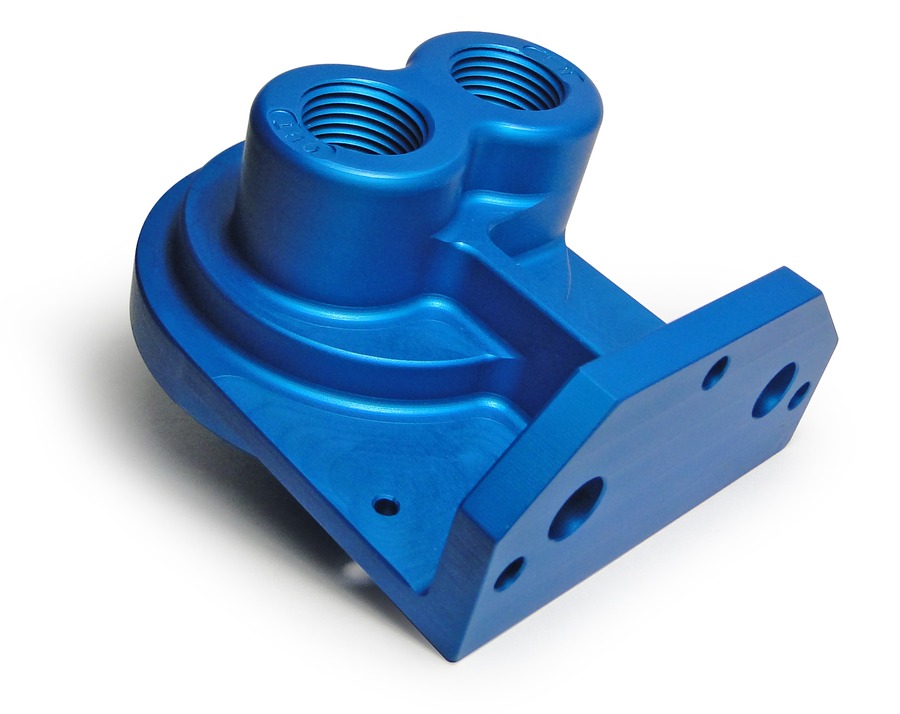

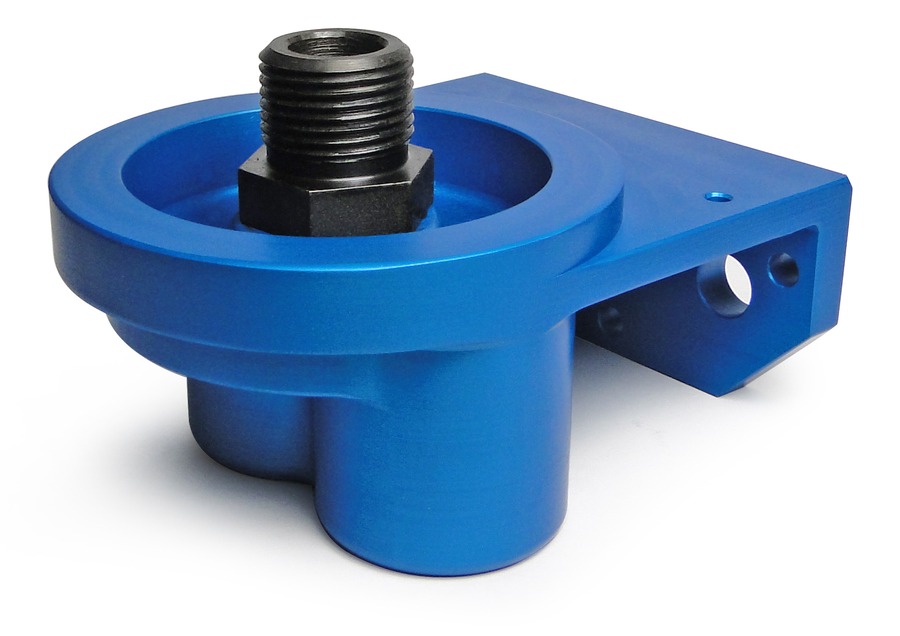

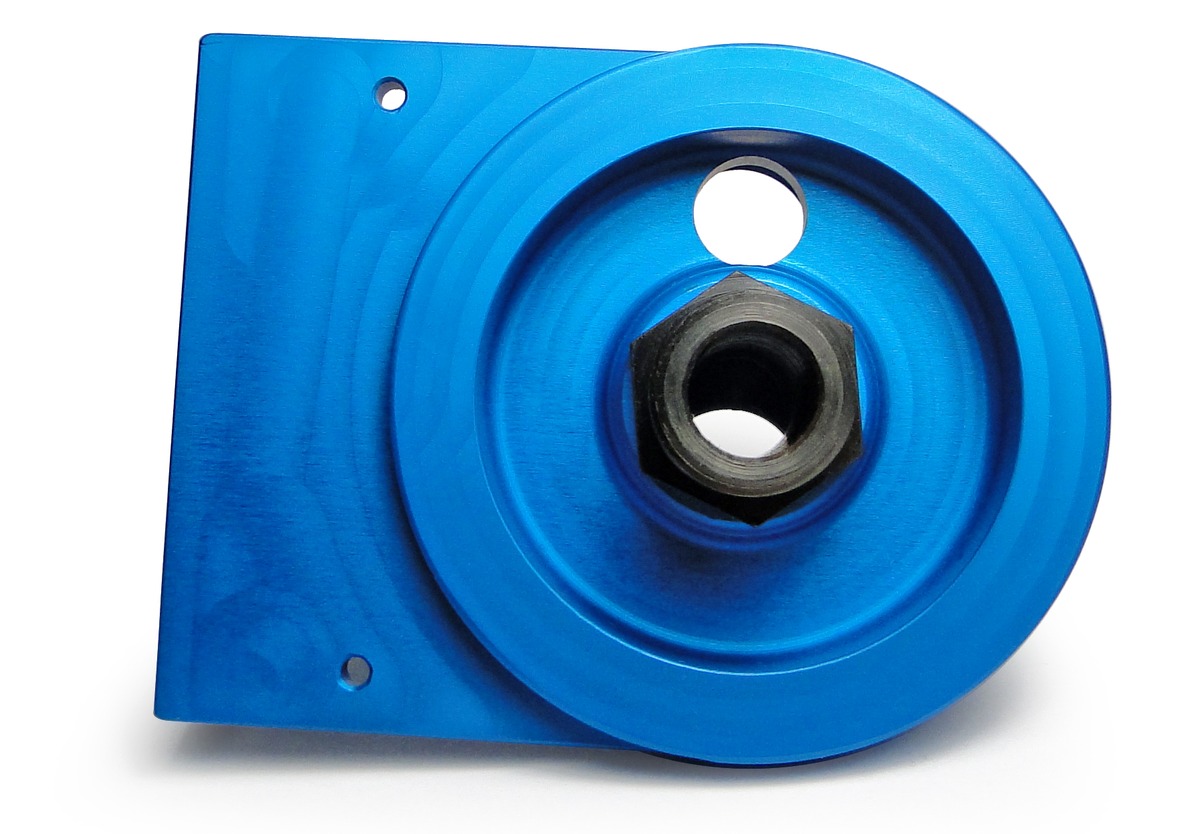

Remote Oil Filter Adapter, CNC Machined from 6061 Aluminum for use with oil filters that have a 13/16-16 thread that mounts to the firewall.
Experimental use only
Fittings are NOT included.
The IN and the OUT ports are 1/2-14 NPT (female) for this remote oil filter adapter that mounts to the fire wall etc.
Top notch machine work. Heavy construction. Definitely aircraft worthy. But mine came with a 3/4-16 thread adapter, not the 13/16-16 adapter listed in the overview. Not a problem for me, I just bought a filter with 3/4 thread. It might matter to someone that already had 13/16 filters on hand.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the manufacturer, the oil filter adapter (08-01057) has a 13/16-16 thread and the seal on the filter should be approximately 3 inch OD. Looks like the 103, 104, and 108's have the 13/16-16 thread. The adapter does not have veratherm in it.
The thread size of the two ports are 1/2" NPT. The fittings are P/N# AN816-10D. If you want to use the next size smaller hose you will have to use an AN816-8D and a thread reducer.
The two larger ones are 1.75 center to center and .39 dia.
These are 1/2 npt which is based on the ID of the fitting. The actual OD of the fitting would be closer to 3/4.
