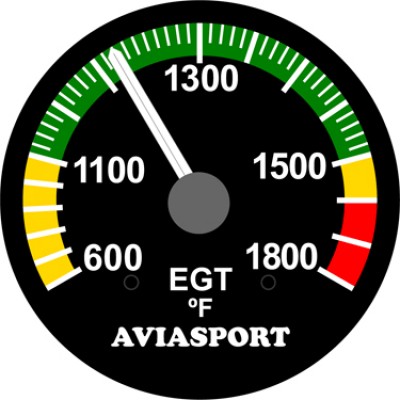

AvIasport Rotax 912 EGT Gauge Fahrenheit - 2 Inch

$112.95/Each
Quantity
Add to Wishlist
Part# 15-08556
MFR Model# IM-780

Overview

The IM-780 instruments have been designed especially to measure the EGT in Rotax« engines 912. The IM-780 is available in 2" (52 mm) diameter. With an optional switch, you can measure the Temperature of two EGT. The instruments use a pointer thats turns 240║, witch gives them great resolution. Their display areas are divided into red, green and yellow zones in line with the ROTAX limits.

Thanks to embedded operational amplifiers, this instrument has a high accuracy, but needs a power supply of 12V or 24V.

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Specifications

  • Case: Plastic
  • Weight: 200g
  • Suitable for: Rotax 912 With Type "K" sender
  • Power Supply: 10-30VDC
  • Power Current: 0.1 Amp. Max.
  • Scale: 600-1800 ║C
  • Subdivision scale: 10║C
  • Max. Deviation: 1%
  • Dimensions: See sketch
  • Calibration: Calibrated by the manufacturer prior to shipment.
