Sidewinder

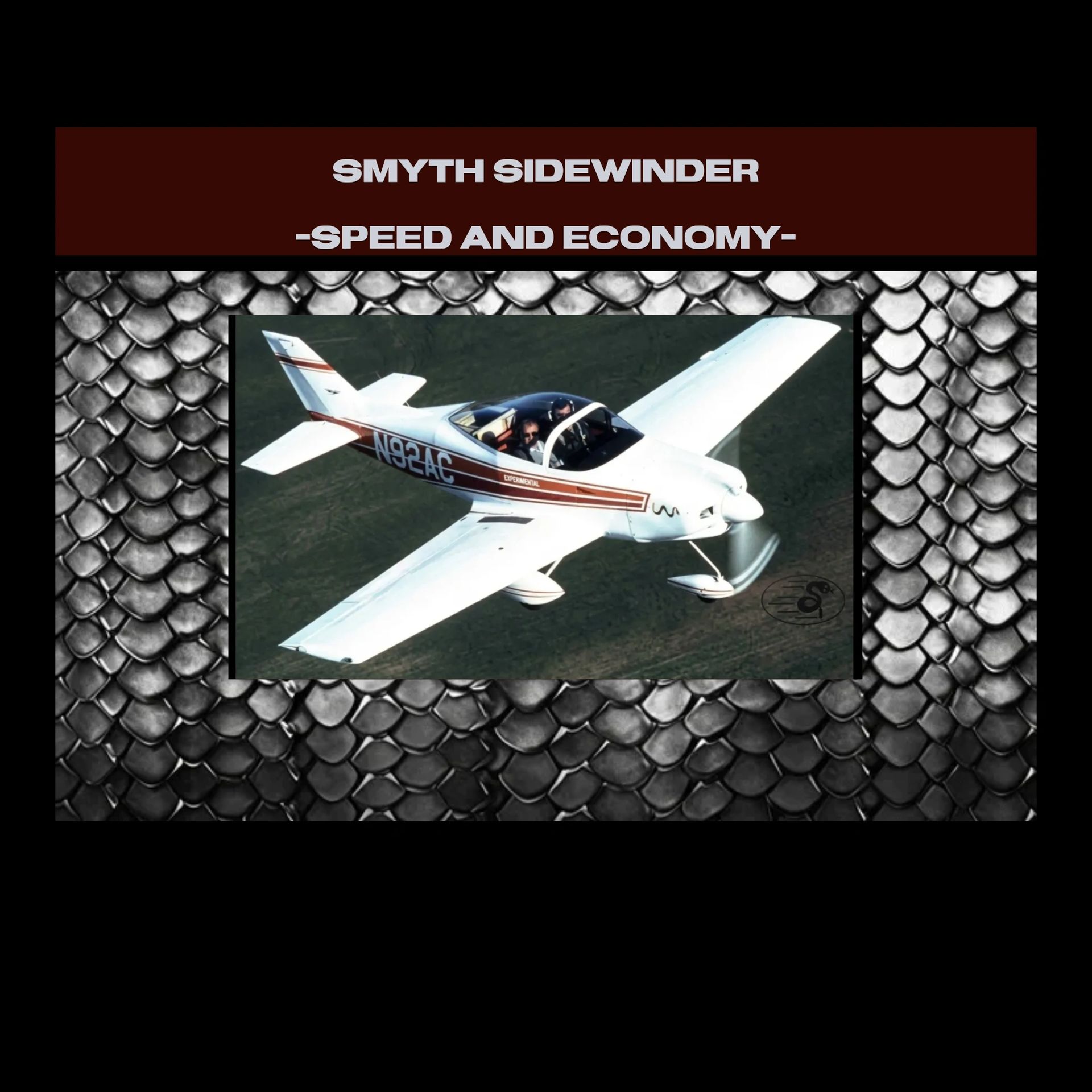

The "Sidewinder" is a single engine, low wing, all metal aircraft designed to carry two passengers side-by-side. The wings and tail surfaces are fabricated from aluminum while the fuselage incorporates the inherent safety features provided by a steel tube truss. The fuselage is covered with aluminum as well. Designed for engines 90 HP to 180 HP, the Sidewinder won Best design award at the 1969 EAA convention.

For more info on Sidewinder plans contact
The Sidewinder
www.sidewinderaircraft.com
ph: 813-781-0957

Specifications
Wing Span	24' 10"
Wing Area	96 sq. ft.
Wing Root Chord	60"
Wing Root Airfoil Section	NACA 64₁-212
Wing Root Incidence	+1°
Wing Tip Chord	36"
Wing Tip Airfoil Section	NACA 64₁-210
Wing Tip Incidence	-½°
Dihedral	4°
Aspect Ratio	6.85
Length Overall	19' 4"
Height Overall	5' 5½"
Horizontal Tail Span	7' 7¾"
Horizontal Tail Area	14.1 sq. ft.
Horizontal Tail Root Chord	30"
Horizontal Tail Tip Chord	18"
Horizontal Tail Airfoil Section	NACA 63-009
Vertical Fin Area	4.4 sq. ft.
Rudder Area	2.0 sq. ft.
Aileron Area	3.0 sq. ft.
Cabin Width	38"
Cabin Height	38"
Wheel Tread	5' 7"
Fuel Capacity	17½ gallons
Baggage	60 lbs.

Performance
Engine	Lycoming 125 HP
Gross Weight	1,450 lbs.
Empty Weight	867 lbs.
Useful Load	583 lbs.
Wing Loading	15.8 lbs./sq. ft.
Power Loading	11.6 lbs./HP
Maximum Speed @ Sea Level	175 MPH
Cruise Speed @ 75%	160 MPH
Stall Speed - No Flaps	55 MPH
Rate of Climb - Gross Weight	900 ft./min.
Rate of Climb - No Passenger / No Baggage	1,500 ft./min.
Maximum Range	425 miles
