Tubeless Kit 5 / 6 Spun Aluminum Wheels With Hw

$30.90/Each
Part# 15-04963
MFR Model# 7100 HARDWARE

Overview

Aluminum Wheel Joiners:

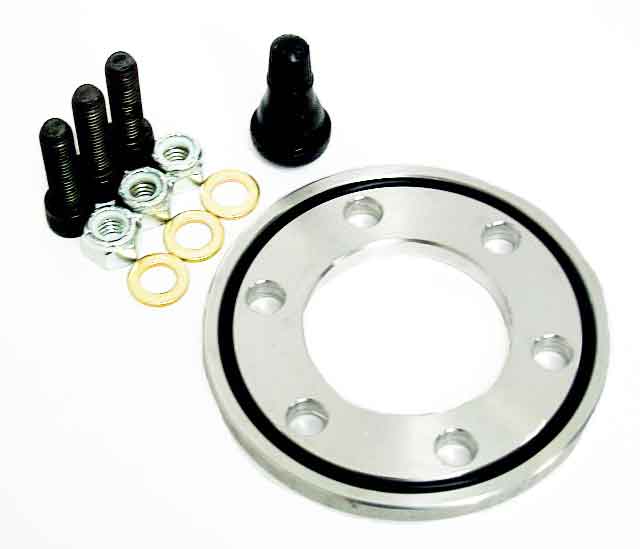

15-04963: Center ring with 6 hole pattern joins wheel halves. O-ring grooves on both sides for tubeless sealing. For use only when mounting 5" or 6" spun aluminum wheels to 15-07310 or 15-05703 Brake Kits. Comes complete with 3 nuts, 3 bolts, 3 washers and 1 valve stem. Order one per wheel.

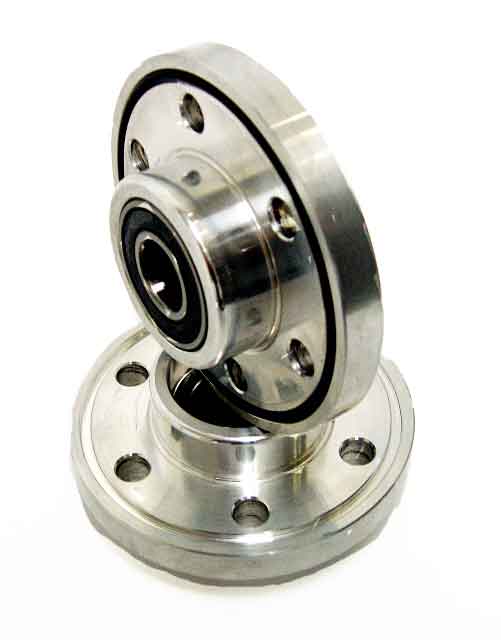

15-04964: Center hub with 6 hole patern joins wheel halves. Hub includes two 5/8" precision bearings 15-04879, 2 o-rings, 6,5/16 x 1.25" bolts, 6 nylock nuts, 12 washers and a valve stem. O-ring grooves on both sides for tubless sealing. Measures 1.5" wide at axle. For use without brakes on 5/8" axle. Order one per wheel.

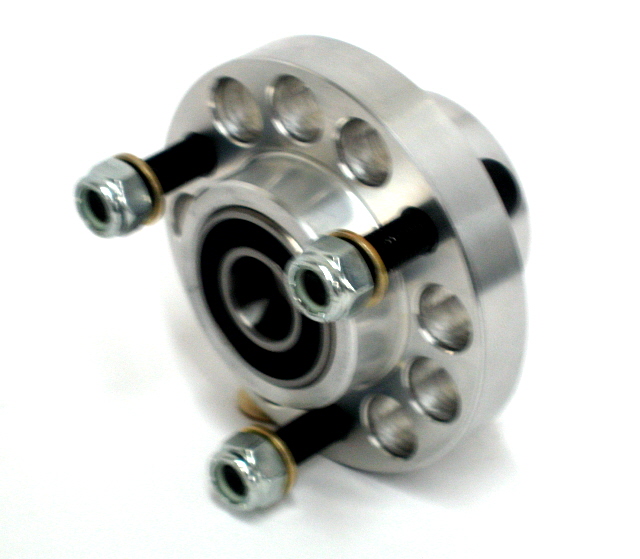

15-06365: MX Wheel Joiner Kit. Rear axle hub for mounting wheels. Use with 15-04963 sealing ring. Comes with 5/8 bearings, 5/16 x 1.25" bolts, nylock nuts and washers. Order one per wheel.
