CESSNA 177RG ENGINE BAFFLE KITS

Select Metal Coat:
Bare CoatGray Powder Coat
Select Seal Color:
BlackBlueOrange
Quantity
Add to Wishlist

Overview

**Powder Coat: Only color is Hammertone (Gray) Powder Coating**

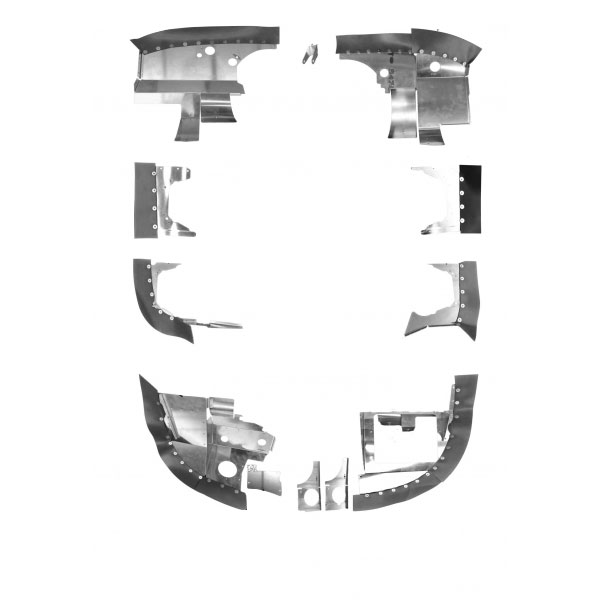

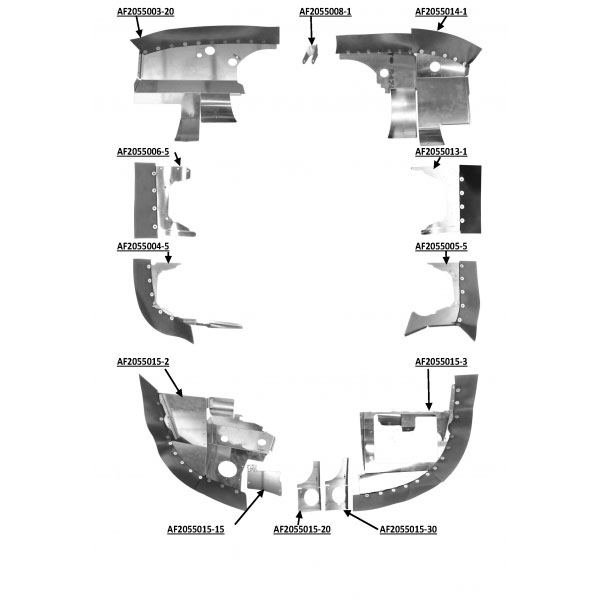

Complete Engine Baffle Components for Cessna 177RG.

These baffles are FAA/PMA approved, have the silicone seals attached, and arrive ready to install.

Airforms is the premier manufacturer of FAA-PMA replacement baffle components.

Note:
  • If aftermarket components of differing dimensions have been installed, it is the installer's responsibility to adjust the baffles to fit. Components include: starters, alternators, exhaust, etc.
  • Mounting hardware is not included (nuts, bolts, screws, washers, retaining springs, and Tinnerman clips).

Features

  • Baffles are made of 6061-T6 aluminum with many improvements over the original baffling.
  • Improvements include: stainless steel brackets where needed, hard rivet construction, half inch backing plates on seals, and an improved fit to increase engine cooling.
  • All Airforms engine baffles are designed to replace the factory installations and are individually interchangeable.
  • The baffle seals are fiberglass reinforced, high temperature silicone: black is standard. Orange or blue are available for an extra charge.
  • We also sell seal kits if your metal baffle pieces are in good shape.

Eligibility

  • S/N: 177RG0593 - 1366, 0491
  • FAA-PMA Approved
  • Engine: Lycoming IO-360
