Garmin AXIS Flight Display System Builder for Experimental Aircraft

AXIS flight displays are available in several display formats. Up to six AXIS displays can be installed in a single system. Each AXIS Display requires an install kit.

Please Select Primary Display:

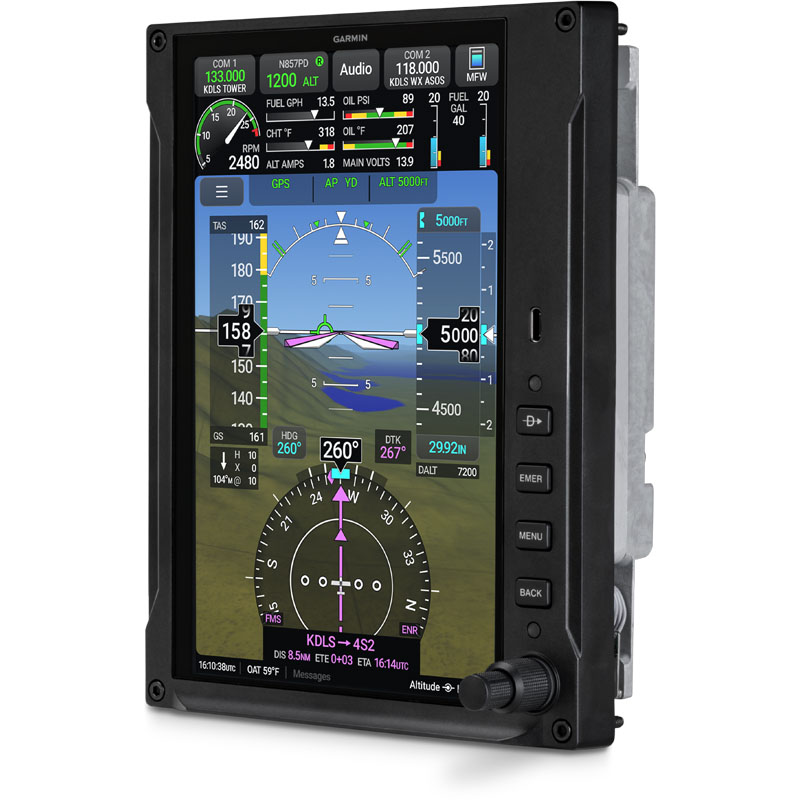

AXIS 8 inch Portrait Display - GDU 80PX

Non-TSO Experimental display. Requires installation kit.

AXIS 8 inch Landscape Display - GDU 80LX

Non-TSO Experimental display. Requires installation kit.

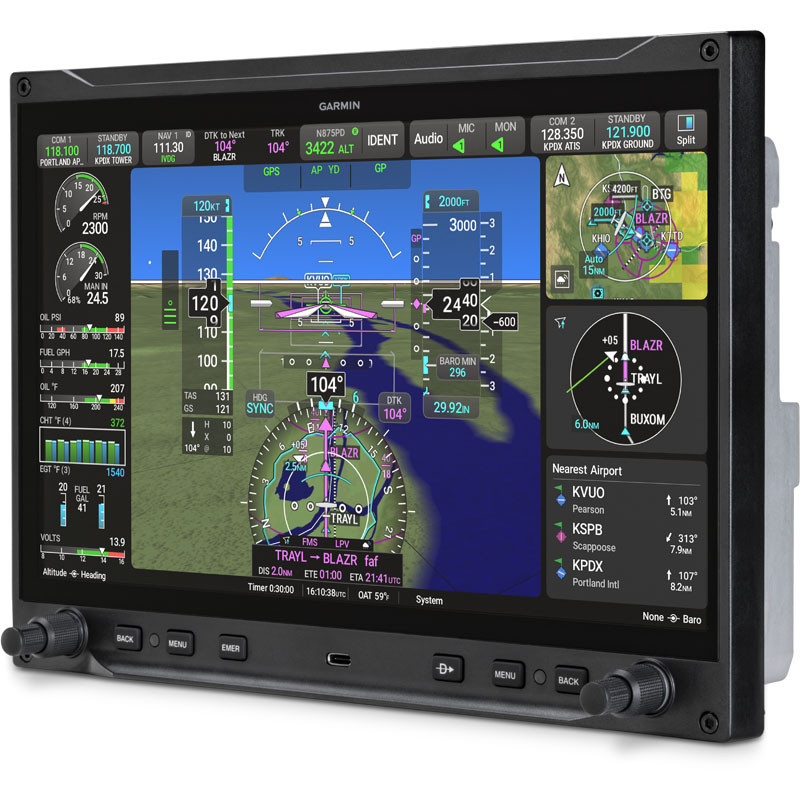

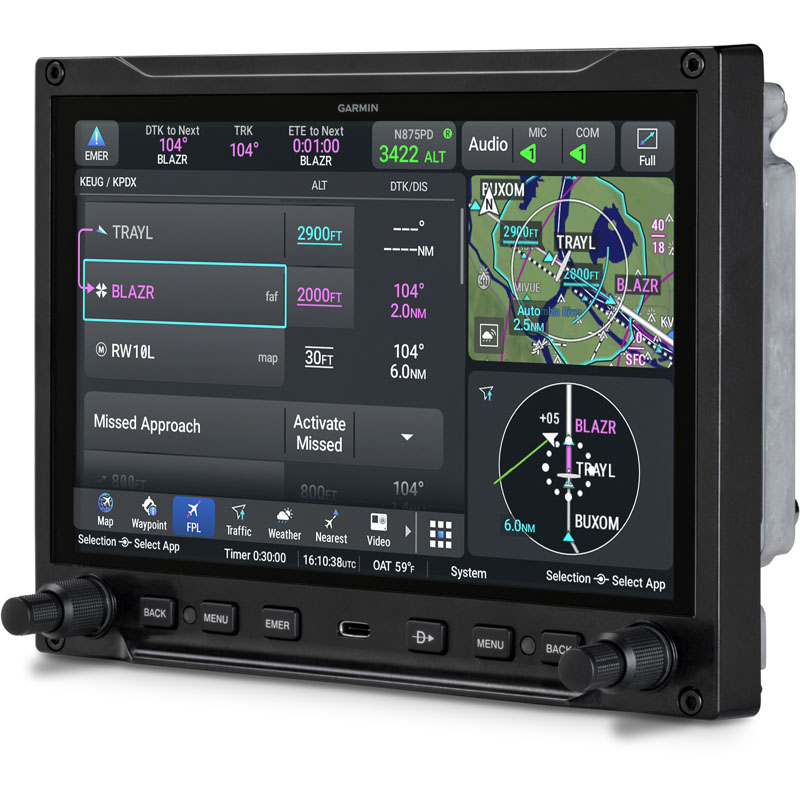

AXIS 11.6 inch Display - GDU 116BX

Non-TSO Experimental display. Large format layout.

AXIS 11.6 inch w/ IFR GPS/COMM & Audio - GDU 116C ⓘ TSO-C146e authorized navigator suitable for IFR GPS navigation and Comm radio.

AXIS 11.6 inch w/ IFR GPS/NAV/COMM & Audio - GDU 116NC ⓘ TSO-C146e authorized navigator suitable for IFR GPS navigation, VOR/ILS Nav, and Comm radio.

To provide critical flight data, AXIS flight displays utilize a kit of core sensors (ADAHRS, magnetometer, temp probe). Aircraft exceeding 300 KIAS should select the high speed GSU 25D kit.

Please Select Primary Sensor Kit:

Supplemental Sensors & Hardware (Optional):

Product	Part #	Price	Add
GSU 25C Unit Only (Supplemental) ⓘ Standard resolution Air Data, Attitude, and Heading Reference System (ADAHRS) unit for aircraft under 300 KIAS. Standalone unit.	010-01071-55	$910.00 Add to cart for current price	Added ()
GSU 25D Unit Only (Supplemental) ⓘ High-speed resolution ADAHRS unit specifically designed for aircraft exceeding 300 KIAS. Standalone unit.	010-01071-56	$2443.00	Added ()
GSU 25 Connector Kit ⓘ Contains all required pins, backshells, and connectors required to complete wiring to a GSU 25 ADAHRS.	K10-00181-00	$108.85	Added ()
GMU 11 Unit Only (Supplemental) ⓘ Provides highly accurate magnetic heading data to the ADAHRS. Communicates via RS-232.	010-01788-00	$410.00 Add to cart for current price	Added ()
GMU 11 Install Kit ⓘ Hardware required to securely mount and wire the GMU 11 magnetometer.	011-04349-90	$74.75	Added ()
GMU 22 Install Kit ⓘ Hardware required to securely mount and wire the GMU 22 high-performance magnetometer.	011-00871-10	$120.00 Add to cart for current price	Added ()
Kit, GAD 13, GTP 59, Connection Kit ⓘ Complete kit to add Outside Air Temperature (OAT) via a GAD 13 adapter and GTP 59 probe. Ideal for systems sharing data with a G5.	010-02203-K0	$560.00 Add to cart for current price	Added ()
GAD 13 Unit Only ⓘ Standalone OAT adapter unit. Requires probe and wiring separately.	010-02203-00	$170.00 Add to cart for current price	Added ()
GAD 13 Connector Kit (9 Pin) ⓘ Standard 9-pin sub-D connector kit required for the GAD 13 installation.	011-03002-10	$65.75	Added ()

AXIS displays connect to engine sensors via a GEA engine interface. Select your comprehensive engine package below. Packages include the GEA 110 firewall-mounted unit, Install Tray, Connector Kit, and the respective sensor kit.

Please Select Primary Engine Package:

Sensors include: CHT, EGT, oil temp, fuel flow, ammeter shunt, oil pressure, manifold pressure.

Sensors include: EGT, fuel pressure, manifold pressure, ammeter shunt, RPM signal.

Supplemental Engine Components & Sensors (Optional):

Product	Part #	Price	Add
GEA 24B Unit Only ⓘ Provides the ability to monitor numerous analog, digital, and discrete signals. Two GEA 24 units may be installed for engines with more than 6 cylinders, or twin-engine applications.	010-02770-00	$975.00 Add to cart for current price	Added ()
GEA 24 Connector Kit	011-02886-00	$180.00 Add to cart for current price	Added ()
GEA 110 Connector Kit, Sealed ⓘ Select this environmentally sealed variant if the GEA 110 is being remotely mounted firewall-forward.	011-03527-51	$565.00	Added ()
Pressure Sensor, GPT 75G ⓘ 0-75 PSI pressure sensor, commonly used for oil pressure.	011-05783-20	$308.00	Added ()
Pressure Sensor, GPT 15G ⓘ 0-15 PSI pressure sensor, commonly used for fuel pressure.	011-05783-10	$384.00	Added ()
Fuel Flow, 1/4 inch Female NPT ⓘ In-line turbine fuel flow transducer. Accurate for standard GA flow ranges.	494-10001-00	$485.00	Added ()
RPM, Hall Effect, Slick Magneto	494-50005-00	$149.75	Added ()
RPM, Hall Effect, Bendix Magneto	494-50005-01	$193.75	Added ()
Ammeter, Shunt, +/-50 mV, 100 amps	909-D0000-00	$74.75	Added ()
TIT, Type K Thermocouple, 7/16-20	494-70002-00	$111.75	Added ()
Carb Temp, RTD, 1/4-28	494-70005-00	$155.00	Added ()

When equipped with the combined Pitot/AOA probe, AXIS flight displays can provide you with real-time visual and audible indications of the airplane's margin to the critical angle of attack. The optional GI 260 AOA indicator can also be added to provide a separate glareshield mounted indication.

Please Select Pitot & AOA Hardware:

Product	Part #	Price	Add
GAP 26 Pitot/AOA Probe - Unheated ⓘ Combination Pitot and Angle of Attack (AOA) probe. Unheated version.	010-01074-00	$338.00	Added ()
GAP 26 Pitot/AOA Probe - Heated/Unregulated (14V) ⓘ Heated combination probe for 14V systems. Provides ice protection for regions where icing impingement is expected.	010-01074-10	$488.00	Added ()
GAP 26 Pitot/AOA Probe - Heated/Unregulated (28V) ⓘ Heated combination probe for 28V systems.	010-01074-60	$550.00 Add to cart for current price	Added ()
GAP 26 Pitot/AOA Probe - Heated/Regulated ⓘ Limits maximum tip temperature. Makes the probe safer if powered on the ground, and provides a discrete output for heat monitoring.	010-01074-20	$670.00 Add to cart for current price	Added ()
GI 260 AOA Indicator Display ⓘ Provides a separate glareshield mounted visual indication of Angle of Attack. Communicates via CAN bus.	010-01287-00	$355.00 Add to cart for current price	Added ()

AXIS flight displays can interface with advanced digital audio panels, remote mount COM radios, NAV/COMM receivers, and Sirius XM Weather & Traffic receivers.

Please select your desired Audio, Communication, and Data solutions:

Product	Part #	Price	Add
Audio Panels & Intercoms
GMA 245 Audio Panel ⓘ Panel-mounted digital audio panel with 6-place intercom system and Bluetooth input.	010-01318-03	$1770.00 Add to cart for current price	Added ()
GMA 245R Remote Audio Panel ⓘ Remote-mounted digital audio panel. Controlled only through the AXIS user interface, with no dedicated panel mounted controls.	010-01471-03	$1645.00 Add to cart for current price	Added ()
GMA 245R Remote Audio Panel (Marker Beacon) ⓘ Remote-mounted version that includes marker beacon functionality.	010-01471-13	$2226.00	Added ()
COM and NAV/COMM Radios
GNC 215 NAV/COMM Radio ⓘ Full VHF navigation capabilities, including VOR/ILS with localizer and glideslope. Slim 1.3-inch height form factor.	010-02481-01	$4975.00 Add to cart for current price	Added ()
GTR 205x COM Radio ⓘ Contains a built-in two-place intercom with alert audio and stereo music inputs. Communicates via HSDB.	010-03395-01	$2140.00 Add to cart for current price	Added ()
GTR 205xR Remote COM Radio ⓘ Remote-mounted version. Controlled entirely by AXIS flight displays. Contains built-in two-place intercom.	010-03396-01	$1640.00 Add to cart for current price	Added ()
Weather & Traffic Data Links
GDL 50R ADS-B Receiver ⓘ Remote-mounted receiver. Supports the display of FIS-B weather and dual frequency ADS-B traffic data.	010-01561-10	$950.00	Added ()
GDL 51R SiriusXM Receiver ⓘ Sirius XM Receiver. Provides Sirius XM based weather and can provide Sirius XM based music to the aircraft audio panel.	010-01561-50	$820.00	Added ()
GDL 52R ADS-B & SiriusXM Receiver ⓘ Combination remote receiver providing both ADS-B Traffic/Weather AND SiriusXM Weather/Music.	010-01561-30	$1365.00	Added ()
Standby Instruments & Accessories
Garmin G5 Standby Instrument (Unit Only)	010-01485-01	$1660.00	Added ()
Garmin G5 Battery Pack	010-12493-02	$280.00 Add to cart for current price	Added ()
Garmin G5 Installation Kit with LPM	010-12493-11	$123.75	Added ()
GA 35S GPS/WAAS Antenna ⓘ Required antenna for AXIS displays with an integrated IFR-certified GPS.	010-02639-00	$352.00	Added ()

Add a GFC 500X Autopilot system to your AXIS installation for integrated flight control capabilities.

Instructions:
1. Select a Mode Controller (Optional but recommended).
2. Add 1 GSA 28 servo per each desired control axis (pitch / roll / yaw damper).
3. Select 1 GSA connector kit per servo.
4. Add the appropriate mounting bracket kit for your airframe.

Product	Part #	Price	Add
Controllers & Installation Hardware
GMC 507 Controller Unit Only ⓘ Dedicated autopilot mode controller. Includes a built in AHRS unit that monitors critical flight parameters and disengages autopilot in case of disagreement.	010-01946-00	$1335.00	Added ()
GMC 507 Connector Kit	011-01824-01	$71.75	Added ()
GMC 507 Install Rack	010-12700-10	$55.00 Add to cart for current price	Added ()
Servos & Connectors (Select multiple for multiple axes)
GSA 28 Servo (Add 1 per axis) ⓘ Smart "brushless" DC servo motor. Highly reliable, features gear-train safeguards to prevent hard-overs.	010-01068-20	$995.00	Added ()
GSA 28 Connector Kit (1 Per Servo)	011-02950-00	$73.99	Added ()
GSA 28 Connector Kit, Right Angle	011-02950-01	$210.00 Add to cart for current price	Added ()
Mounting Hardware
GSA 28 Generic Install Kit & Mounting Bracket	011-02952-01	$168.75	Added ()
Mounting Kit: RV-6 Roll	011-02952-10	$165.00 Add to cart for current price	Added ()
Mounting Kit: RV-4/8 Pitch	011-02952-11	$160.00 Add to cart for current price	Added ()
Mounting Kit: RV-7/8/10 Roll	011-02952-12	$161.75	Added ()
Mounting Kit: RV-9 Roll	011-02952-13	$160.00 Add to cart for current price	Added ()
Mounting Kit: RV-6/7/9 Pitch	011-02952-14	$161.75	Added ()
Mounting Kit: RV-10 Pitch	011-02952-15	$160.00 Add to cart for current price	Added ()
Mounting Kit: RV-10 Yaw	011-02952-16	$690.00 Add to cart for current price	Added ()

Please select any additional system components or software enablements:

Product	Part #	Price	Add
Software Enablements
AXIS ChartView Enablement ⓘ Unlocks the ability to view Jeppesen terminal approach plates directly on the AXIS display. Requires Jeppesen subscription.	006-B5211-00	$2200.00	Added ()
AXIS SurfaceWatch Enablement ⓘ Provides visual and aural indications to help prevent taking off or landing on a taxiway, a runway that is too short, or the wrong runway.	006-B5211-01	$2000.00	Added ()
AXIS TAWS-B Enablement ⓘ Unlocks Terrain Awareness and Warning System Class B predictive forward-looking terrain and obstacle avoidance algorithms.	006-B5211-02	$8500.00	Added ()
Additional Accessories
GHA 15 Height Advisor ⓘ Uses radar technology to provide height above ground level (RAGL) information. GHA 15 AGL data is available up to 500 feet AGL.	010-02942-00	$2065.00 Add to cart for current price	Added ()
GAD 27 Electrical Control System ⓘ Provides low-voltage protection during engine start, as well as control of the flaps, trim, external lighting, and cockpit lighting.	010-01525-11	$720.00	Added ()
GCO 14 - Carbon Monoxide Detector	010-02975-01	$549.00	Added ()
