Garmin GA 27C Mcx Low-Profile Remote GPS Antenna

Add to Wishlist
Part# 11-00052
MFR Model# 010-10702-00

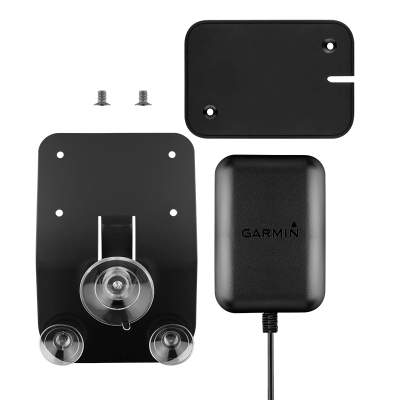

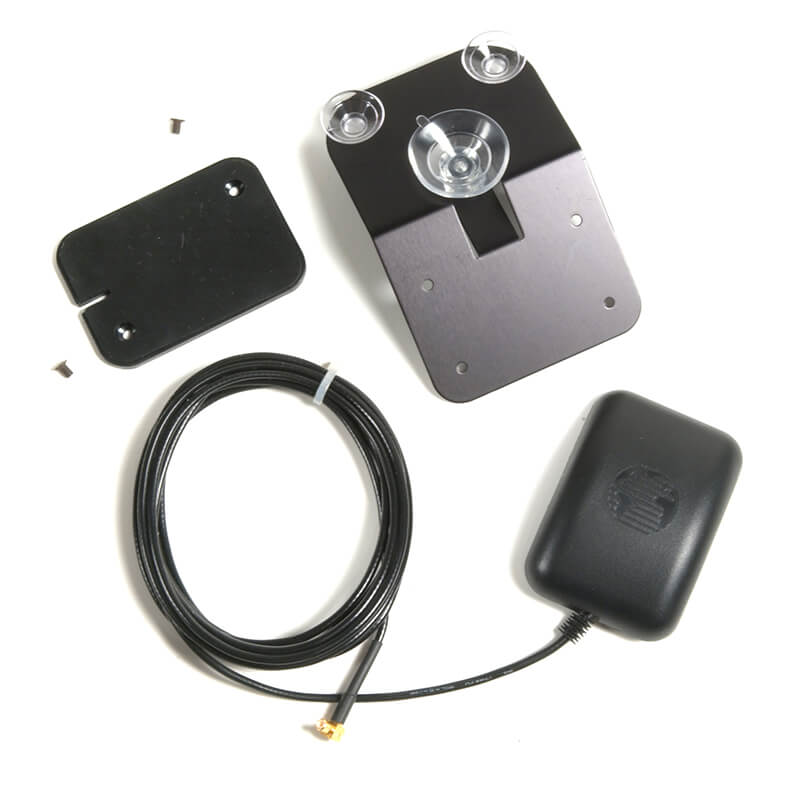

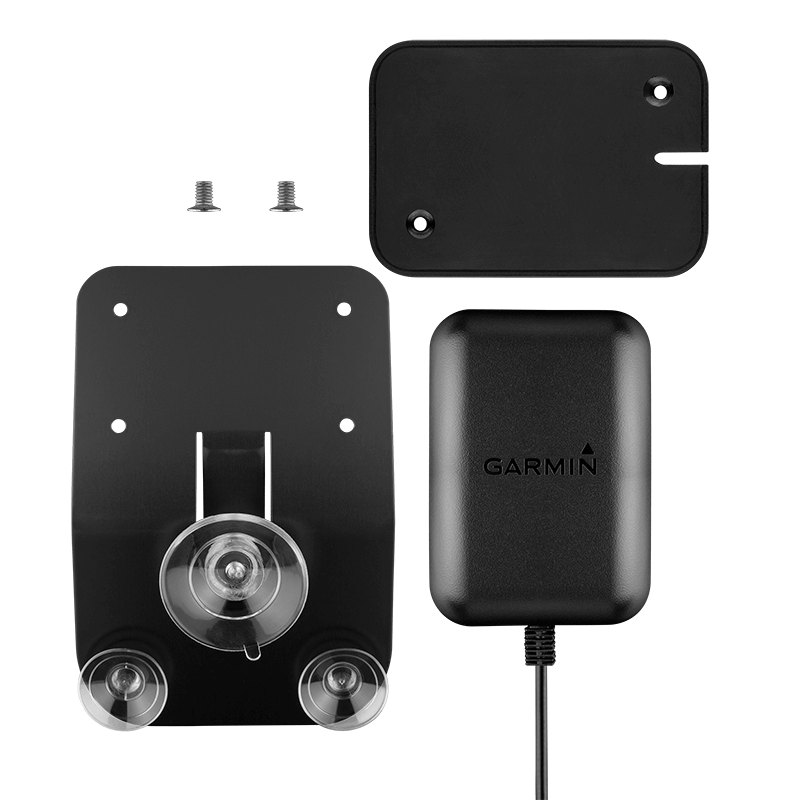

Get better signals while conserving battery power with this GA™ 27C low-profile remote antenna. Runs on a lower voltage so battery drain is minimized. Two mounting options include a magnetic mount for the outside of your vehicle or vessel and a suction mount to hold the antenna in place against the inside of your windshield or window. With 8 ft (2.44 m) of cable and MCX connector. Size: 2.75" (6.99 cm) L x 2" (5.08 cm) W x 0.75" (1.91 cm) H.

Compatible Devices

  • Garmin Aera 760, 660, 796, 795, 500, 510, 550, 560
  • Garmin GDL 39, 39 3D, 50
  • Garmin GPSMAP 695, 696



Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I already own this Garmin GA 27C antenna. Is it compatible with the Aera 660?

Yes, this antenna can be used with the aera 660.

Q: Is the Garmin GA 27C MCX remote GPS antenna a WAAS antenna?

No, this is just a GPS antenna. For WAAS you can view the GA 35 p/n: 11-09701.

Q: What is the difference in the GA 26C and the GA 27C? I will be using it with the Area 660

The difference between the GA26c and the GA27c are the connectors:
GA 26C - 8 feet of cable and BNC connector
GA27C - MCX Connection

Q: I am buying an Aera 660 and a GDL 51 - should I buy a GA 26C or GA 27C antenna?

Part # 11-00052 is the MCX connector that allows for it to connect to either unit.

Q: Does the 660 replace the capability of the 696 and receive XM radio and weather? Garmin no longer provides technical support of the 696 which was perfect for my needs. I need to know if the power cord plug for 696 is compatible with the 660. My PA32 was wired so I can use my 696 on an as needed basis. Once plugged in it communicated with my WAAS 430 and the XM reciever and the 696 provided in-flight entertainment. Does the 660 provide the same compatibility?

The 660 can replace the 696. However, it will require a new bare wire cradle to have the same functions you currently have. For the XM receiver you will need a separate unit such as the GDL51 which connects to the 660 for XM capability.

Q: Will this Garmin GA 27C antenna pick up ADSB TIS-B uplink data and Air-to-Air ADSB data, or is it just a GPS antenna?

This antenna is a GPS antenna only. No ADS-B signal will be received.

Q: Will this Garmin GA 27C work with the 760?

Yes, it will work with the 760.
