|Volts||Amps||Drive||Alt. PN||Spruce PN||Price||Buy|
|12||50||4 Stud, 6 Spline, Square Pad||6555T|
|12||50||Round Pad like Delco config.||6560T|
|12||50||6 Stud, 16 Spline, Round Pad||6565T|
|24||50||4 Stud, 6 Spline, Square Pad||7555T|
|24||50||6 Stud, 16 Spline, Round Pad||7565T|
|24||70||4 Stud, 6 Spline, Square Pad||7655T|

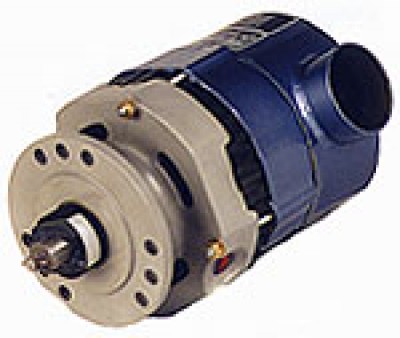

The Jasco alternator is STC'd for many aircraft including the early Cessna 150, 172, and 175 series as well as Beech Model 35's with early E series Continental engines. Applicable to Continental C-90, 0-200 and 0-300 engines. This kit includes alternator, voltage regulator, over-voltage control, and STC documents.
For STC on CESSNA SA971WE, BEECH SA999WE, NAVAJO SA1246WE: Visit www.faa.gov
Available for 14V systems only. Well-proven over many years of use in a variety of aircraft. In stock for immediate shipment. STC'd for Cessna 150-170, 172, 175, Beech 35 Series, Navion A. Skytronics Kit #6560-1.
WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov
Worked great to upgrade my 53 Bonanza. Be sure to look at the STC wiring diagram and get the required sw/breakers as well as 2 scat tube and flange.
JASCO ALTERNATOR KIT 6560-1 12V
A very good alternative to the older generator.
What can I say, it’s an alternator. This I can say about it, you better have patience to remove and install the inboard upper bolt. The disappointment was that QAA or Spruce packed the wrong gasket in the kit. This facilitated a few more phone calls and another delay. Actually, I’m giving Spruce too many stars for customer satisfaction. Let’s see if it works now. BTW, they recommend replacement at 1,000 hours of this unit.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, part # 07-00735 will be the alternator only. If you would like the full kit, please order part # 7555-1.
Yes it is included in the box. There is an STC list on the website that shows the STC number for different aircraft. This kit includes alternator, voltage regulator, over-voltage control, and STC documents.
