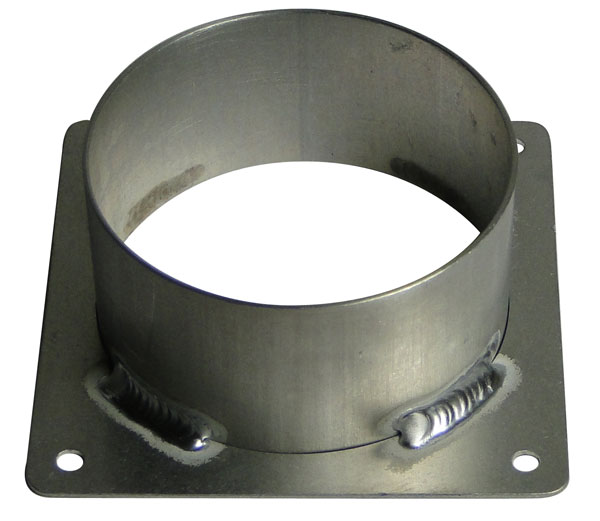

|2” ALUMINUM FLANGE - Accepts 2” scat tube. Flange allows riveting to firewall, baffles, etc. Wt: 0.2 oz.|
Worked perfect as an air port to 2 scat hose.
2" ALUMINUM FLANGE
Its just what it claims to be.
Worked perfectly to repair carb heat on 0-320
Good fix and good quality with heavy enough material to be durable as far as replacing the 2 nipple that broke off the otherwise new and unused heat box that was on the airplane. The rivet holes will be inside the original ones as they didnt match up. I was worried that this would interfere with the flapper valve but it did not. I did not have to remove the airbox to repair it with this. Just mark the four holes, auto center punch them and pop rivet this in place. Vacuum out the drill shavings after its done.
Works great for fixing Cessna Carb Heat Box
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, the OD is 2". The ID is approx. 1-3/4". The overall height is approx. 1".
This would have the dimensions 2-1/2"x2-1/2". With the distance between the adjacent holes be 2.1".
