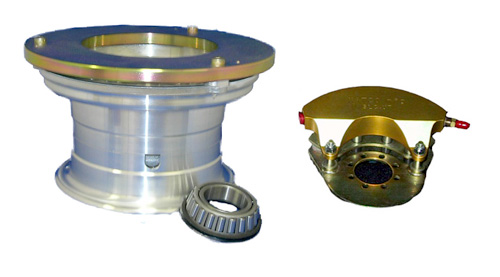

MATCO mfg produces a superior 5 inch wheel and brake assembly for use with aircraft requiring less than 1420 lbs per wheel. This model uses 1.25 inch TAPER/ROLL bearings. (Check the product comparison table for other bearing and caliper configurations).Dimensions
The W50LT is a 5 inch wheel with 4.775 inch width with an additional 1.23 inch caliper spacing. Bearing spacing is 3.084 inches and axle spacing is 1.410 inches. The total weight of this wheel and brake assembly is 9.2 pounds. The bearing axle diameter is 1.25 inches.
The W50LT is designed for the following standards:
Static Capacity: 1420 LBS
Load Limit: 4260 LBS
Maximum Accelerate/Stop Kinetic Energy: 337932 ft-lb
Torque Rating (@450 PSI): 4266 in-lb
Product Comparison Table
