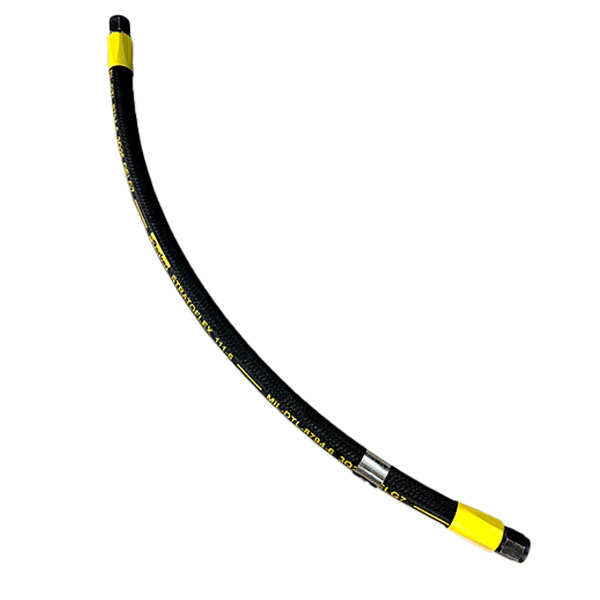

COOLER TO ENGINE HOSE ASSEMBLY 111417-6S-0210

$99.85/Each
Part# 05-12124
MFR Model# 111417-6S-0210
OEM/
Stratoflex
DescriptionApplicationPart Number
S1167-6-0210/
111417-6S-0210
Cooler To Engine
Hose Assembly
Cessna 172/F172/P172
172060224 thru 17267584
Cessna 172/F172/P172
F17200754 thru F17201514
05-12124

Overview

Parker Stratoflex hose assemblies can be purchased by aircraft make, model, serial number and system, and also for custom applications. Aircraft Spruce's Supplier is an FAA approved hose assembly fabricator of Parker Stratoflex products with a certified hose shop for fabricating to spec.

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Specifications

Specifications: Hose meets or exceeds the requirements of MIL-H-8794. Fittings meet the requirements of MIL-A-5070. Hoseassemblies meet or exceed requirements of MIL-H-8795. See information bulletin IB-1030 for TSO approvals.

Construction:
  • Tube: Seamless synthetic rubber adhesive.
  • Reinforcement: One fiber braid and one high tensile steel wire braid.
  • Cover: Fiber braid impregnated with oil and mildew resistant rubber adhesive.
Identification: Stratoflex name and part number; specification number, size number, quarter and year of manufacture; and federalidentification number (CAGE).

Application: Aircraft hydraulic, pneumatic, coolant, fuel and oil systems. See MS33620 and MIL-H-8795. Temperature Range: Size -3 thru -12: -65 to +250 F (-54 to +121 C); Size -16 thru -48: -40 to +250 F (-40 to +121 C)
