LORD ENG MOUNT # J-6230-1

$232.95/Each
Part# 07-01138
MFR Model# J-6230-1
DescriptionEngine Mount
No.
Spruce Part
No.
Lord Elastomeric Engine MountJ-6230-107-01138

Overview

Note: Please review application guide below to confirm correct part number for your aircraft.

Lord Engine Mount Application Guide (PDF)

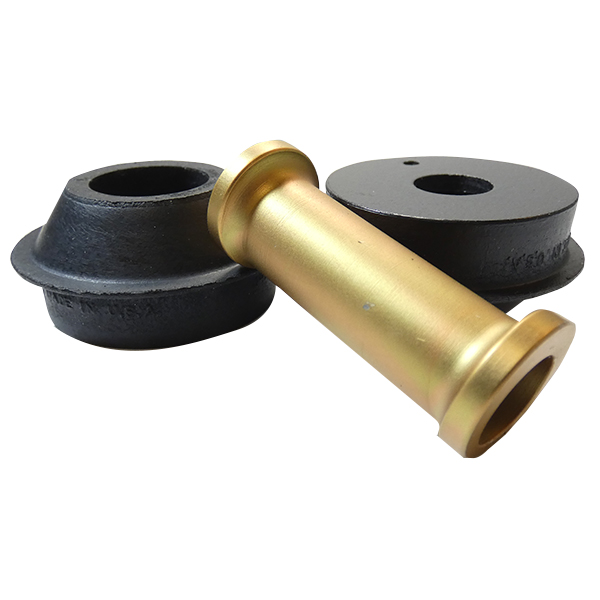

These compression type couplings consist of bonded rubber joints pressed into the sockets of metal hubs. These dynafocal engine suspensions provide proper flexible support to isolate engine vibrations and reduce noise transmission to airframe structure in all aircraft applications. Careful design assures maximum strength to hold the engine under ultimate load and emergency conditions. Suspensions also distribute loads in most desirable patterns, control engine motions, accommodate thermal expansion and manufacturers’ tolerances.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Warranty

  • All Parker Lord general aviation engine mounts come with a 5-year limited warranty, which is retroactive. Included in the prorated warranty are engine mounts for Cessna, Cirrus, Mooney, Piper and all other general aviation models serviced through official Parker Lord distributors. Experimental or acrobatic aircraft are not covered under this warranty. Normal wear and tear expected to occur with regular use and maintenance is also excluded. All warranty claims are pending evaluation by Parker Lord. Please contact customer service for assistance with any warranty claim.
  • Life of the Part since Purchased0-36 Months37-42 Months43-48 Months49 - 54 Months55 - 60 Months61 Month and more
    Amount Reimbursed100%50%40%25%10%0%

Documents

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Go to the lord mount website for applicability. J7764-20 fit my maule m5-235 j1a5d. Fit fine. Didnt realize how sagged and compressed my old ones were till I got these. Damn are they expensive though. Same price here as anywhere else I looked.

Andrew H
June 29, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: when ordering engine mounts. It shows two. Is this a kit part number or do i need to order four?

Engine mounts are sold individually. If you require 4 units, you will need to order 4. Each mount has two halfs and a spacer if required.

Q: What is the shelf life of these Lord engine mounts counting from cure date?

Per the supplier: shelf life on the Lord engine mounts is 20 years.

Q: I need dimensions for the lord mount J-10520-1, do you have them?

The approximate dimensions are: 2-5/8" L x 2-5/8" W. 7/8" H. 1-1/4" diameter of center hole.

Q: Does these Lord mounts come in kits? How many comes in each kit?

No, these are priced and sold individually. There will be 2 pieces in the box as a sandwich kit, but if you required 4 for your engine, you would need to order quantity 4.

Q: I have J9868-5 lord mounts and would like to know if part number 08-00374 is the complete kit for my engine. Is this 4 pair for a complete set or are they priced and sold individually? Thanks

These mounts are priced and sold individually. For a set of 4, you would need to order quantity 4 of 08-00374.

Q: Is there a way to reference the bolts that would go with these Lord mounts?

Engine mount bolts are not always the same length for every aircraft application. The size is in an aircraft parts manual, or the mechanic will need to take measurements on the aircraft to determine the correct bolts.

Q: Does Mounting J-7402-6 come complete with the nut & bolt?

No, this is the mount only. The attaching hardware is sold separately.

Q: Do these Lord mounts come with installation instructions such as orientation and torque setting? I have read that these have to be positioned correctly or can be installed upside down?

They do not. That info should be in your aircraft maintenance manual.
