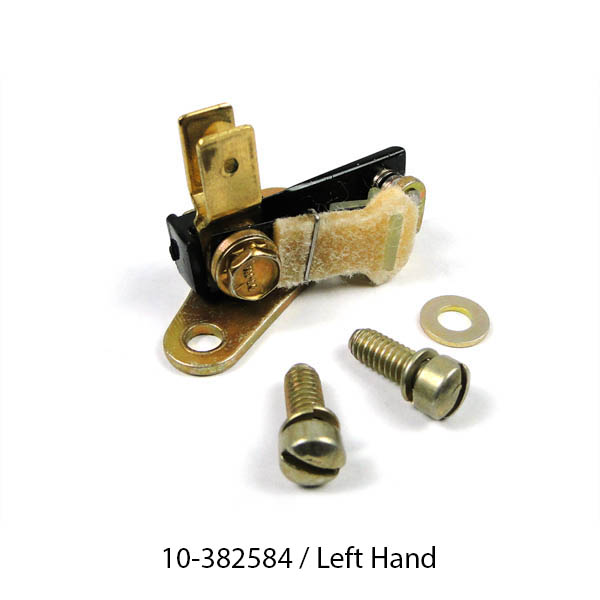

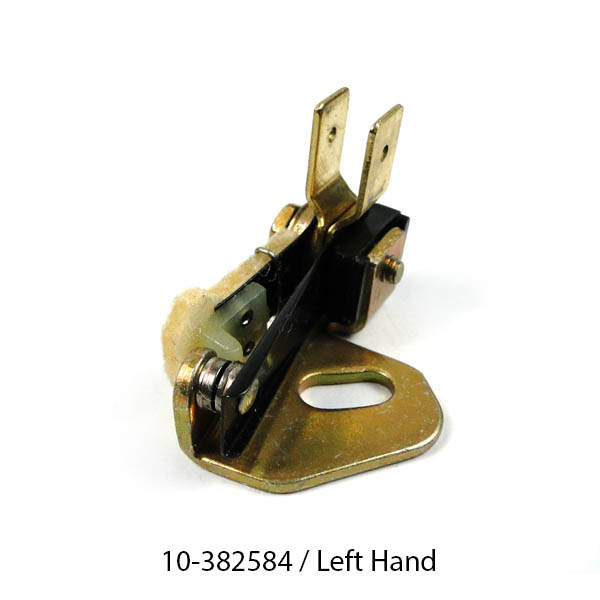

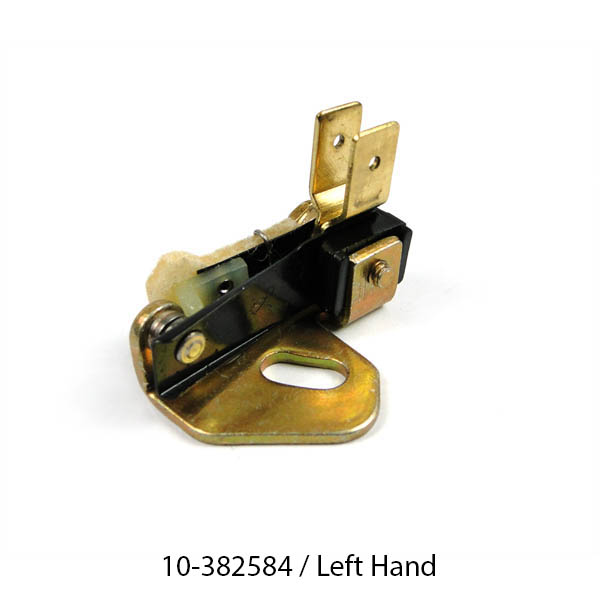

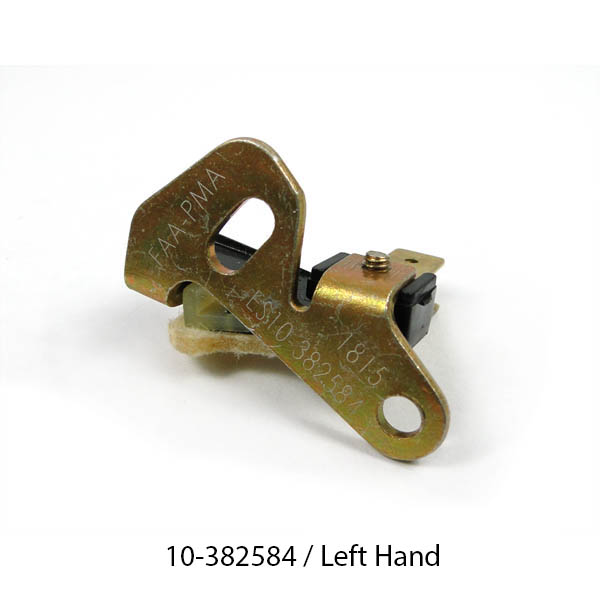

PowerUp ES10-382584K Breaker Point Kit
MFR Model# ES10-382584K
FREE Shipping
Overview
| Replacement Parts for Bendix Magnetos from PowerUp Aircraft Ignition Systems. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
| 500 Hour Repair Kit Contents S-20 & S-21 | Deluxe Repair Kit Contents S-20 & S-21 |
|---|---|
| 1-CONTACT ASSY. KIT 1-CAPACITOR 2-BEARINGS 1-OIL SEAL 1-OIL SLINGER 3-WOODRUFF KEYS 1-COTTER PIN 1-CAM SCREW 1-FELT WASHER 1-FELT STRIP 1-SNAP RING 1-CARBON BRUSH *Note – The component part kits contain installation hardware. | 1-CONTACT ASSY. KIT 1-COIL KIT 1-DIST. BLOCK KIT 1-GEAR KIT 1-CAPACITOR 2-BEARINGS 1-OIL SEAL 1-OIL SLINGER 3-WOODRUFF KEYS 1-COTTER PIN 1-CAM SCREW *Note – The component part kits contain installation hardware. |
| 500 Hour Repair Kit Contents S-24 & S-25 | Deluxe Repair Kit Contents S-24 & S-25 |
| 1-CONTACT ASSY. KIT 1-CAPACITOR 2-BEARINGS 1-OIL SEAL 1-OIL SLINGER 3-WOODRUFF KEYS 1-COTTER PIN 1-CAM SCREW 1-FELT WASHER 1-FELT STRIP 1-SNAP RING 1-CARBON BRUSH *Note – The component part kits contain installation hardware. | 1-CONTACT ASSY. KIT 1-COIL KIT 1-DIST. BLOCK KIT 1-GEAR KIT 1-CAPACITOR 2-BEARINGS 1-OIL SEAL 1-OIL SLINGER 3-WOODRUFF KEYS 1-COTTER PIN 1-CAM SCREW *Note – The component part kits contain installation hardware. |
| 500 Hour Repair Kit Contents S-200 | Deluxe Repair Kit Contents S-200 |
| 1-CONTACT ASSY. KIT* 1-CAPACITOR 2-BEARINGS 1-OIL SEAL 1-OIL SLINGER 3-WOODRUFF KEYS 1-COTTER PIN 1-CAM SCREW 1-FELT WASHER 1-FELT STRIP 1-SNAP RING 1-CARBON BRUSH *Note – The Repair Kit and Deluxe Repair Kit for the Bendix-200, -201, and -202 Series Magnetos contain two sets of Contact Assy. Kits | 1-CONTACT ASSY. KIT* 1-COIL KIT 1-DIST. BLOCK KIT 1-GEAR KIT 1-CAPACITOR 2-BEARINGS 1-OIL SEAL 1-OIL SLINGER 3-WOODRUFF KEYS 1-COTTER PIN 1-CAM SCREW *Note – The Repair Kit and Deluxe Repair Kit for the Bendix-200, -201, and -202 Series Magnetos contain two sets of Contact Assy. Kits |
| 500 Hour Repair Kit Contents S-1200 | Deluxe Repair Kit Contents S-1200 |
| 2-WASHER 1-CARBON BRUSH ASSY 1-FELT STRIP 1-O RING 1-FISH PAPER 4-SCREW 2-BEARING 1-CONTACT ASSY KIT(S) 1-GREASE PACKET 1-FELT WASHER 1-COTTER PIN 1-WOODRUFF KEY 2-SNAP RING 1-OIL SLINGER 1-CAPACITOR *Note – The Repair Kit and Deluxe Repair Kit for the Bendix-200, -201, and -202 Series Magnetos contain two sets of Contact Assy. Kits | 2-WASHER 1-CARBON BRUSH ASSY 1-O RING 1-FISH PAPER 4-SCREW 2-BEARING 1-CONTACT ASSY KIT(S) 1-GREASE PACKET 1-FELT WASHER 1-COTTER PIN 1-WOODRUFF KEY 2-SNAP RING 2-COIL WEDGE 1-OIL SLINGER 1-COIL ASSY 1-BLOCK KIT 1-CAPACITOR |
Documents
- PowerUp – CAT (Bendix) Repair Kits Application Data for S-20 and S-21 Series Magnetos (PDF)
- PowerUp – CAT (Bendix) Repair Kits Application Data for S-24 and S-25 Series Magnetos (PDF)
- PowerUp – CAT (Bendix) Repair Kits Application Data for S-200 Series Magnetos (PDF)
- PowerUp – CAT (Bendix) Repair Kits Application Data for S-1200 Series Magnetos (PDF)
- Warranty Form
Reviews
👌👍👌👍👌👍
Verified Purchase
PowerUp ES10-382584K Breaker Point Kit
We have kept the Kelly ES10-382584 Breaker Points in our inventory for some time now. Primary reason for the switch from the TCM 382584 was due to finding the contacts having significant airgaps on closed surfaces. Whereas the Kelly components did not have any significant gaps visible.
Verified Purchase
PowerUp ES10-382584K Breaker Point Kit
