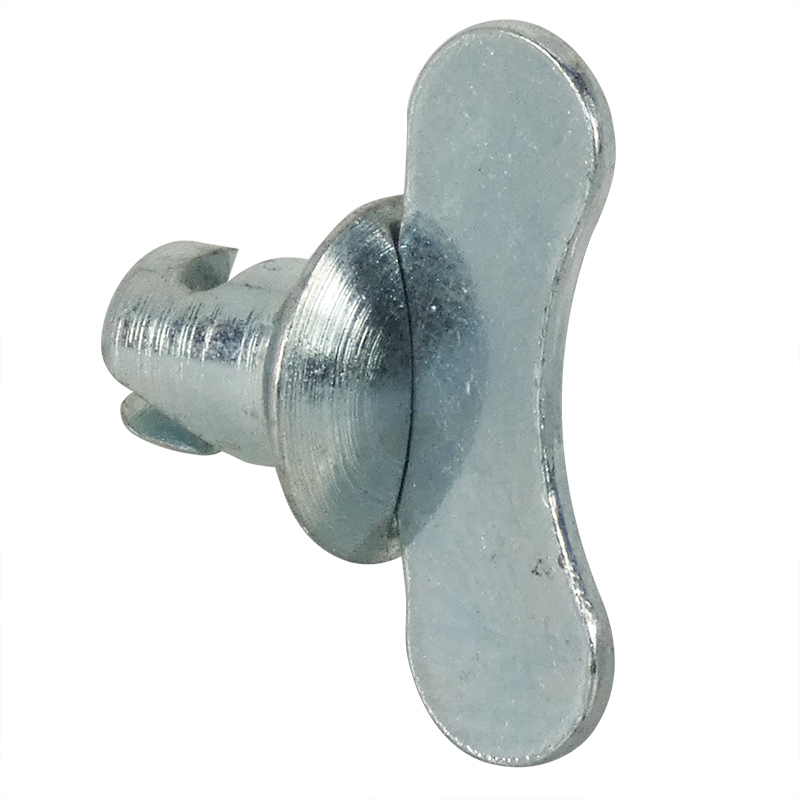

AJW4-25 CAD WING HEAD STUD

$2.48/Piece
Part# AJW4-25
MFR Model# D4-AJW4-25
Model No.ABLGrommets
& Snap
Rings
SpringsCat
#
121J-W425-Z3C.250.100.250GA4-225, 250, 275, 300 GP4B, GH4 SR4SS SX-523SSS4-200, 225AJW4-25*

Overview

(A, B, L dimensions for AJW are same as for AJ; P, Q, R dimensions given are for wing head)

CAD PLATED FASTENERS ARE NO LONGER AVAILABLE DUE TO ENVIROMENTAL REASONS.

*No longer available after our current stock is depleted. Please order next longer size.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

Very small order treated as a significantly large order. Fast, considerate service

James C Verified Purchase

AJW4-25 CAD WING HEAD STUD

February 8, 2022

we received the order on time, no issues with part or paper work.

Pam B
August 11, 2020

I am happy that studs were available. Super fast shipping, Excellent dimensional guide on the web. I had to contact Customer Support to correct my mistake and got immediate response to my request. Thank you for outstanding service!

Stan M
August 10, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is being offered on this page? The wing head stud only or a kit? By my measurements it looks like I need 121J-W440-Z3C wing head stud. I have lost two would like to buy 6.

The prices listed here are for the wing head stud only. Our part number for the wing head stud is AJW4-40. The current price of $3.55 is for one wing head stud. (May 7, 2013)

Q: What tools does it take to remove and install the dzus wing style fasteners?

We offer the installation "C" clamp, p/n 12-02272, to use with specific size grommet dies, to install Dzus studs, but we do not have any removal tools.
