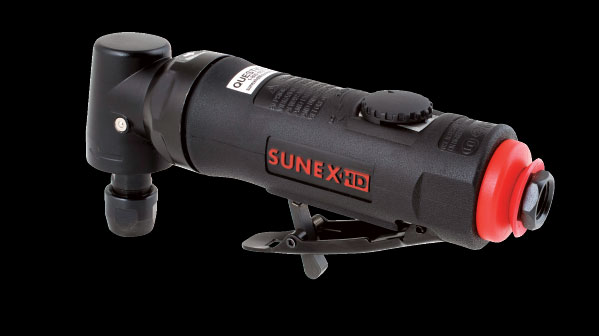

Sunex 1/4" 0.5Hp Angled Die Grinder

Add to Wishlist
Part# 12-03192
MFR Model# SX5206


The new Sunex HD ®1/4” 0.5hp line of Die Grinders provides all of the durability, features, and power required for today’s demanding applications. With the powerful 0.5hp motor, you are given the torque to get through even the toughest material and twice the horse power of the average die grinder.

The speed control dial and soft composite handles enhances your ability to complete any job quickly and efficiently. With these top of the line products, you will find all of the features and speed you need to get the job done right the first time. 2 Year Limited Warranty.


  • Up to 22,000rpm of speed to get the job done quickly
  • 0.5hp Motor for the torque to get through the toughest materials and twice the horse power from average die grinders
  • Soft composite cover to help keep the tool from getting cold during long usage
  • Speed control dial for adjusting the speed to specific applications


  • Collet Size in.: 1/4
  • Max Free Speed (rpm): 18,000
  • Motor Size (hp): 0.5
  • Overall Length in. (mm): 7 (1278)
  • Weight lbs.(kg): 1.5 (0.7)
  • Avg. Air Consumption cfm (l/min): 3.1 (88)
  • Sound Pressure (dBA): 86
  • Vibration (m/s2): <2.5
  • Air Inlet Size NPT (in.): 1/4
  • Min. Hose Size in.(mm): 3/8 (10)
