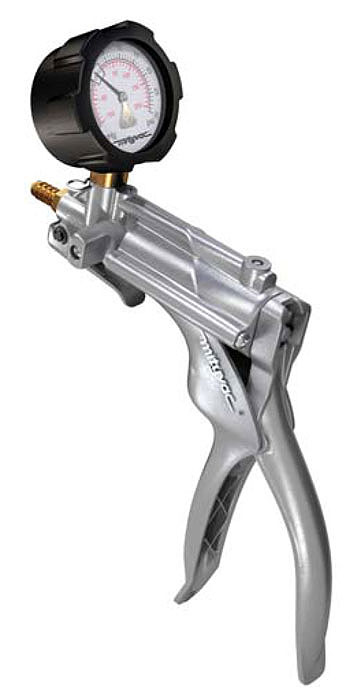

Silverline Elite Hand Vacuum / Pressure Pump With Gauge

$104.75/Each
Quantity
Add to Wishlist
Part# 15-08422
MFR Model# MTY MV8510

Overview

Silverline Vacuum/Pressure Pump, 16cc w/ gauge

Mityvac vacuum gauges are scaled 0 - 30 inches of Mercury (0 - 100 kPa). Compound gauges included on dual vacuum/pressure converter pumps are scaled 0 - 30 psi (0 - 200 kPa) pressure, and 0 - 30 inches of Mercury (0 - 100 kPa) vacuum.

All Mityvac pumps produce vacuum at the front port. Dual converter pumps are capable of producing vacuum or pressure at the front port. A rotating knob on the side of the pump allows the operator to switch between vacuum and pressure. Dual converter pumps include a compound gauge for indicating levels of both.

All Mityvac pump vacuum/pressure ports fit standard 1/4" (6.4 mm) ID tubing.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Provides either vacuum or pressure with equal precision and convenience
  • Modern, ergonomic design for comfortable, long-term use
  • One-finger lever vacuum/pressure release
  • Field serviceable – standard maintenance kits and replacement parts available
  • Includes durable, accurate gearless diaphragm style pressure/vacuum gauge
  • Durable die cast construction

Specifications

  • Pump Displacement: 1 in3 (16cc) per stroke
  • Max. Pressure: 30+ psi, 207+ kPa
  • Vol. per Stroke: 1 cu. in. / 16cc
  • Material: Aluminium / Zinc
  • Gauge1: Yes
  • Dual Converter2: Yes
  • CE Certified: Yes
  • Weight: 2.5 lbs 1.3 kg
  • Country of Origin: China, Designed and quality controlled in the USA

Applications

  • Vacuum & pressure related engine performance diagnostics and tune-ups
  • Brake bleeding
  • Fluid transfer, evacuation, and sampling

In The Box

  • Silverline Elite hand vacuum/pressure pump w/ 2” (50 mm) compound gauge w/rubber boot
  • Service Sheet

Reviews

Handle to cylinder shaft retaining pin fell out twice . Reinserts easily but should be tighter fit to stay in.

Thomas H
July 29, 2019
