Van Sant Vise And Grinder Mount With Table Receiver

$114.95/Each
Add to cart for current price
Quantity
Add to Wishlist
Part# 12-05413
MFR Model# TT-RM-COMBO

Overview

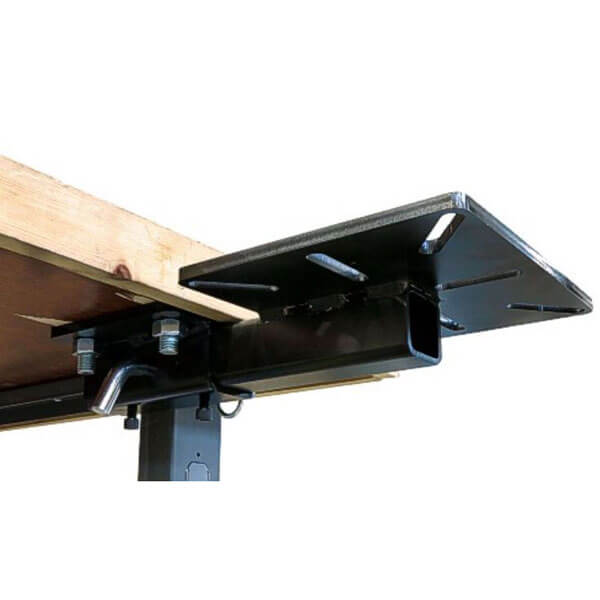

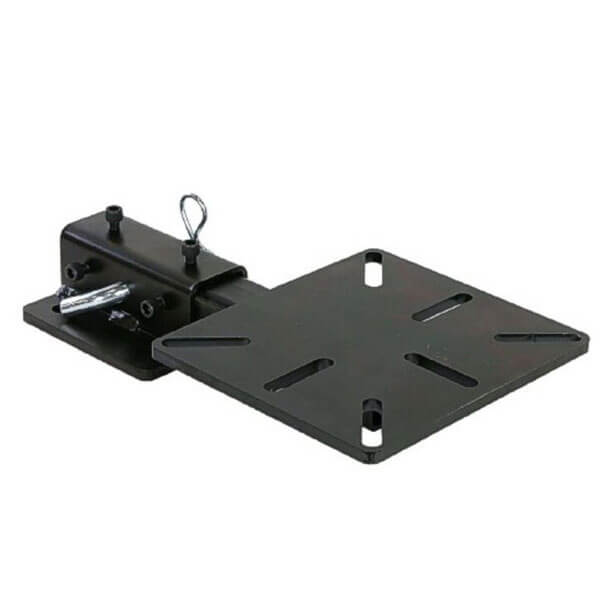

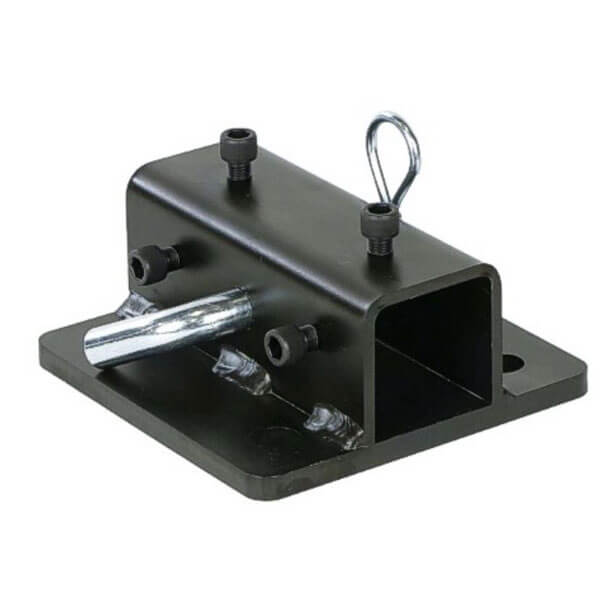

Keep your work surface clear and eliminate the need for dedicated machine stands with this handy receiver style tool mount. The receiver portion features a 6 inch square mounting surface with 5/8 diameter holes on 4 inch centers. It can be easily attached to your own workbench above or below the work surface. The hole pattern fits directly on popular Buildpro, or Certiflat welding tables. The receiver also includes four jam bolts to produce a rock-solid fit for the tool mount.

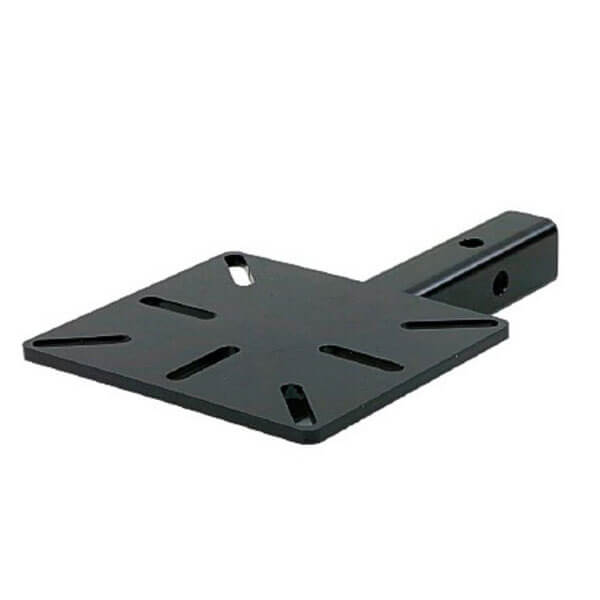

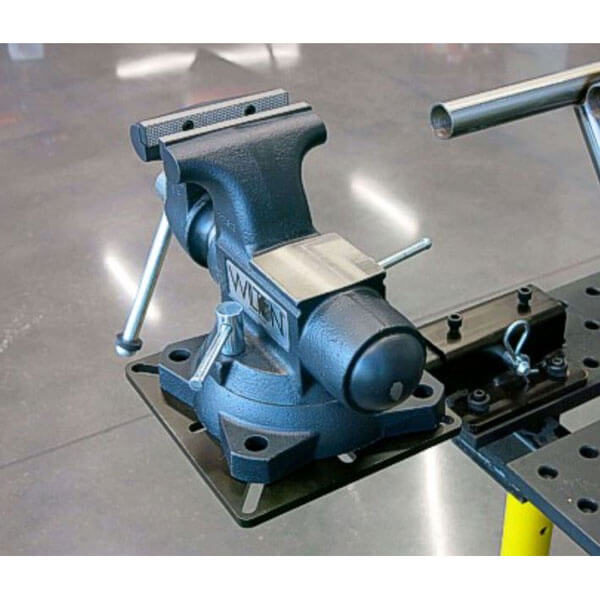

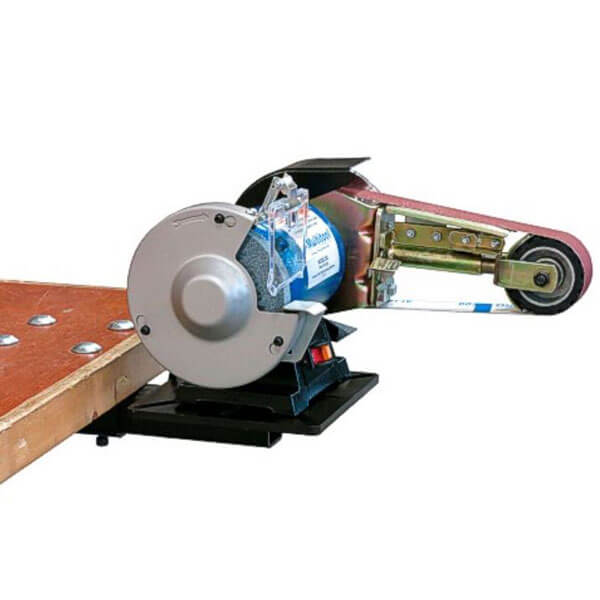

The included tool mount is constructed from 2x2 3/16 wall square tubing and a 3/8 inch thick steel plate measuring 8.5 x 9.5 inches. The mounting plate features both 90 and 120 degree slots to accommodate a wide variety of tools, or you can drill your own holes as needed.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Weight (pounds): 18
  • Dimensions (LxWxH): 13" x 9.5" x 2.5"
  • In The Box

    • Receiver
    • Tool Mount
    • 4 jam bolts
    • 5/8 hitch pin
