Van Sant - Vise And Grinder Mount With Wall Receiver

$134.95/Each
Add to cart for current price
Quantity
Add to Wishlist
Part# 12-05414
MFR Model# TT-RM3-COMBO

Overview

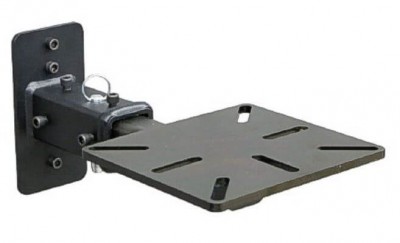

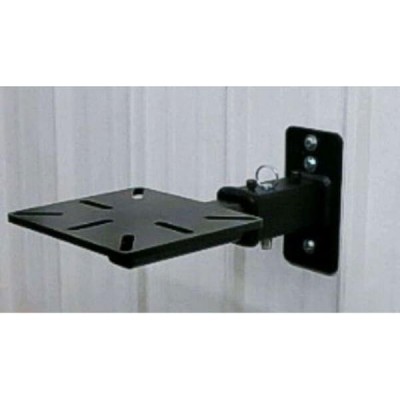

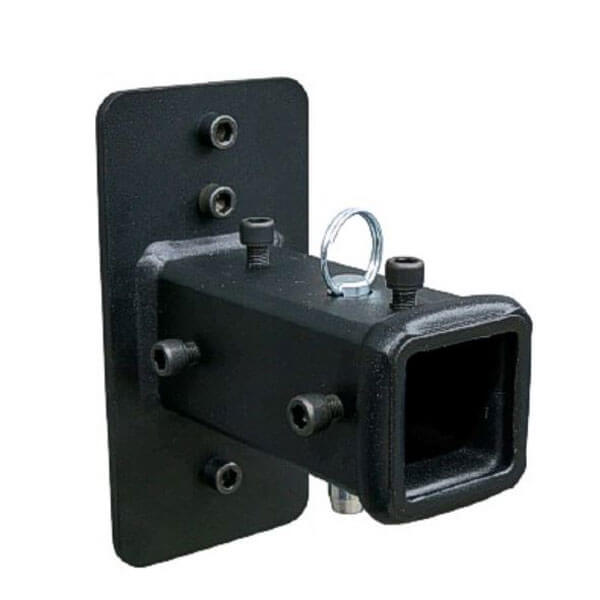

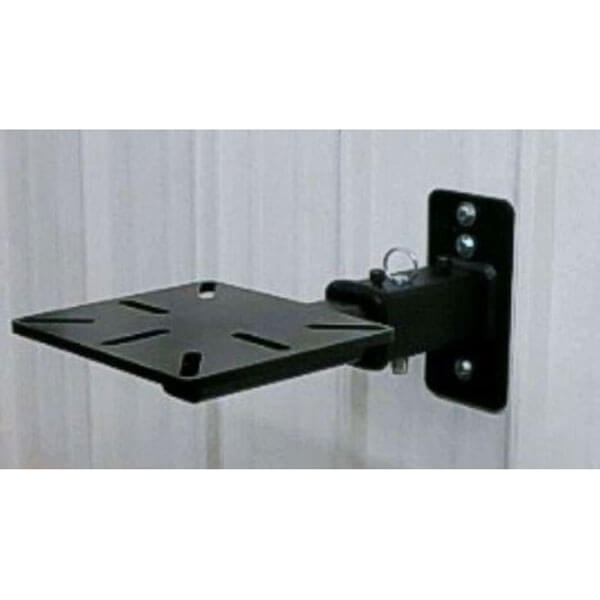

Completely free up work surfaces and eliminate floor space wasted on stands with the wall mount tool receiver (sold separately). Featuring a 4 x 8 x 1/4 inch thick mounting surface with 3 mounting holes, it can be mounted to any vertical surface in the shop. In addition to a 5/8 inch detent pin, the mount also features two sets of jam bolts to produce a rock-solid fit for the receiver tube.

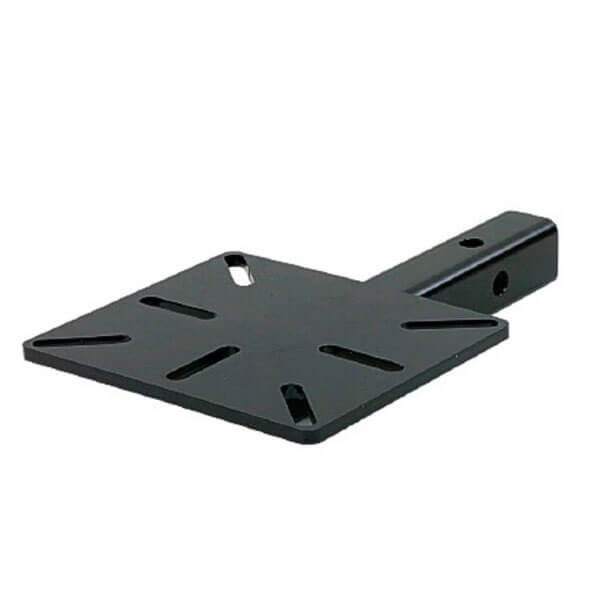

The included tool mount is constructed from 2 x 2 3/16 inch wall square tubing and a 3/8 inch thick steel plate measuring 8.5 x 9.5 inches. The mounting plate features both 90 and 120 degree slots to accommodate a wide variety of tools, or you can drill your own holes as needed.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

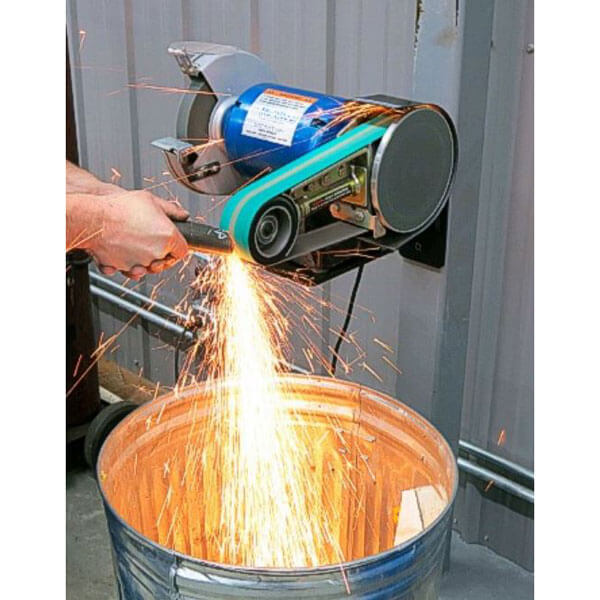

  • Keep work surfaces clear and eliminate dedicated stands
  • 3/8 thick universal tool mounting base
  • Slots fit a variety of tools
  • Attach receiver to any vertical surface

Specifications

  • Size: 8.5 x 9.5 inches
  • Length: 13 Inches
  • Weight (pounds): 18
  • Dimensions (LxWxH): 16.5" x 9.5" x 8"
  • In The Box

    • Receiver
    • Tool Mount
    • 4 jam bolts
    • 5/8 detent pin
    • Customer must supply mounting hardware
