Cessna 1714000K200 Seat Roller Kit 1 FAA/PMA Approved
$139.75/Each
Part# 13-24643
MFR Model# SEAT KIT-1
MFR Model# SEAT KIT-1
FREE Shipping
- JUMP TO
- Overview
- Features
- In The Box
- Reviews
- Q&A
Overview
|

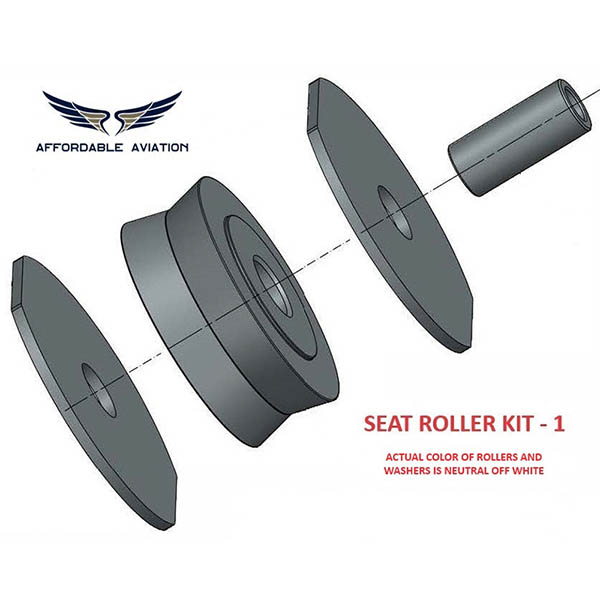

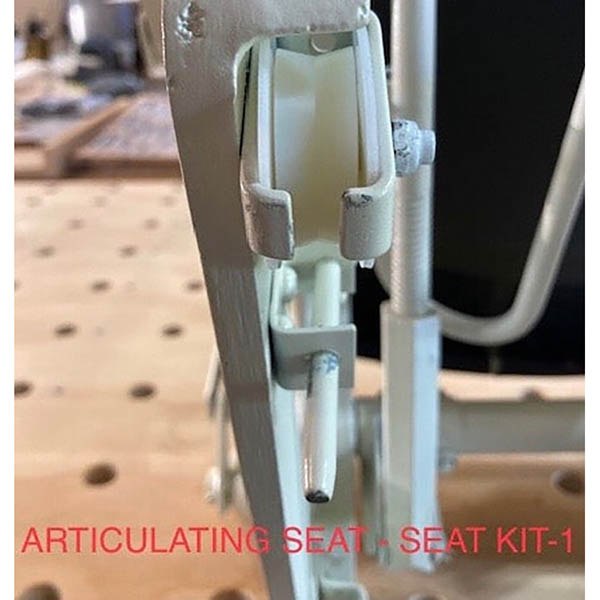

**These FAA-PMA replacement seat parts will assist you in complying with parts replacement requirements of A.D. 2011-10-09. This A.D. requires the periodic inspection and replacement of the seat components of the entire Cessna light aircraft fleet. These parts are direct replacements for the wear-related seat components.** One Seat Kit is used for each seat. It is recommended that both front seats are serviced at the same time. Affordable Aviation offers SEAT-KT-1 for use on all Cessna Fully Articulating Seats, (two crank handles). This LARGE roller has an approximate diameter of 1 3/8”. The kit contains NEW Nylon Rollers, NEW Steel Bushings and NEW Flat Acetyl Guide Washers which replace worn Cessna parts, allowing the front seat(s) to move easily fore and aft on the seat track rails. The kit contains the same components offered by Cessna, p/n 1714000K200 kits. All 177 Cardinals front seats will use the large seat roller and require this kit. The SK-1 Seat Roller Kit is not used on models 150-152. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- The nylon roller(s) are made from the highest quality Nylatron® which offers greater wear resistance, high mechanical strength, lower surface friction, stiffness, hardness, and greater rigidity which all adds up to a superior and durable/long service life roller.
- The wear washers are made from a tough acetyl plastic and have far better wear properties and resistance to aging.
- The steel bushing is made from super tough moly chrome steel with a clear zinc plating finish for corrosion resistance.

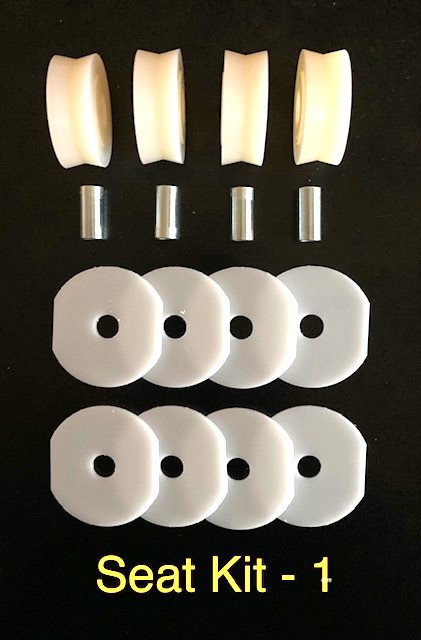

In The Box
- (8) 1714000-22, Washer
- (4) S1704-1, Roller
- (4) 1414104-54, Bushing
