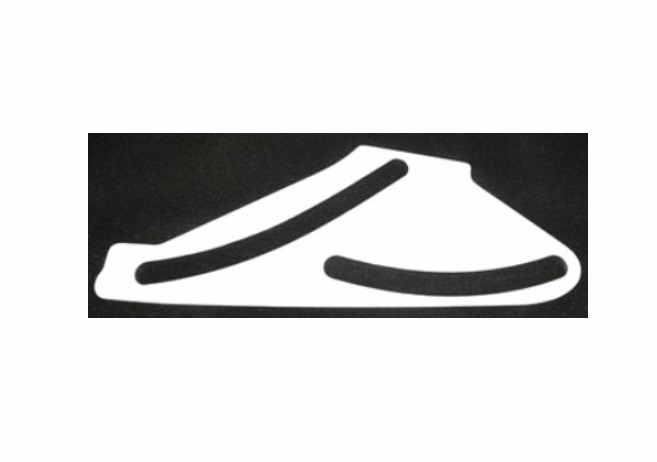

Flap Tracks For Cessna 152 Series

$299.95/Each
Quantity
Add to Wishlist
Part# 05-19110
MFR Model# MC0523231-14

Overview

Cessna models 152, A152, F152, FA152 and 172RG aircraft may have various flap track rib assemblies installed. If flap track rib assembly part number 0523231-23 is currently installed, then McFarlane part number MC0523231-14 must be used to replace the flap track. If flap track rib assembly part number 0525001-1, 0525001-1S or 2425001-1 is currently installed, then McFarlane part number MC0525001-2 must be used to replace the flap track. (Information from eligibility Note 5.)

Flap track rib assembly 0523231-23 includes a 0.16 inch thick flap track with no lightening hole. Flap track rib assemblies 0525001-1, 0525001-1S and 2425001-1 include a 0.25 inch thick flap track with a 2.25 inches lightening hole located between the flap roller slots.

The early thinner model flap tracks manufactured by Cessna were varied over three track assembly P/Ns 0523231-13, 0523231-21, and 0523231-23, two of which had 30 deg of travel and one had 40 deg of travel. Cessna has superseded all three P/Ns to the 0523231-13 assembly model (40 deg) for various 150 thru 180 aircraft applications. McFarlane has followed Cessna's lead on this, as having extra flap travel will not effect those aircraft with only 30 deg of travel. Your flap rollers, regardless of having 30 deg or 40 deg of travel, should never bottom out in the flap slot as the rigging and/or bell cranks should limit the movement prior to contact of the two parts. If you have a 30 deg track the installation instructions on the ICA are still applicable, you will place a pin in either end of your 30 deg track and align it with the forward end of the new McFarlane slots and the aft end pin will be in the middle of the flap track. You will then transfer the rivet holes and complete the installation instructions.

Flap Tracks for Cessna Aircraft
Replace worn-out tracks to prevent dangerous and expensive binding problems! McFarlane's FAA-PMA flap tracks feature many improvements over the original.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Eligibility

MC0523231-14

Features

  • Improved material
  • 20% stronger
  • 6 times fatigue strength
  • Greater resistance to wear, "mushrooming" and stress cracking
  • Precision machined for smooth rolling action
  • No pre-drilled holes for a precise, clean installation
  • Replace just the track, not the entire assembly
  • Cessna only lists the rib assembly for most aircraft
  • Eliminates the need to drill into the fuel tank area
  • Alodined then epoxy primed per MIL-PRF-23377 for corrosion protection
  • Cessna aircraft models 150 thru 210
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Worked as it should

Sutton A Verified Purchase

MCFARLANE MC0523231-14 FLAP TRACK

May 11, 2024

Comparing the purchase with other suppliers, this has been the best move. Thank You AS

Marcus R Verified Purchase

MCFARLANE MC0523231-14 FLAP TRACK

December 17, 2021
