|Description||Tubing Size||Hose ID||Max PSI||Wgt/Ft||Part No.||Price / Ft||Buy / Ft|
|Aeroquip 303 Hose||3/16||1/8||3000||.120|
|Aeroquip 303 Hose||1/4||3/16||3000||.132|
|Aeroquip 303 Hose||5/16||1/4||3000||.156|
|Aeroquip 303 Hose||3/8||5/16||2000||.228|
|Aeroquip 303 Hose||1/2||13/32||2000||.264|
|Aeroquip 303 Hose||5/8||1/2||1750||.372|
|Aeroquip 303 Hose||3/4||5/8||1500||.456|

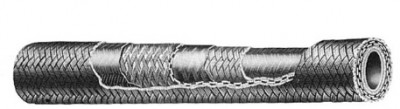

|This standard hose is used in medium pressure A/C hydraulic, fuel, oil and coolant systems. An inner tube of seamless synthetic rubber is reinforced with a synthetic-impregnated single-wire braid over a single cotton braid and an outer cover of synthetic-impregnated oil-resistant cotton braid. Operating temperature -65 to 250F. Conforms to MILH-8794 (supersedes MIL-H-5511A). Used with Aeroquip 491 hose fittings. Sold by the foot.|
Areoquip 303 hose does the job in my cherokee.
This is the ticket for replacing fuel lines in early, six cylinder Cessnas. I tape where Iâll be cutting it with a couple layers of tightly wrapped masking tape, then cut it with a fine toothed, bi-metal hacksaw. I then peel off the tape and trim back the outer cotton wrap and steel braiding about 1/8â and itâs ready to be screwed into the fitting: counter-clockwise (lefty-tighty). use plenty of oil on the inner fitting before you thread that inside the hose: clockwise (righty tighty). Use a mandrel! If youâre too broke to buy a new one, watch eBay for a used one, or borrow one.
Item was just as described and hose build up was a snap with the associated fittings.
Great hose. Much easier to assemble than stratoflex. No fire sleeve required. If your old hoses are stiff replace them.
This stuff lasts forever, but if the cloth braid tears and the underlying metal braid rusts, then the hose could eventually fail. Spruce always sends a piece longer than you ordered and thats good because the device they use to cut the hose makes it impossible to put the ferrule on. You need to make a very clean cut to be able to install the ferrules. I use a Dremel diamond blade cut off wheel.
Great project part for student projects.
Now this hose was the best to work with!!! The inside ID was perfect for the fitting. The fitting went on and off with no problem the best so far. Great hose to work with. I cut with a zip blade on the 5 grinder good stuff.
The ends of the hose were cut off very poorly as though someone squashed them in a device used to cut rope or cable. The first aeroquip fitting I installed did not come out right and had a problem. I removed it and cut an inch off the damaged ends of the hose and installed them properly. Fortunately I had just enough hose to complete the job. You need to tape the cut area and use a chop saw as per Eatons recommendation for cutting hose.
Yes, the factory gives an 8 year shelf life on 303 hose.
No, Aeroquip 303 hose requires 491 Aeroquip fittings.
Eaton recommends you replace the 303 hose after 5 years of service.
Yes, it is priced and sold by the foot.
The tech data sheet shows the Aeroquip 303 hose has a carbon steel wire braid reinforcement. It does not give any information regarding how conductive it may be.
It is up to you if you would like to use a firesleeve on this hose or not. It will all depend on your application if you were to need a firesleeve. If you were to get a fire sleeve for hose 303-4 for example, you will need to get P/N# 05-01843.
It is recommended to use Stratoflex fittings with Stratoflex hose, and Aeroquip fittings with Aeroquip hose. The Aeroquip 303 and Stratoflex 111 are equivalent to each other, and some have used parts interchangeably, but we have no documentation as to how well they will work.
This hose is priced and sold by the foot. When you enter quantity, you are entering the number of feet you would like to order.
