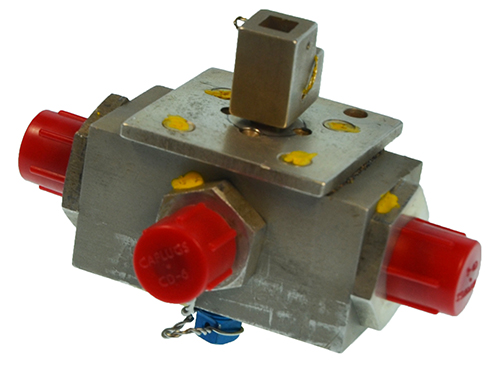

McFarlane Valve Fuel Repaired W/Core - 0513120-5S

0 Reviews 0 Answered Questions
$1429.00/Each
+$750 Core Exchange Charge
Quantity
Add to Wishlist
Part# 05-19273
MFR Model# 0513120-5S

Overview

For all Cessna 170B aircraft:


The detent housing type must be verified by McFarlane's technician before purchasing an exchange unit from our stock. Please contact us.
Important notes for 0513120 series valves:


  • McFarlane will request your signature stating compliance with AD# 99-27-02. If this is not provided we must install a new cam and the cost of the cam will be deducted from the core value.
  • Detent housing and tube fittings must be sent with the body of the valve (the housing).


    • New Fuel Selector Valve AssembliesFAA-PMA approved for Cessna 150 thru 195 aircraft
    • Better corrosion resistance
    • Improved O-ring retention
    • More balanced fuel flow
    Why not just repair my valve?
    Many of the original valves have too much damage to be repaired cost-effectively. The original Cessna fuel valve that started in model 170 was a simple but ingenious cam ball design that has proven very reliable over the years. McFarlane has repaired a lot of these original Cessna valves, and we know them well. However, we are now rejecting a big percentage of the valve cores sent to us. A lot of them have corrosion damage in the main body that is too severe to fix, or the O-ring retention area is damaged and too rough to seal. Many of the fittings are corroded through. The cam bearing is brass and easily corrodes the aluminum alloy cam.


    Overhauled Fuel Selector & Fuel Shut-Off ValvesRepaired assemblies available for Cessna 150 thru 320 aircraft
    • Overhauled by experienced technicians
    • Cleaned, inspected, and assembled with all fluorocarbon O-rings, seals, gaskets, hardware, and parts as required
    • Pressure tested for leaks and evaluated for proper fuel flow


    Seal kits, repair kits, and replacement components also available!Seal kits and repair kits are available for varying Cessna 150 thru 320 aircraft. Replacement components are available for all new McFarlane fuel valve assemblies.
    • Seal kits include all necessary O-rings and/or gaskets
    • Repair kits include all required hardware, seals, springs, O-rings, roll pins, washers, screws, balls, and plug
    • Replacement components available include covers, rotors, bodies, pins, and seals
    To order components, go to Seal Kits, Repair Kits, or Replacement/Service Parts
