The ARTEX ELT 345 transmits on 406 MHz and 121.5 MHz frequencies and can provide position accuracy with an optional GPS input thanks to the built-in GPS navigational interface. GPS data is embedded from the first emergency transmission and provides Search and Rescue personnel with the aircraft location, within 100 meters, in less than a minute.
This unit can be activated manually with (remote switch or ELT switch) or automatically (the G-switch detects a 2.3G or greater impact). Once activated, the ELT 345 transmits a 406 MHz signal with the beacon's unique registration information and embedded GPS coordinates to the closest search and rescue agency via the Cospas-Sarsat satellite system. The beacon also transmits a 121.5 MHz homing signal to assist search and rescue to pinpoint the aircraft's GPS location.

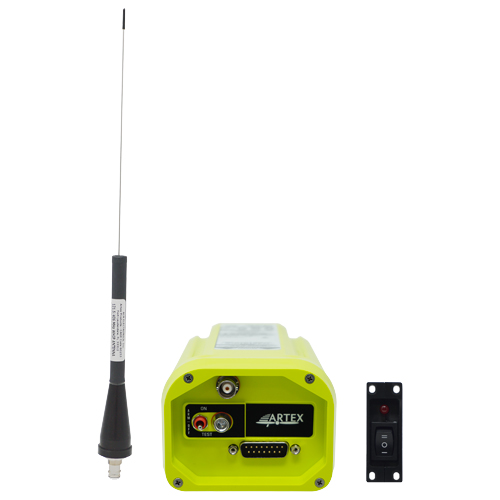

The ELT 345 provides a quick-and-easy retrofit opportunity with flexible installation options (Slimline two-wire remote switch that fits ACK and Ameriking - 2.08 x 0.75 Inches). The ELT utilizes the same RF output using only one coax cable to transmit both 406 MHz and 121.5 MHz signals through the compact 15-inch whip antenna. The ELT's built-in navigational interface does not require aircraft power to operate—which results in lower installation costs—and the stainless steel mounting bracket supplied with the unit has a multiple hole mounting pattern to accommodate legacy footprints.
FAA TSO C126b approved.
|406.040 MHz (+/- 1kHz) - Emission Designator 16K0G1D / 121.5 MHz (+/- 6.075 kHz) - Emission Designator 3K20A3X|
|406 MHz: 5 W for 24 hours @ -20°C to +55°C, 121.5 MHz: 50 mW for 50 hours @ -20°C to +55°C|
|Built-in GPS Navigational Interface (NMEA 0183 or RS 232)|
|Automatic via G-Switch by 4.5 ft/sec (2.3 G) or Manual Activation|
|6 year Lithium (LiMnO2), Replacement Battery Part No. 8322|
Temperature Certified to:
|Operating: -20°C to +55°C, Storage: -55°C to +85°C|
Self Test Checks:
|G-Switch Enabled, 406 MHz and 121.5 MHz Power, NAV system, Low Battery|
Weight (with tray):
|2.0 lbs (907.19 g)|
|ELT Transmitter with mounting hardware installed: 6.40 (L) x 2.96 (H) x 3.78” (W) inches (16.26 x 7.52 x 9.60 cm)|
|Cospas-Sarsat, FAA TSO, Industry Canada|
|Black Whip Antenna|
Mounting Tray and Strap:
|P/N: 8323 (Universal mounting hole pattern fits 90% of existing ELT hole configurations)|
We have added the Installation Manual to the web page. This unit is FAA Approved and to be legally installed all components in the kit must be used.
Yes, this ELT is sold as a kit. The ELT 345 will require all new parts to be installed.
This must be installed as the installation manual requires in order to be installed properly.
This will require an external GPS source, it does not have an internal antenna.
Yes, this is FAA TSO approved.
As long as the baud rate matches it will work. This means the baud rate on the ELT will need to be programmed.
