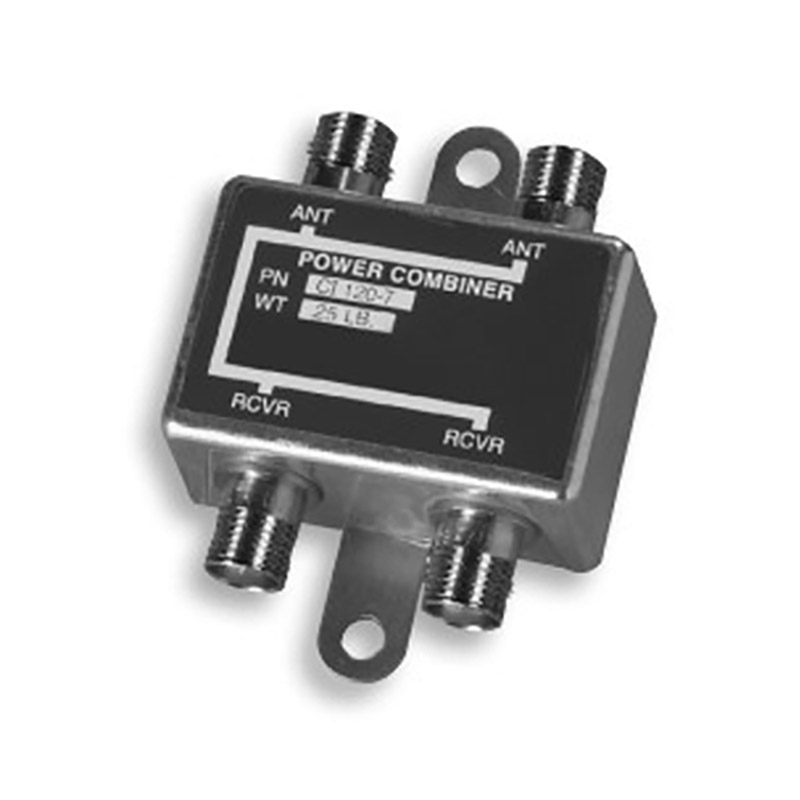

Combant Combiner CI 120-7 Vor/ Loc / Gs

$430.00/Each
Quantity
Add to Wishlist
Part# 11-19398
MFR Model# CI-120-7

Overview

Comant’s two through hole combiner with TNC ports. Combines two VOR / LOC / GS signals into a dual coaxial cable run for two VHF Nav input. Equivalent to the CI 120-5 except features TNC connectors. Suitable for internal aircraft mounting.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Electrical
  • Frequency: 108-118 MHz 329-335 MHz
  • VSWR: 1.5:1 Max 1.5:1 Max
  • Power Split: 6 dB 6 dB
  • Isolation (btwn Ports): 20 dB Min 20 dB Min
  • Insertion Loss: 1.5 dB Max 1.5 dB Max
  • Amplitude Balance: ±0.5 dB ±0.5 dB
  • Impedance: 50 Ohms 50 Ohms
  • Phase (btwn Ports): ±180° ±5 ±180° ±5

  • Mechanical
  • Weight: 0.20 lb
  • Height: 0.090 in
  • Construction: Die Cast Aluminium
  • Finish: Aluminium
  • Connector: BNC (female)
  • Environmental
  • Internal Mounting / DO 160

  • Federal Specifications
  • FAA TSO Part of an approved TSO System

Applications

  • Internal Aircraft Mounting
