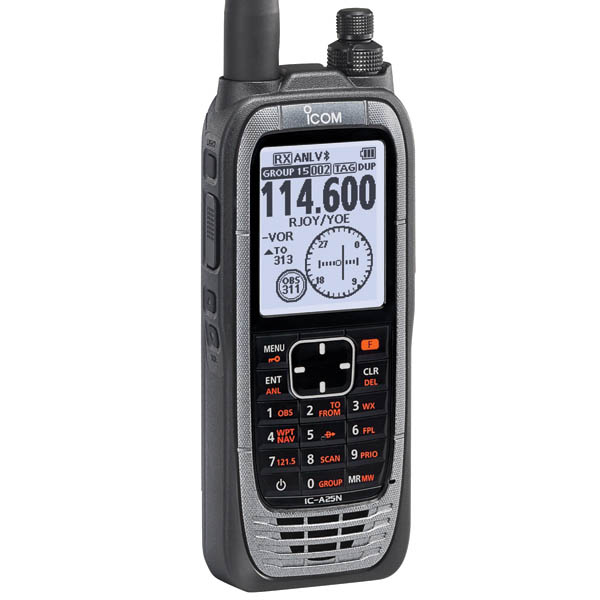

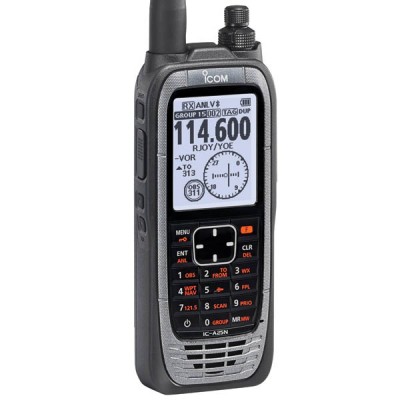

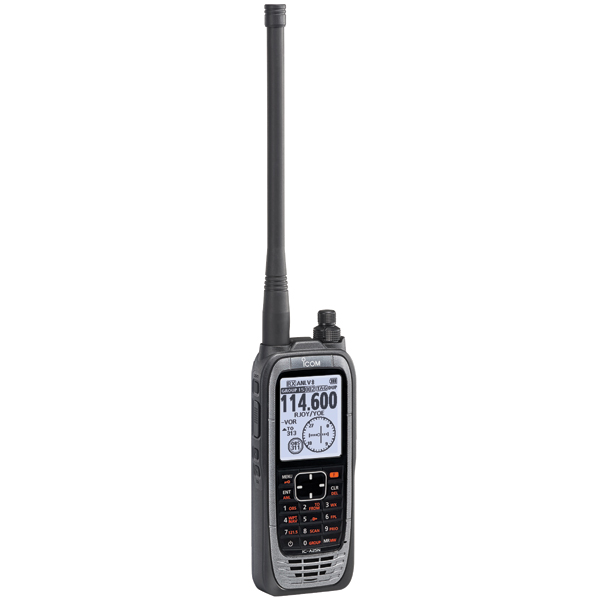

Icom A25N VHF Air Band Nav / COM / GPS Radio With Bluetooth

Select Voltage:
110V220V
Quantity
Add to Wishlist

Overview

The A25N is a powerful air band handheld with 6 watts of power and an IP57 waterproof rating; weather cannot stop these radios. The handheld includes a large 2350mAh Li-ion battery, providing a long operating time. The easy-to-use interface and large 2.3-inch LCD display combine to provide stress-free programming and in-flight operation. This handheld features built-in Bluetooth®, GPS and VOR navigation.
  • Output power: 6W typ. (PEP), 1.8W (CW)
  • Frequencies:  TX (COM); 118.00-136.975MHz
                            RX (COM/NAV) ; 108.00-136.975MHz
                            RX (Weather) ; 161.650-163.275MHz
  • Channel spacing: 8.33/25KhZ
  • Channels: 200 (20CH x 10 banks)
  • Battery life: 2350mAh Li-ion battery, up to 10.5 hours
    Typical operation with Tx:Rx:Stand-by duty ratio = 5:5:90, (Bluetooth OFF, GPS ON)
  • Version: Communications plus navigation
Large easy to use LCD
The A25’s large 2.3-inch LCD provides user-friendly, graphic screens. The day mode allows pilots to view the screen in direct sunlight and the night mode makes it easy to read in the dark.

Navigation functions
Built-in GPS and Bluetooth® have redefined navigation in the A25N. Design flight plans with an Android™ or iOS™ device and import them into the A25 with the Bluetooth® feature. While using GPS, the waypoint NAV will guide pilots to their destination. Up to 10 flight plans and 300 waypoints can be stored in the A25. Other navigational features, like VOR indicators, can help keep a pilot’s heading precise and alert them if they divert from course. All these functions and more increase safety up in the air.

VOR navigation functions
  • CDI (Course Deviation Indicator) looks like a real VOR instrument and displays any deviation from your course.
  • OBS (Omni Bearing Selector) enables you to change course from your original flight plan.
  • TO-FROM indicator shows the position relationship between your aircraft and the course selected by the OBS.
  • ABSS (Automatic Bearing Set System) enables you to set the current course as a new course.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Powerful Air Band Portables w/ Built-in GPS & Bluetooth®*
  • 6 Watts (PEP) – Expands COM Coverage
  • Easy-to-Use Intuitive Interface
  • Large, Easy-to-Read LCD Screen, w/ Night Mode
  • Flip-Flop Channel Recall
  • Battery Status Screen
  • 121.5MHz emergency key
  • Weather channels
  • Priority watch

Specifications

General
NAV and COM A25N
NAV and COM channels
Frequency Coverage
   Tx
   Rx
   RX (Weather)
A25N
118.000-136.975 MHz
118.000-136.975 MHz
161.650-163.275 MHz
Channel spacing 25/8.33 kHz
Type of emission 6K00A3E, 5K60A3E, 16K0G3E (Weather)
Power supply requirement 7.2 V DC (BP-288), 11.0 V DC (External DC Jack)
Current drain (approximately)
   Tx High
   Rx Max. audio/Stand-by

Less than 1.8 A
Less than 500 mA/90 mA typ.
Antenna impedance 50 Ω
Operating Temperature Range –10°C to +60°C; 14°F to 140°F
Dimensions (W×H×D)
(projections not included)
58.9 × 148.4 × 31.8 mm; 2.3 × 5.8 × 1.3 in
Weight (approximately) 340 g; 12.0 oz (with BP-288)
Transmitter
Output power (at 7.2 V DC) 6.0/1.8 W typical (PEP/carrier)
Audio harmonic distortion Less than 10% (at 60% modulation)
Hum and noise ratio More than 35 dB
Spurious emissions More than 46 dB
(Exclude fc±62.5 kHz for AM mode)
(Exclude fc±20.825 kHz for AM-N mode)
Frequency stability ±0.4 kHz
Receiver
Intermediate frequencies
   1st
   2nd

46.35 MHz
450 kHz
Sensitivity (typ)
   NAV/COM (6 dB S/N)
   WX (12 dB SINAD)

Less than 0 dBμ
Less than –8 dBμ
Squelch sensitivity (at threshold) Less than 0 dBμ (AM), Less than –5 dBμ (FM)
Audio output power More than 350 mW typ. (8 Ω load/60% Mod. at 10% distortion)
Hum and noise More than 35 dB (at 30% modulation)
Spurious response More than 60 dB (AM), More than 30 dB (FM)
Audio output power More than 350 mW typ. (8 Ω load/60% Mod. at 10% distortion)
Ext. speaker connector 3-conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω

In The Box

  • Antenna
  • Belt clip
  • Handstrap
  • Battery Pack
  • Headset Adapter
  • Power Adapter
  • Battery Charger
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

A little complicated to operate but not unmanageable. A bit of learning curve like all new electronics. At least it has some dials and buttons. A few too many extra features for my liking but it works great

Morris W Verified Purchase

ICOM A25N VHF AIRBAND TRANSCEIVER 110V

December 29, 2023

For a handheld, very good.

Robert S Verified Purchase

ICOM A25N VHF AIRBAND TRANSCEIVER 110V

November 29, 2022

Rnsa Verified Purchase

ICOM A25N VHF AIRBAND TRANSCEIVER 220V

October 21, 2022

AA battery pack was missing .i specifically asked if it had one. So frustrating when you need a radio and the battery is low, at least with AA battery pack you can have a solid charge in minutes.

Scott R Verified Purchase

ICOM A25N VHF AIRBAND TRANSCEIVER 110V

September 24, 2022

Works as described and order and delivery were easy. Thank you!

Chris L Verified Purchase

ICOM A25N VHF AIRBAND TRANSCEIVER 110V

April 22, 2022

Eduardo R Verified Purchase

ICOM A25N VHF AIRBAND TRANSCEIVER 220V

February 5, 2022

Dave C Verified Purchase

ICOM A25N VHF AIRBAND TRANSCEIVER 110V

June 8, 2021

good service

George P
February 10, 2021

So far this unit has preformed excellent, its well made and easy to use.

Colin H
April 27, 2020

Great product, delivered promptly, well packaged, easy to use.

Roger H
August 25, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How much does the Icom A25N radio cost?

The price for the product will display when you select which voltage you need from the drop down menu. It is offered in both 110v and 220v versions for use in different countries. North America is 110v, many other countries require 220v for the charger.

Q: Does the Icom A25 series radio have dual watch functionality?

Yes it does.

Q: Does the Icom A25N VHF Air Band radio have glideslope and localizer capabilities?

No, it does not have ILS / LOC features. It is only VOR NAV capable.

Q: Can the Icom A25N Bluetooth be used to connect the A25Ns GPS to a tablet or Nav device?

No, the GPS signal is receive only on the Icom A25N radio. It will not display a moving map or send the signal to another device. It is used for position data so that the radio can display and tune to nearby frequencies and NAV points. The Bluetooth feature is audio only.

Q: Can this Icom A25N radio be permanently plugged into aircraft power and transmit and receive, or does the battery pack have to be removed for this to work? Ive had issues with older versions that will not work if under permanent aircraft power.

This unit is not designed to be permanently powered by aircraft power. Using the optional CP-20 cigarette lighter adapter, the unit can be powered by a 14 or 28-volt DC system by simply plugging it into the jack.

Q: Does the headset adapter included with the Icom A25N radio have a Push To Talk function?

No, the headset adapter has an input port for the addition of a push to talk switch. You will need to order part # 11-09131 separately to add push to talk to this radio.

Q: Will the headset adapter and push to talk button that I have for my current icom A6 work with this Icom A25N radio?

No. The headset adapter will not work, but the PTT will work with the headset adapter that comes with the A25.

Q: 1. I read you can Bluetooth two headsets to it at once is this true? 2. If you can connect two headsets to it can the unit be used as a intercom between the two headsets or would you need a separate intercom unit?

The manufacturer user manual only references one headset being connected via Bluetooth. With that said, you would need an intercom to connect two separate headsets.

Q: Can the Icom A25N radio be used while plugged into the 110v charger?

No, per Icom, using it while charging can damage the unit.

Q: Does Icom make a mic for the A25N?

Yes, Icom makes a mic for the A25N, see part # 11-15470.
