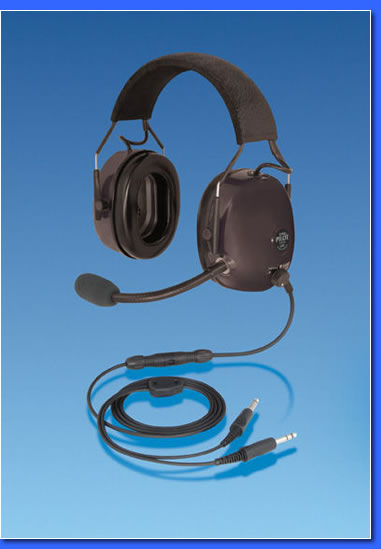

Lynx Pilot System Headset With Lead

Add to Wishlist
Part# 11-05394
MFR Model# P021


The Pilot System headset is designed specifically for use in light aircraft and helicopters.

The headset is fitted with interchangeable leads which can be swapped easily for use in different aircraft. Leads are available for connection to a wide range of general aviation intercom equipment.

Each headset includes a specially developed electret noise cancelling microphone, an electronic speech processor and high quality speakers.

The microphone is sensitive to speech but rejects extraneous background noise whilst the speech processor modifies the voice signal to produce a clear and natural sound.

The microphone is mounted in a rubber anti-shock holder and is protected by a foam wind shield that can be removed easily for cleaning or replacement.

The headset speakers are housed in acoustically balanced enclosures which seal the headset against moisture and also allow the ear-cups to be cleaned hygienically. The speaker volume is adjustable and can be set using the built-in volume control.

The headset is noise attenuating and provides hearing protection in noise levels up to 11OdB(A).

All Lynx headsets are fitted with Silicone Gel ear seals and are fully adjustable.

Headset Colors:
Black, White, Grey, Red, Pink, Blue, Yellow or Green

Helmet Sizes:
To obtain the correct size of helmet, use a tape measure to measure the circumference of your head just above the ears. Small: 55-57cm, Medium: 57-59cm, Large: 59-61cm, Extra Large: 61-63cm. Small: 22", Medium: 23", Large: 23.5", Extra Large: 24.5".
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -




Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: On the Lynx Pilot System Headset with lead. Does it come with the dual plugs for general aviation. Also do you still need to charge any batteries in it?

The Lynx Pilot system with lead comes with different available leads but the dual general aviation leads are the most common. All you need to do is specify that plug type on the order. This is a passive headset (the panel will power the headset and mic) and does not have batteries like the Mirco series does.

Q: I want to use this headset with a Sigtronics Sport 200S intercon which is a stereo system. Will this headset work with this intercom.

Yes this will work if you order the dual GA plugs for the Lynx but we do not show the Lynx is a stereo headset so will not hear music in both hears (normal communications will be heard in both hears).

Q: Can I use these headset on the mgl v6 radio?

Yes, as long as the input jack is wire correctly.

Q: Will this Lynx Pilot System headset work with a portable intercom powered by a 9 volt battery?

Yes, the DUAL GA plugs allow for this to be used in standard aircraft.

Q: How long is the dual plug lead?

The length is approx. 4.5 feet

Q: Will the Lynx Pilot System headset work with an Icom A-25C handheld radio? Can we purchase a ptt switch for it also?

As long as you have a GA plug adapter to connect to the A-25C, it will work. PTT switch would have to be connected in line to the adapter.
