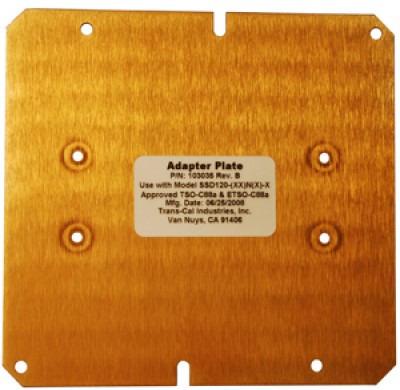

Trans-Cal Industries Adapter Plate part number 103035 allows the avionics technician to quickly replace existing Sandia altitude encoder installations in favor of Trans-Calís SSD120-(XX)N(X)-(X). This adapter simplifies the mechanical installation task by providing a mounting plate designed for the SSD120-(XX)N(X)-(X) while utilizing the existing Sandia mounting tray. The adapter plate is manufactured from .062Ē thick aluminum with a chem-film
treatment to inhibit corrosion. The adapter is shipped with stainless steel fastening hardware to secure the digitizer to the plate.
The SSD120-(XX)N(X)-(X) and this adapter plate are approved under TSO-C88a and ETSO-C88a. It is the responsibility of the installer of this equipment, within a specified type or class of aircraft, to determine that the aircraft operating conditions are within TSO or ETSO standards.
