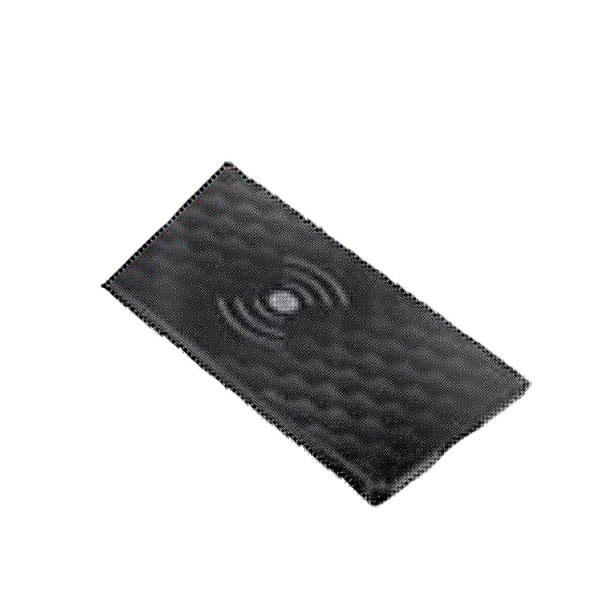

Mid-Continent TW15 Wireless Charger Single Coil

Select Model:
SlimCompact
Quantity
Add to Wishlist

Overview

Manufactured by Mid-Continent Instruments and Avionics for True Blue Power.

  • Standby, Charging, Charge Complete and Fault status indication
  • Short circuit, power surges, overload, over temperature, reverse polarity and foreign object detection protection
  • Ideal for in-seat, cabin and cockpit applications
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty


      PN Number of Coils Weight Dimensions
      11-19191 Single, Slim 3.4 ounces (96 grams) 4.50” L x 2.28” W x 0.21” H
      11-19192 Single, Compact 3.0 ounces (85 grams) 2.45” L x 2.28” W x 0.35” H
  •
    California Prop 65 Warning Symbol

    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

    Specifications

    Output Power
    15 watts (maximum)

    Input Power
    26 watts (maximum)

    Input Voltage
  • 12 – 32 VDC
  • (1.9A at 14 VDC)
  • (0.9A at 28 VDC)

    Charging Depth
    0.080” – 0.375“ (2 – 9 mm)

    Mating Connector Kit
    P/N 9019739-1 (included)

    Mounting
    (4) #2-56 threaded holes

    Installation
    In-seat, cabin and cockpit

    Case
    Anodized aluminum, black

    Certification
  • FAA TSO C71
  • RTCA DO-160G
