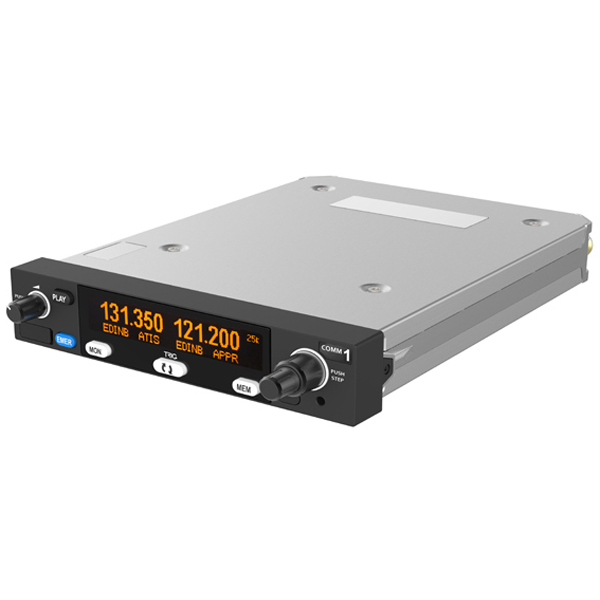

Trig TY96A Slimline 25 Khz Panel Mount Radio

$2412.00/Each
Quantity
Add to Wishlist
Part# 11-15376
MFR Model# 01788-00-01

Overview

The TY96A aviation radio has defined a standard in 25 kHz radio design. Combining great quality and performance this radio is housed within a superbly engineered unit, slimline and light. At only 1.3”high the radio saves valuable stack space, but retains innovative and practical features. These radios are perfectly suited to the needs of experienced and novice pilots alike.

Features that matter

The TY96A is a 10 Watt model, suited for most general aviation use. The TY97A is a more powerful 16 Watt model, where a higher transmission output is required.

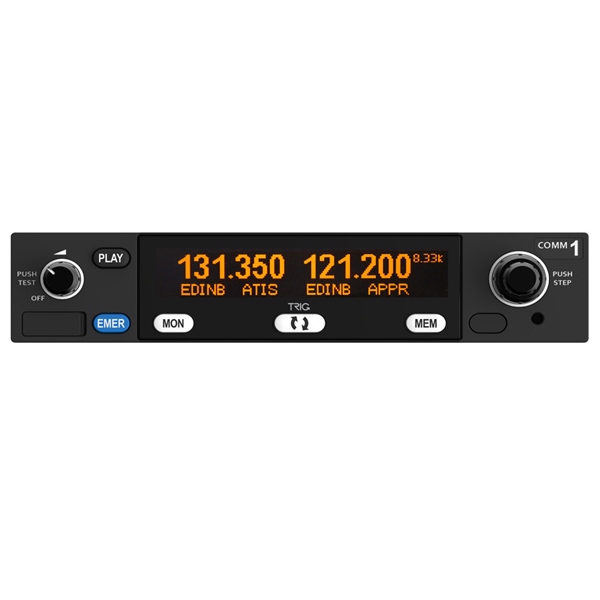

The display is clear and bright, showing both primary and secondary frequencies along with ICAO or custom set airfield identifiers. A ‘Push Step’ knob allows the fastest change from 50 kHz to 25 kHz steps - so you can tune the radio quickly without compromising your look-out. The Dual Watch feature allows two frequencies to be monitored at the same time - it’s like having two radios in one.

This radio has a ‘Say Again’ feature. A single button press replays the last radio transmission. It’s ideal for student pilots, but every pilot can get distracted, so it avoids the embarrassment of asking air traffic to repeat a message. A one touch Emergency Button automatically sets 121.5 MHz, along with mic and volume levels. This ensures a successful transmission in what can be a stressful situation.

Integration benefits

This radio has a built in two place intercom with auxiliary inputs for stereo music and audio warnings. This radio can also integrate with a GPS (SL40 protocol) to automatically display frequencies as they are required along the flight route. Finally, an airfield database can be loaded via the handy USB port. This database can contain over 200 of your preferred frequencies and identifiers.

Ease of installation

The radio’s low profile design requires no external cooling fans. The radios compact size and features make it a great choice for both forward and retro-fit installations. This radio is designed to easily replace legacy radios, these include popular; KY 196A, KY 197A and SL 40 models.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Slim-line – only 33mm high
  • Bright, clear display / simple user interface
  • Unique ‘Push Step’ for faster tuning
  • 8.33 (TY96) and 25 kHz (TY96 and TY96A)- ETSO and TSO approved
  • Stereo music / two place intercom
  • Dual Watch – monitor two frequencies at the same time
  • ‘Say Again’ feature – allows playback of last transmission
  • Emergency button
  • Configurable airfield database – holds over 200 frequencies
  • USB port on facia – upload frequency database (CSV file)
  • Highly efficient – no cooling fans or external cooling required
  • Ideal retro-fit for legacy radios
  • Unbeatable quality – designed and manufactured in the U.K.
  • Two year worldwide warranty

Specifications

  • Type: Certified – 25 kHz
  • Certification: ETSO 2C128, 2C169a / TSO-C128a TSO-C169a
  • Compliance: ED-23C, ED-67, DO-186B, DO-178B Level B, DO-160G, DO-254 Level C
  • Supply Voltage (DC): 11 – 33 V
  • Typical Current Consumption in receive mode: at 14V – 175 mA
  • Nominal Transmitter Power: 10 Watt
  • Operating Temperature: -20°C to + 55°C
  • Cooling Requirement: No fan required
  • Weight: 2.09 lbs
  • Total Dimensions: H 1.3” x W 6.26” x L 10.63”
  • Installed depth in tray: 9.05” long

Reviews

Excellent radio, intuitive, easy to use, good intercom functionality. No complaints!

Baxter R Verified Purchase

Trig TY96A Panel Mount VHF Radio 25 Khz

May 21, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the TrigTY96A a direct slide in replacement for a Garmin SL40 without wiring changes?

No, the Trig TY96A is not a direct replacement for the SL40.

Q: Is the mounting tray included with the Trig TY96A radio?

Yes, the tray is included.

Q: Is this Trig TY96A unit a direct replacement for the Bendix King KY196?

Yes this is a replacement for the KY196. However, pay special attention to the install manual for details on the replacement installation.

Q: Is this Trig TY96A a slide in replacement for a KY96a?

No. This not a slide in replacement for the KY96a. New installation will be required.

Q: Does this radio fit in a King 97A tray?

Per Trig, P/N 11-15376 is not a direct replacement fit for the King 97A tray.

Q: Are any of the Trig TY models direct slide in replacements for the KY197 (not the KY197A)?

Per Trig - there is no direct replacement for the KY197.

Q: Is wiring harness and connectors included in the box?

The wiring harness is not included.

In the box:
Unit
Tray/rack
Install kit
Documentation/manuals
