Icom IC A220T Transceiver - Panel Mount - TSO'd

Add to Wishlist
Part# 11-14551
MFR Model# A220T

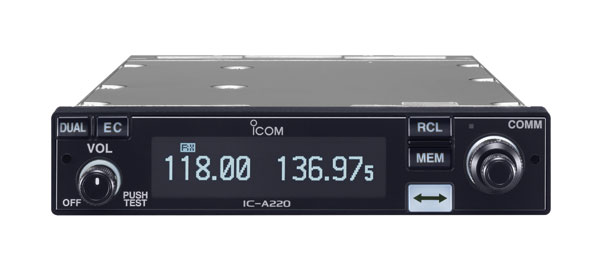

Icom’s A220 panel mount transceiver is a popular fit with experimental and light sport pilots. The TSO approved version will work for all certified part 23 aircraft. This ground to air transceiver has the capability to work on both 8.33 kHz and 25 kHz channel spacing frequencies. It features the brightest OLED (Organic Light Emitting Diode) display on the market offering many advantages in brightness, vividness, high contrast, wide viewing angle and response time compared to a conventional display. The A220 also features a built in 2 station intercom, 12 or 24 volt compatible, automatic squelch and GPS memory function.

FAA TSO certification
The A220 TSO version meets RTCA-160G requirements for use in strict environments. This A220 version can be used for a primary VHF radio in general aviation (part 23) class aircraft. The A220 TSO version is also accepted for ETSO approval under the TSO/ETSO reciprocal acceptance policy.
  • For information on what qualifies as a Part 23 aircraft go to the FAA site.
  • Environmental Qualification Form
  • The A220 TSO version can only be serviced by Icom America Inc. All repairs or adjustment must be performed by Icom America as per the TSO approval requirements.

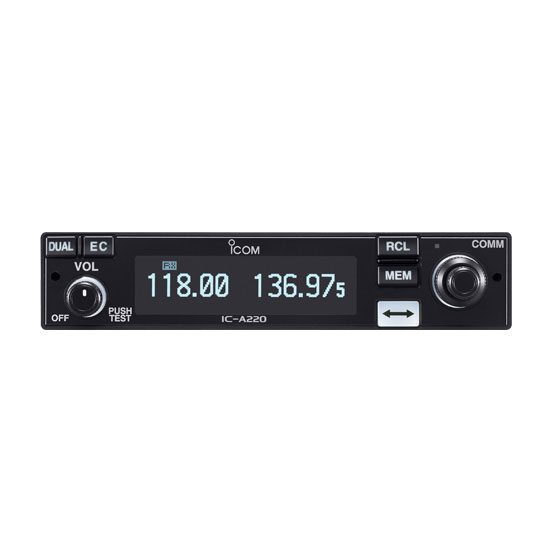

High visibility & readability
The OLED emits light from organic materials, so a display backlight is not required. It provides an extremely higher contrast and a very wide viewing angle of almost 180 degrees. In addition, the OLED display is set close to the front panel. Well laid out characters help identify important information like operating frequencies. White characters on a black background show clear easy to read operating information. With white key backlighting, the white OLED display matches modern plane’s instrument panel. In addition, the auto dimmer function adjusts the display for optimum brightness at day or night.

The A220’s display has a wide active area, so operating frequencies’ characters can be maximized in the display, while operating status can be shown on both top and bottom. The A220’s OLED can display 4-level gray scale from darker gray to bright white and increases readability. This gradation is used, for example, in showing selected items in the settings menu.

Easy channel selection
It’s fast and easy to select any of memory channels in the A220. The “flip-flop” arrow button switches between main and stand-by channels. The dualwatch function allows you to monitor two channels simultaneously. In addition, the auto stack memory stores the last 20 channels used and allows you to recall those channels easily. All switch buttons and knobs are illuminated with pure-white backlighting that is the same color as the OLED display.


  • Automatic squelch function detects the signal level and automatically adjusts the squelch level
  • Built-in voice activated intercom function allows pilot and co-pilot to talk via the headset
  • Connect the A220 to an external GPS
  • Built-in DC-DC converter accepts a 12/24V DC power source
  • Automatic weather channel scanning and receive
  • Dualwatch and priority watch functions
  • One touch access to 121.5 MHz emergency frequency
  • Side tone function for monitoring your voice with headset
  • ANL (Automatic noise limiter) function reduces pulse type noise
  • Remote control capability
  • Dial lock and panel lock
  • Time-out-timer
  • Slim 34mm (1.34 inch) height can be installed in a limited panel space

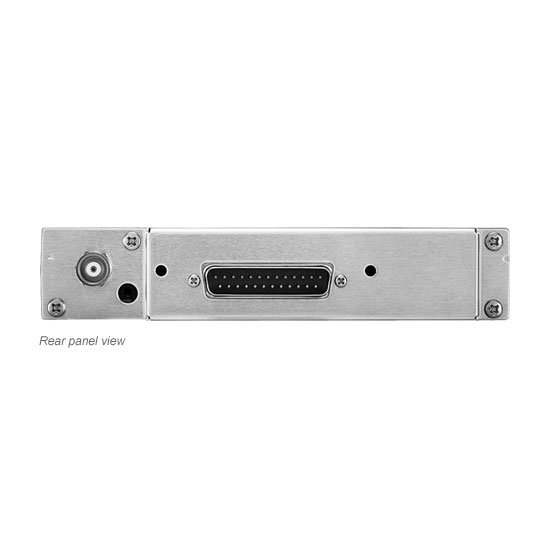

  • D-Sub 25-pin industry standard connector for easy installation
  • Two types of menu mode; settings menu and configuration menu


  • Output power: 8W
  • Frequencies: 118.000-136.992MHz plus 161.650-163.275 weather channel
  • Channel spacing: 8.33/25kHz
  • Channels: 20 regular, 50 group, 10 GPS, 10 weather & 20 auto stack memory
  • LCD display: OLED
  • Mount option: Mobile mount or mount in power supply
  • Versions: Radio without TSO approval / Radio with TSO approval

In The Box

  • A220T Transceiver - 1
  • Mounting bracket - 1
  • D-Sub 25 pin connector - 1
  • Connector pins (M39029/63-368) - 25
  • Screws Bind UNC (No. 4 × 3/8) - 2
  • K-Lock Nut (No. 4) - 2
  • BNC-LP - 1
  • Washer (Icom washer V) - 1
  • C-shaped ring - 1
  • Antenna cable clip - 1
  • Self crimping nut (No. 6) - 1
  • Screw (No. 6 × 1/2) - 1
  • Nut (No. 6) -1
  • Crimp nuts (No. 6)- 6
  • Speed nut UNC (No. 6) - 4
  • Screws (No. 6 × 1/2) - 6
  • COMM1 sticker
  • COMM2 sticker
  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items


You guys the best.

John R
February 8, 2021

Love the memory function. I fly to many of the same airports and this is a great way to have the frequency ready with out having to look up. Face is very bright and easy to work with. Well worth the price.

Bill S
December 8, 2020

Mooey Bueno, to quote George Costanza from Seinfeld. Works perfectly. Had to fiddle with the settings in the config menu, is all.

Andrew B
June 5, 2020

No issues at all. Easy to use and understand. I have this set up as a COM2 with a PS Engineering PAR200A. The PAR200A is the intercom. As a COM the Icom A220 works well. Very happy with the unit.

Edward S
December 28, 2018

Nice radio but I had a press to talk issue when used with the KA134 audio panel. This panel isolates the transmit PTT using a diode from the speaker muting and sidetone circuits. I spent a bit of time trying to determine the issue and ways to make the new IC-A220T work. Correction will include installing Relays to the PTT circuit. The unit has a PTT logic that needs to pull completely to Ground or it will not key. Using a voltage divider circuit will not make it work. Installing relays will be the fix.

Dean D
October 3, 2017

I bought this radio to replace an ICOM A200. The A200 is less than 5 years old. The A200 has been sent to ICOM for repairs 2 times and now it will not transmit. Its unreadable. I selected the ICOM IC 220T with the MBA-3 adapter because it is advertised as plugin compatible and one bad radio should not ruin a product line. The radio slid right in to the existing rack and fit just like it should. I worked through all the functions and contacted ATC. The radio receives and transmits loud and clear - SOMETIMES. The pilot PTT is flakey, it works sometimes but usually not. The copilot PTT works every time. I reinstalled the old radio and the PTT works every time. Its not the PTT switch or wiring. I log on to the ICOM web site and discover this is a known problem when using an intercom. My PA22 has a 4 place Flightcom 403. The stated fix is to install a (2) relays and diodes in the PTT circuit(s) . This is not plug and play. I still need change the wiring and is why I am giving it a 2 rating.

August 7, 2017

Installed this radio into my Mooney Cadet and found the unit to be extremely difficult to setup for proper use. Took several attempts to get the correct balance between MC Gain and Squelch to just be able to hear anything with engine above 1500 RPM. Similar issue with side tone. After getting things working I went out with student. During takeoff power glitch briefily causing internal functions to switch such that we got not audio. After adjusting HP GAIN to recover audio the intercom went out. EXTREMELY UNRELIABLE OPERATION for aircraft radio

Frank B
January 11, 2018


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the MB-113 (Part no 11-08413) compatible with the IC-A220T (TSO)?

No, this part is not compatible with IC-A220T.

Q: Will the IC-A220T fit in a King KY-97A tray?

No, this unit will not fit into a KY97A. You will have to do a complete new install.

Q: Are the dimensions of the Icom IC A220T radio different from the KY 97A? Can the A220T fit in the same space?

The KY 97A measures - 6.3 x 1.35 x 10.78 inches
The A220T measures - 6.3 x 1.34 x 10.67 inches
The A220T should fit in the same space without modifications.

Q: Will the IC-A220T fit in a IC-A200 tray?

Per Icom - yes, the A220 & A220T will fit into the A200 tray but will still need a new installation.

Q: Regarding the automatic squelch function on the Icom IC A220T transceiver: This is going in a BT-13 trainer. Is there a manual function?

Yes, the automatic squelch can be adjusted or disabled thru the volume adjustment knob.

Q: All that said, does the Icom A220T unit come with its own mounting tray?

Yes, this comes with the mounting tray, installation kit, and required hardware for installing the unit.

Q: Does the Icom IC-220T TSO Radio (part # 11-14551) come with an 8130 form?

No, this unit is FAA TSO approved, but does not include an 8130 in the box. You must request it at the time of order, additional fees will apply.

Q: What is the cost of the 8130 form?

When in the shopping cart, if you select an export country as the destination, the option to add 8130 will display.The current price of the 8130 export form will be shown there.

Q: Is the Icom IC A220T approved for installation in a Cessna 170B?

This unit has a TSO certification so it will require additional steps to certify the installation. Please contact your A&P or local aviation authority for clarification on authorization for installation in your aircraft.

Q: Does the length dimension of 10.7 inches include the protrusion of the connectors on the ic-a220t?

The length dimension does not include the connectors on the back.
