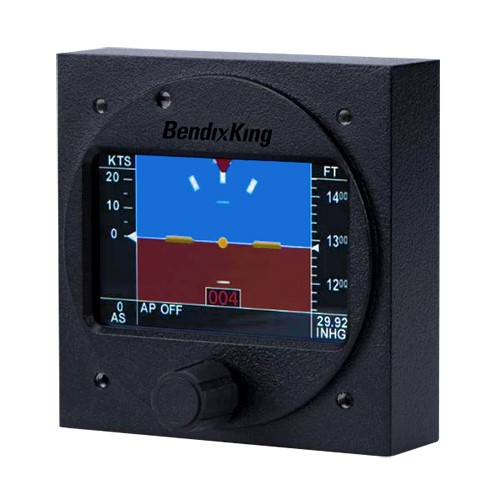

BendixKing xCruze 110 Digital Autopilot Control Head

Add to cart for current price
Add to Wishlist
Part# 11-17915
MFR Model# 8000-150


The xCruze 110 autopilot was created with both the VFR and IFR pilot in mind. The new emergency level mode was designed primarily for the VFR pilot that inadvertently finds himself in IMC. The operation of the altitude select and altitude preselect modes were designed to be extremely useable and useful in IFR flight, even to the extent that an altitude select can be entered and the vertical speed is easily adjusted to any desired value. This feature is extremely useful when initiating approaches or during step down approaches.

The main display of the xCruze 110 autopilot contains a PFD flight instrument. This consists of an attitude indicator, airspeed indicator, altimeter, VSI, slip/skid indicator, bank angle indicator, turn rate indicator, and a track slaved DG.

Note: This is the control head only. Must be used in conjunction with a complete xCruze autopilot system.
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -

Standard Features

  • Bank Angle Select (if no GPS signal)
  • Track Select
  • GPS Nav (point to point type flight plans)
  • GPSS (roll steering commands)
  • Vertical Speed Select
  • Altitude Hold
  • Altitude Select
  • Altitude Pre-Select
  • GPSV (LPV Approaches)
  • Control Wheel Steering
  • Emergency Level
  • AEP (Bank Angle Protection Mode)
  • Roll Servo
  • Pitch Servo
  • Install Kit
  • Wiring Harness


  • 3 Round: 3.25 H x 3.25 W x 5.5 D



Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is it possible to buy this as a complete set for installation on a Vans RV6a?

Yes, we have an upgrade part # that can be added when you purchase the RV6 Xcruze kit. Order part # 11-18056 and add the option part # 11-18757.

Q: The price is for the instrument only or does it comes with the servos? Can it be paired to the Garmin 696?

This is the 110 control head only. We sell the full its as well but part # 11-17915 is the upgrade control head only. No it cannot be paired to a 696.

Q: Can this head be used in a certified aircraft?

No, you will need to see the Aerocruze autopilots for certified aircraft.

Q: I have an original trutrak digitrak in my glasair can I interface the Cruze 110 to the servos already installed?

Yes this will work with the digitrak servos. If you have the digitrak (not the digitrak vs) you will need to remove the ltrak.

Q: Does xcruze 100 works with efis g5 and garmin 695?

No, this does not work with the 695/696.
