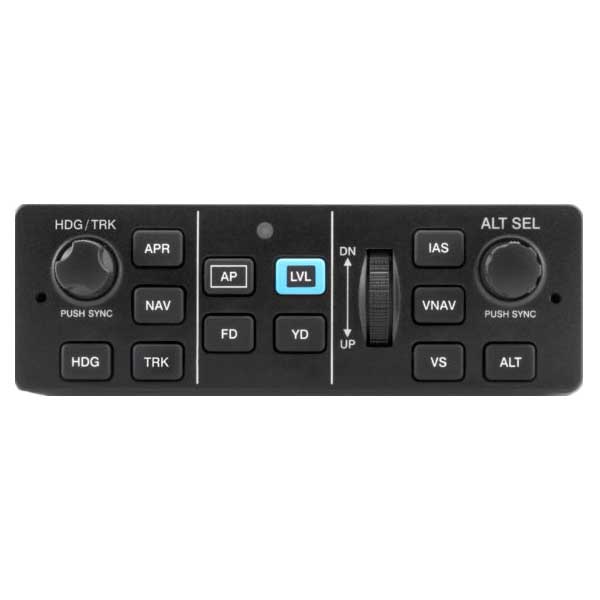

GARMIN GMC 507 AUTOPILOT CONTROL HEAD FOR G3X EXPERIMENTAL

$1099.00/Each
Add to cart for current price
Quantity
Add to Wishlist
Part# 11-16219
MFR Model# 010-01946-00

Overview

When installed with G3X Touch flight displays, the GMC 507 offers alternative, dedicated autopilot controls. While autopilot features can be selected using the touchscreen controls on G3X Touch flight displays, this unit allows for easier pitch, vertical speed and airspeed adjustments by using the control wheel. Additionally, separate knobs allow easy twist-control of heading/track and altitude. And for added safety, the controllerís dedicated LVL mode button commands automatic recovery from steep or unusual attitudes, prompting the autopilot to return the aircraft to straight-and-level flight.

An Advanced Autopilot Mode Controller for Your Airplane
  • Dedicated controller for advanced Garmin autopilot modes
  • CAN BUS Communication
  • GPS TRK Mode
  • Audio alerts for autopilot tones (disconnect)
  • Control wheel for speed selection
  • Dedicated heading/track and altitude knobs
  • LVL mode button commands automatic recovery from steep or unusual attitudes
  • Dedicated heading and track buttons
Note: G3X Touch system must be running software revision 5.70 or later
  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

Excellent product. Easy to install.

James G Verified Purchase

GARMIN GMC 507 AUTOPILOT MODE CONTROLLER EXPERIMENTAL

September 7, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the GMC 507 compatible with my Aspen? Will it work with my ancient Century III autopilot?

No, this is only intended for use with the Garmin G3X system in experimental aircraft.

Q: Is this Garmin GMC 507 autopilot control approved for use in the M20J?

No, this is intended for use in experimental aircraft only.

Q: What is the difference between the Garmin GMC 507 and the 307? Will this work with 2 G5s or do I have to have a G3X?

The GMC 507 uses canbus for communication and has an extra TRK feature. The GMC 307 uses RS232 for communication. If you are using 2 G5's, per the manufacturer the GMC 507 is preferred.

Q: What are the dimensions of the Garmin GMC 507 autopilot control head?

Dimensions are: 6.25W x 2.10 H x 2.61 D (158.8 x 53.3 x 66.3 mm)

Q: Will this work with the new Gamin GNX™ 375?

No, this controller is designed for use in a G3X system utilizing a can-bus.

Q: Can this be used in certified aircraft with a certified G3X Touch? Is there a complete kit or do all parts have to be ordered separately. If so, what all is needed for a complete install?

No, we can only sell this item for experimental aircraft only.

Q: Online garmin sells a certificated version of the 507. Can’t that be used for autopilot control of the G3x in a certificated plane?

There is an FAA Approved version of this, however, this version, part # 11-16219 is the experimental version and cannot be installed in certified aircraft.

Q: What else has to be purchased to install the 507 and servos?

This autopilot is meant to work with the G3X system and the GMC 507 allows for dedicated autopilot controls.

Q: Is there mounting hardware that must be purchased separately?

Yes, Per Manual G3X/G3X Touch Rev AL, Page 14-1: The connector Kit P/N 11-16220 is required to install the unit. Please note: This unit is intended for use with the Garmin G3X System.

Q: Is the GMC 507 can be used with high torque servo from Trutrak Autopilot?

Garmin has their own servos that are required per the installation manual.
