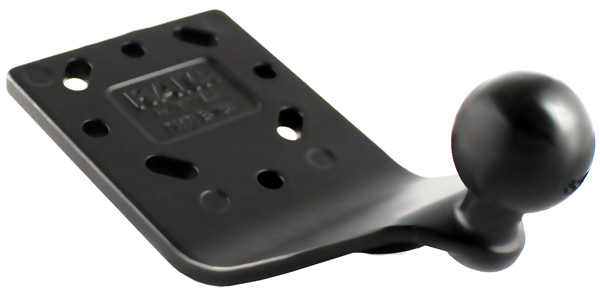

The RAM RAM-B-125BU, curved extension base includes a 1" rubber ball; it allows for almost infinite adjustment and perfect viewing angles. Originally designed to position your GPS in front of the yoke on your plane, the extension plate can also be used in many other applications. The mounting section of the plate is 2.5" square, predrilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles.
The connection section extends approximately 2.25" forward, at a 45 degree angle, from the center of the 1" ball and approximately 1.5'' above the 1" ball (to the bottom of the connection section of the plate).
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes. This mount is pre-drilled to be mounted horizontally or vertically.
